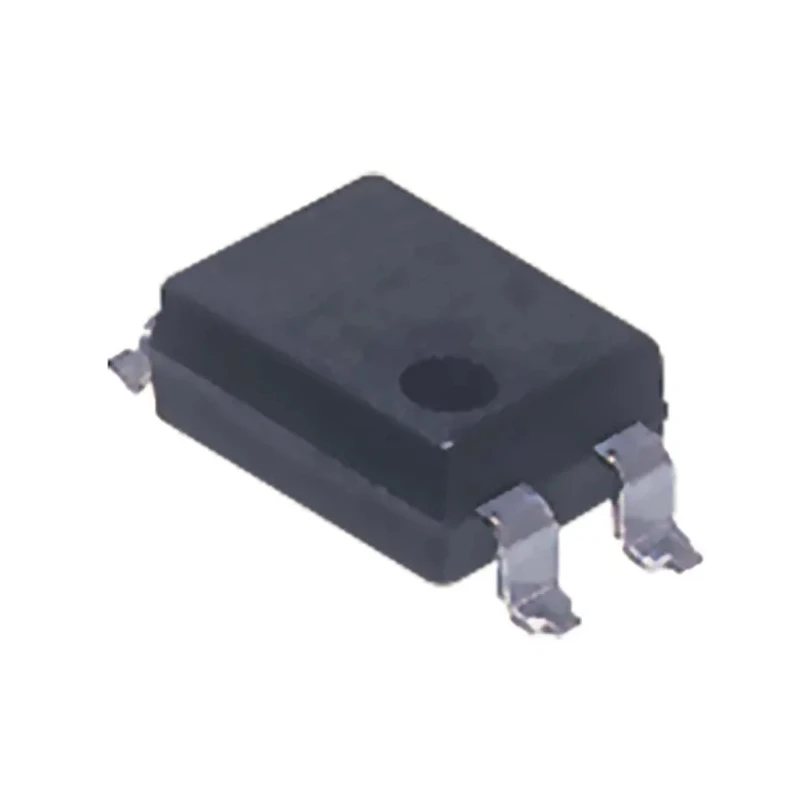

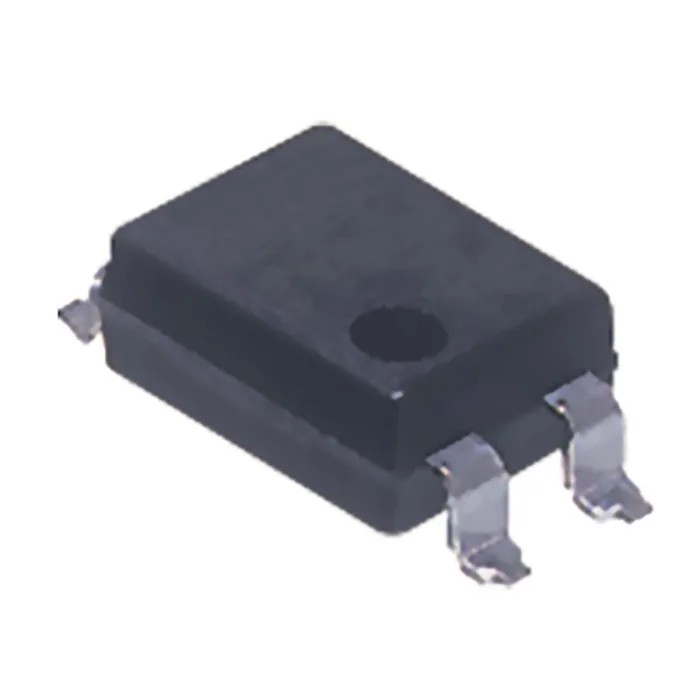

Panasonic PhotoMOS Series Solid State Relay, 3 A Load, Surface Mount, 30 V Load AQY211EHA

Panasonic AQY211EHA PhotoMOS Series Solid State Relay offers a compact and efficient solution for electrical switching applications requiring a 3 A load current and maximum 30 V load voltage. The surface mount relay features MOSFET output type and through-hole terminal configuration, suitable for various industrial automation, control, and signal conditioning uses.

This DIP4-pin type relay provides reinforced insulation of 5,000 V, assuring reliable operation in challenging environments. It controls low-level analogue signals with high sensitivity and maintains a low on-state resistance of 0.5 ohms, reducing power dissipation significantly.

Designed for durability, it works from -40°C up to 85°C, adapting well to industrial temperature ranges. Its minimal off-state leakage current of 1 μA and low capacitance of 1.5 pF enhance performance in sensitive circuits. The Panasonic PhotoMOS series supports AC/DC switching with SPST contact configuration, making it versatile across power management applications.

Its compact size (6.4 mm length, 4.78 mm width, 2.9 mm height) ensures easy integration onto circuit boards with surface mounting. This relay is RoHS compliant and manufactured in Thailand, maintaining high-quality standards expected in electronics manufacturing.

Common industrial, laboratory, HVAC, manufacturing, and electrical automation applications benefit from the reliable switching of the AQY211EHA. It is ideal for replacing mechanical relays where silent operation and long service life are critical.

PhotoMOS Series technology provides reliable switching performance. Reinforced insulation of 5000 volts ensures safety. Low on-state resistance minimizes heat generation. Wide operating temperature range from -40°C to +85°C.

Extremely low off-state leakage current supports efficient operation. Compact DIP4-pin surface mount package for easy PCB integration. AC/DC switching with SPST contact configuration. Suitable for industrial automation and control applications.

RoHS compliant and manufactured in Thailand. Discover more electronics components within the Solid State Relay category on EnvMart for trusted solutions and seamless procurement.
