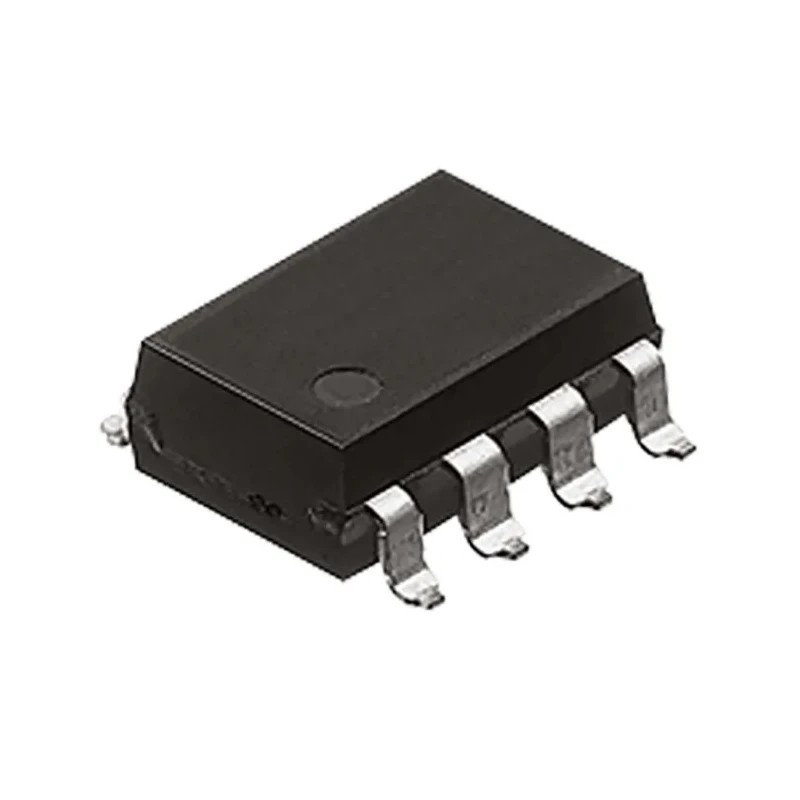

Panasonic PhotoMOS Series Solid State Relay Surface Mount 1.5 A Load 60 V Load AQW612EHA

Panasonic AQW612EHA PhotoMOS Series Solid State Relay is a surface mount device designed for precise and reliable switching with a maximum load current of 1.5 A and maximum load voltage of 60 V. This relay features a compact DIP8-pin package with reinforced insulation rated at 5,000 V, providing high safety and reliability in diverse industrial environments.

The relay incorporates both Normally Open (NO) and Normally Closed (NC) contacts, enabling versatile use cases including one Form A and one Form B configurations or independent use of these contacts. Its low on-state resistance of 2.5 ohms reduces power loss and heat generation, enhancing efficiency in automation and signaling applications.

The AQW612EHA supports AC and DC switching, with a low off-state leakage current of 10 microamperes, ensuring minimal standby power consumption. The device has a capacitance of 1.5 picofarads, which limits signal interference, making it suitable for low-level analog signals. Operating reliably within a temperature range of -40°C to 85°C, this relay is fit for industrial, automation, electrical, and electronic control systems.

Constructed with MOSFET output technology, it offers high sensitivity and fast response time, perfect for switching tasks in automotive, manufacturing equipment, and laboratory instrumentation.

Compact DIP8-pin design with reinforced insulation rated at 5,000 V for safety. Incorporates both Normally Open and Normally Closed contact configurations. Efficient switching with low on-state resistance of 2.5 ohms. AC/DC switching capability with minimal off-state leakage current.

Wide operating temperature range from -40°C to 85°C for various environments. Low capacitance of 1.5 pF for reduced signal interference in sensitive circuits. Reliable MOSFET output suitable for high-speed switching applications.

This Panasonic PhotoMOS relay is ideally suited for industrial automation, power control, electrical signaling, and electronic instrumentation applications. Its compact size and robust insulation make it an excellent choice for space-constrained designs requiring safety and efficiency.
