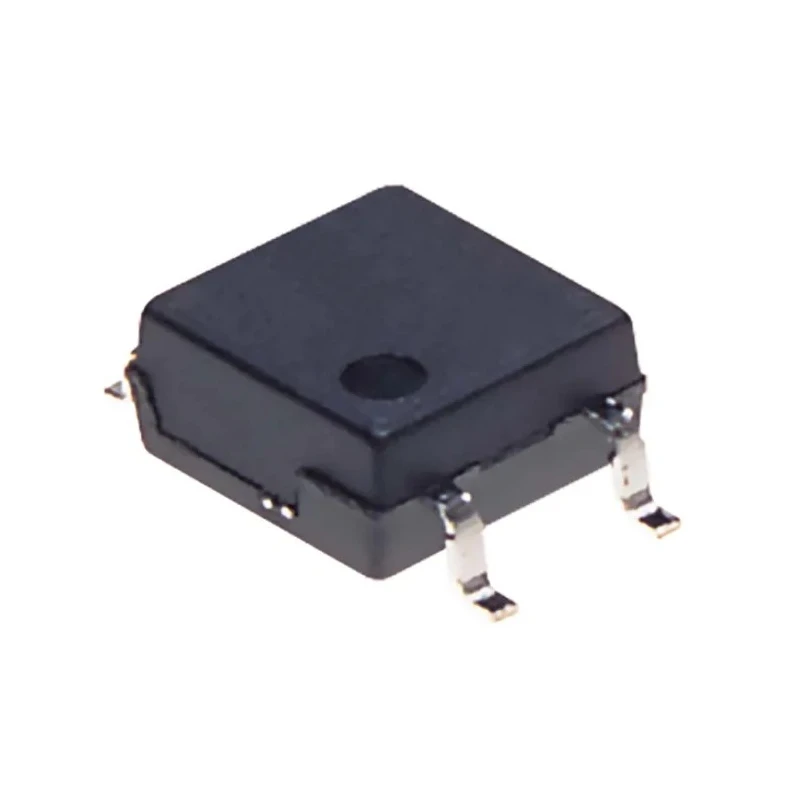

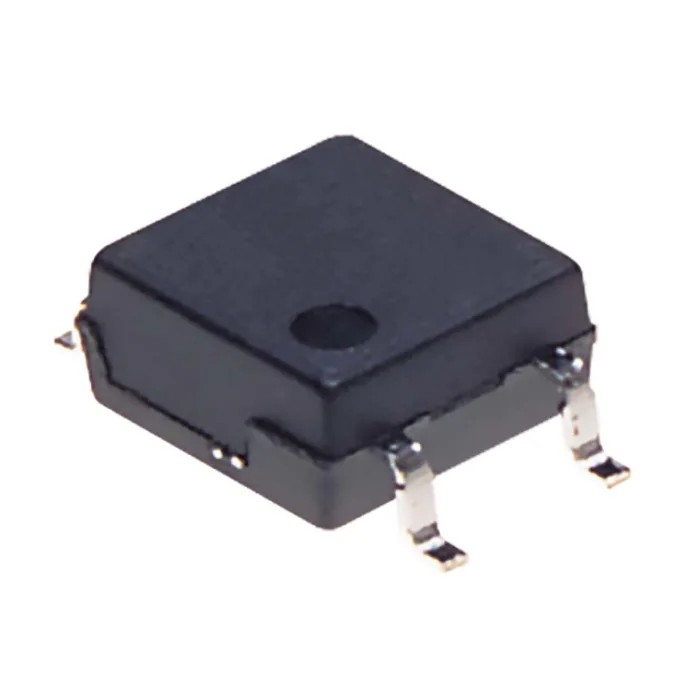

Panasonic PhotoMOS Series Solid State Relay, 0.12 A Load Current, Surface Mount, 350 V Load AQY210LS
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.1mm |
| Length | 4.4mm |
| Model | AQY210LS |
| Width | 4.3mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 0.12A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 350V |
| Minimum Load Voltage | 280V |
| Off State Leakage Current | 1μA |
| On State Resistance | 25Ω |
Key Features
- Supports maximum load voltage of 350 V.
- Features a compact miniature SOP4-pin surface mount package.
- Provides low-level analog signal control with low off-state leakage current.
- Includes current limiting function to enhance surge resistance between output terminals.
- Operates reliably within temperature range of -40°C to 85°C.
- Low on-state resistance of 25 ohms ensures efficient switching.
- Utilizes MOSFET output type for AC/DC switching applications.
- Complies with RoHS standards for environmental safety.
Product Description
Panasonic AQY210LS PhotoMOS Series Solid State Relay features a miniature SOP4-pin surface mount package designed to control low-level analog signals with a maximum load current of 0.12 A and maximum load voltage up to 350 V. This solid state relay includes a current limiting function that enhances the surge resistance capability between output terminals, making it suitable for precise and reliable switching in demanding electronic applications.
The relay operates with low off-state leakage current of 1 μA and low on-state resistance of 25 ohms, optimizing efficiency and minimizing power loss. It features a MOSFET type output enabling AC and DC switching functionality for versatile industrial and electronic control systems.
Designed to perform within an operating temperature range of -40°C to 85°C, this compact 4.4 mm length by 4.3 mm width and 2.1 mm height package meets RoHS environmental compliance standards, ensuring safe use in regulatory sensitive environments.
This relay is ideal for industrial automation, electronic control circuits, signal conditioning, and other critical applications requiring reliable solid state switching with low power dissipation and surge protection.
Maximum Load Current: 0.12 A. Maximum Load Voltage: 350 V. Mount Type: Surface Mount SOP4-pin package. On-State Resistance: 25 ohms. Operating Temperature: -40°C to 85°C. Output Type: MOSFET, AC/DC switching. Low Off-State Leakage Current: 1 μA.
Capacitance: 1.5 pF. Current Limiting for Surge Resistance. RoHS Compliant. Set yourself up for dependable electronic switching with the Panasonic AQY210LS solid state relay, engineered for precise, efficient, and safe signal control.
Explore a wide range of Solid State Relays and automation components at EnvMart to meet your industrial and electronic application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 0.12 A.
This solid state relay supports a maximum load voltage of 350 V.
It utilizes a MOSFET output type, allowing for AC and DC switching applications.
The dimensions of this unit are 4.4 mm in length, 4.3 mm in width, and 2.1 mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The on-state resistance is 25 ohms, ensuring efficient switching.
The off-state leakage current is 1 μA, which helps in minimizing power loss.
Yes, it complies with RoHS standards for environmental safety.
The capacitance of this model is 1.5 pF.
This relay features a surface mount SOP4-pin package.
It is suitable for industrial automation, electronic control circuits, and signal conditioning.
It includes a current limiting function that enhances surge resistance between output terminals.
