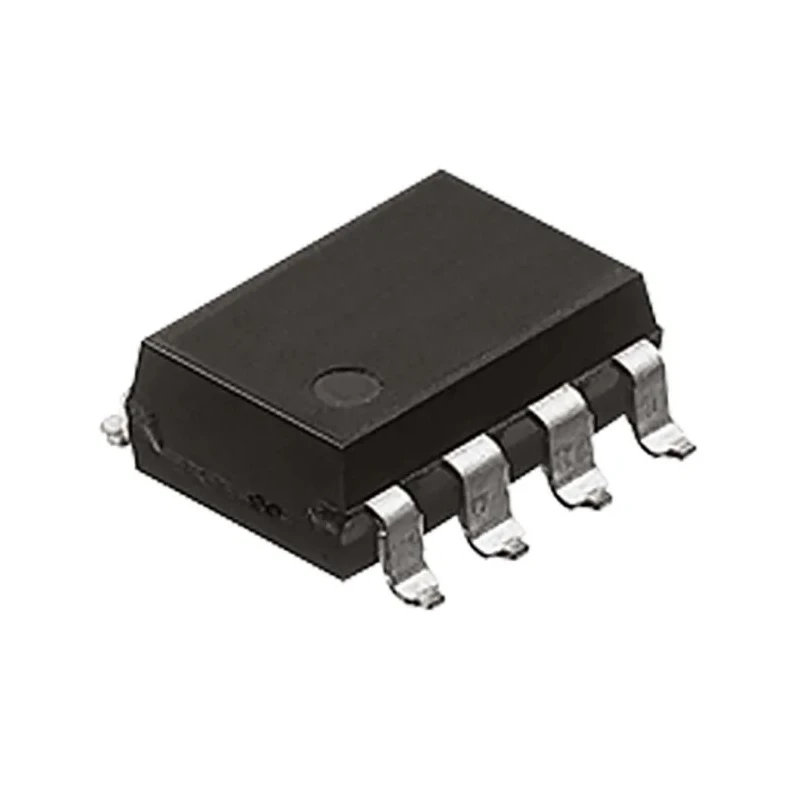

Panasonic PhotoMOS Series Solid State Relay Surface Mount 0.36 A Load 350 V Load AQW610EHA

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PhotoMOS Series Solid State Relay Surface Mount 0.36 A Load 350 V Load AQW610EHA

Name: Panasonic PhotoMOS Series Solid State Relay Surface Mount 0.36 A Load 350 V Load AQW610EHA
Brand: Panasonic
SKU: 320907
Price: 9.91 USD
Availability: InStock



Category Solid State Relay Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Brand	Panasonic
Model	AQW610EHA
Mount Type	Surface
Output type	MOSFET
Series	PhotoMOS
Maximum Operating Temperature	85°C
Contact Configuration	2SPNO
Capacitance	1.5pF
Minimum Operating Temperature	-40°C
Terminal type	Through Hole
Switching Function	AC/DC Switching
Maximum Load Current	0.36A
Standards/Approvals	RoHS
Maximum Load Voltage	350V
Minimum Load Voltage	280V
Off State Leakage Current	10μA
On State Resistance	25Ω

Key Features

High sensitivity and high speed response with MOSFET output type.
Reinforced insulation of 5,000 V ensures safety and durability.
Incorporates both Normally Open (NO) and Normally Closed (NC) contacts in a DIP8-pin package.
Compact design occupies approximately half the space compared to equivalent relay sets.
Suitable for low-level analog signal control in industrial and automation applications.
Low off-state leakage current of 10 microamperes reduces power loss.
Wide operating temperature range from -40°C to 85°C for reliability in harsh environments.
Capacitance of 1.5 picofarads minimizes signal interference.

Product Description

Panasonic AQW610EHA PhotoMOS Series Solid State Relay is a high-performance surface mount relay designed for controlling low-level analog signals with a maximum load current of 0.36 A and maximum load voltage of 350 V. This device features a DIP8-pin package with reinforced insulation rated at 5,000 V which ensures robust isolation and reliability for industrial, automation, and electrical applications.

Both Normally Open (NO) and Normally Closed (NC) contacts are incorporated into this model, allowing flexible configuration for diverse circuit designs. The compact form factor occupies approximately half the space compared to traditional sets with separate 1 Form A and 1 Form B relays, making it highly suitable for space-constrained assemblies.

The relay offers a low off-state leakage current of 10 microamperes and a capacitance of just 1.5 picofarads to enhance signal fidelity. An operating temperature range from -40°C to 85°C supports stable performance under varied environmental conditions. The MOSFET output type enables high speed response and high sensitivity switching for AC/DC loads.

Designed to meet RoHS standards, this solid state relay guarantees eco-friendly manufacturing practices and reduced hazardous substances. Produced in Japan under Panasonic's quality assurance protocols, it ensures longevity and consistent electrical performance.

High sensitivity and high speed response with MOSFET output type. Reinforced insulation of 5,000 V ensures safety and durability. Incorporates both NO and NC contacts for versatile circuit design. Compact size approximately half the space of equivalent relay sets.

Low off-state leakage current minimizes power loss. Wide operating temperature range from -40°C to 85°C. Low capacitance reduces signal interference. RoHS compliant for environmental safety. Manufactured in Japan for quality and reliability.

This Panasonic solid state relay is ideal for use in electronics, automation systems, industrial machinery, and HVAC control where precise and reliable switching of low-level signals is critical. Explore more from Panasonic and related products in the Solid State Relay category at EnvMart.
