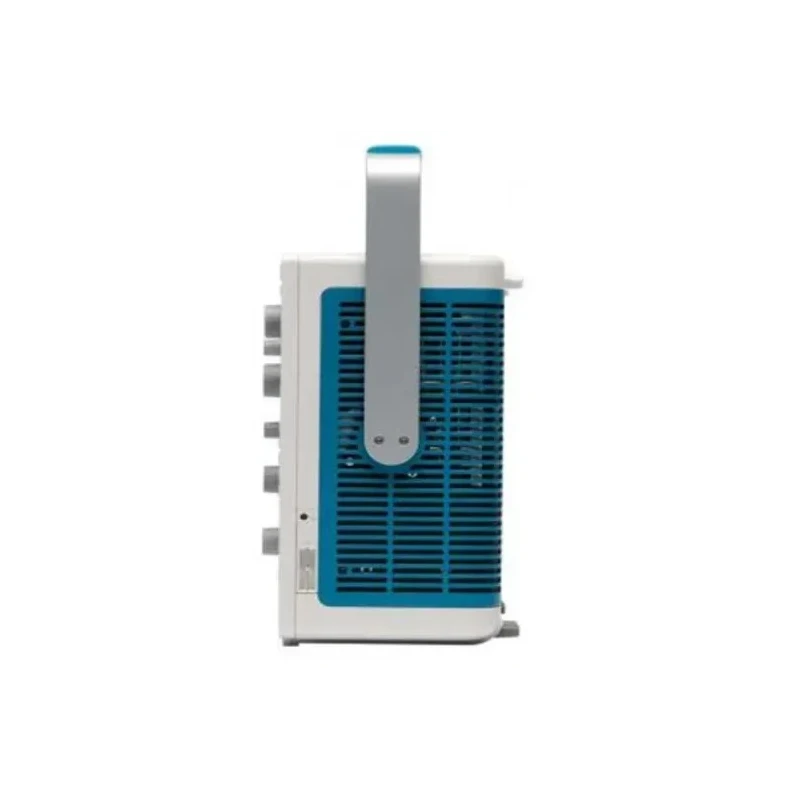

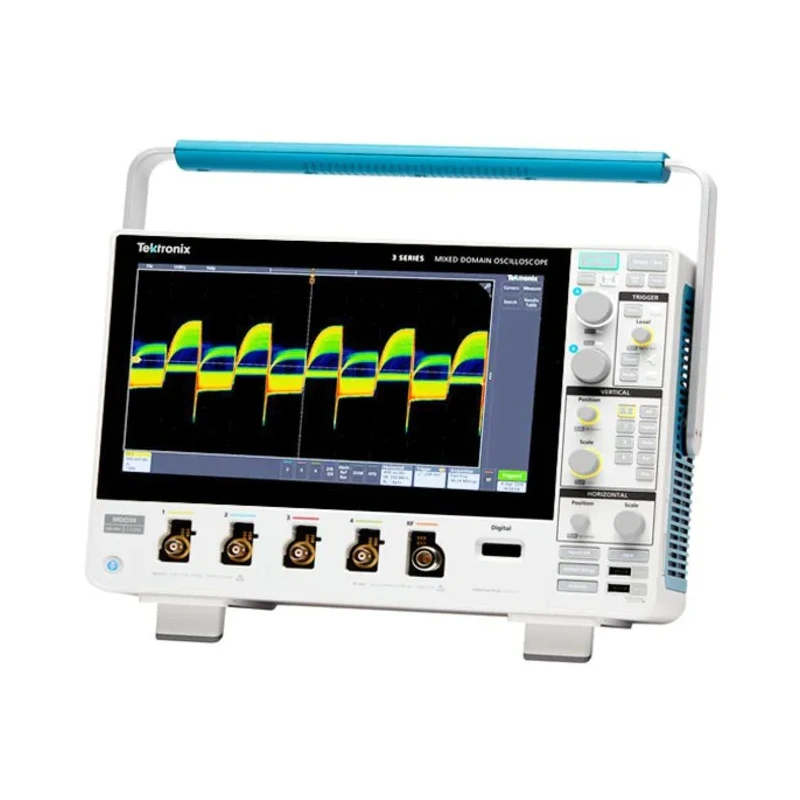

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope 200 MHz Bandwidth 16 Channels MDO32 3-BW-200

Tektronix MDO32 3-BW-200 is a 3 Series MDO Mixed Domain Bench Oscilloscope designed for precision testing with a 200 MHz bandwidth and 16 input channels. It incorporates the largest display in its class, an 11.6-inch HD colour capacitive touchscreen that allows pinch, tap, and swipe gestures for seamless interaction.

This oscilloscope offers improved low-level signal measurement accuracy by up to 40%, ensuring reliable and precise data acquisition for demanding test scenarios. With a memory depth of 10 Mpts and a sampling rate of up to 5 GS/s on each analog channel, it captures fast transient events accurately.

The device supports diverse serial bus interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, catering to a variety of communication protocols in embedded systems and automotive electronics.

Its waveform refresh rate of 280,000 per second aids in capturing elusive signal anomalies effectively. Users have access to more than 125 trigger combinations and dozens of automated measurements enhancing diagnostic capabilities.

Integrated with a 1 GHz spectrum analyser and offering upgrade options up to 3 GHz, plus options for 16 digital channels with MSO functionality, this oscilloscope adapts to various RF and mixed domain applications. Additional software supports power analysis, security testing, automotive diagnostics, and aerospace applications.

Ideal for industrial, laboratory, commercial, manufacturing, and educational environments where mixed domain signal analysis is critical. The oscilloscope ships with multiple accessories and probe options tailored for advanced testing needs.

Equipped with an 11.6-inch HD capacitive touchscreen for intuitive operation. Offers a memory depth of 10 Mpts for detailed waveform capture. Supports multiple interface types including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB.

Provides a waveform refresh rate of 280,000 per second enhancing signal clarity. Includes a built-in 1 GHz Spectrum Analyser and upgradable bandwidth options. Features advanced measurement capabilities with more than 125 trigger combinations.

Designed for industrial, laboratory, and manufacturing applications requiring mixed domain analysis. Browse the comprehensive selection of Oscilloscopes and test & measurement devices at EnvMart for professional and research-grade solutions.
