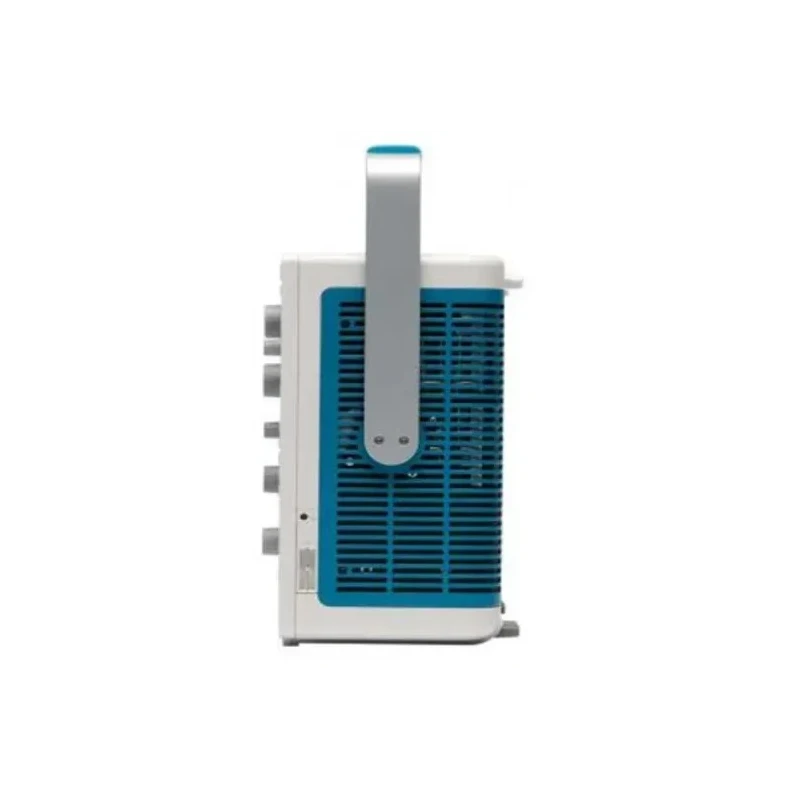

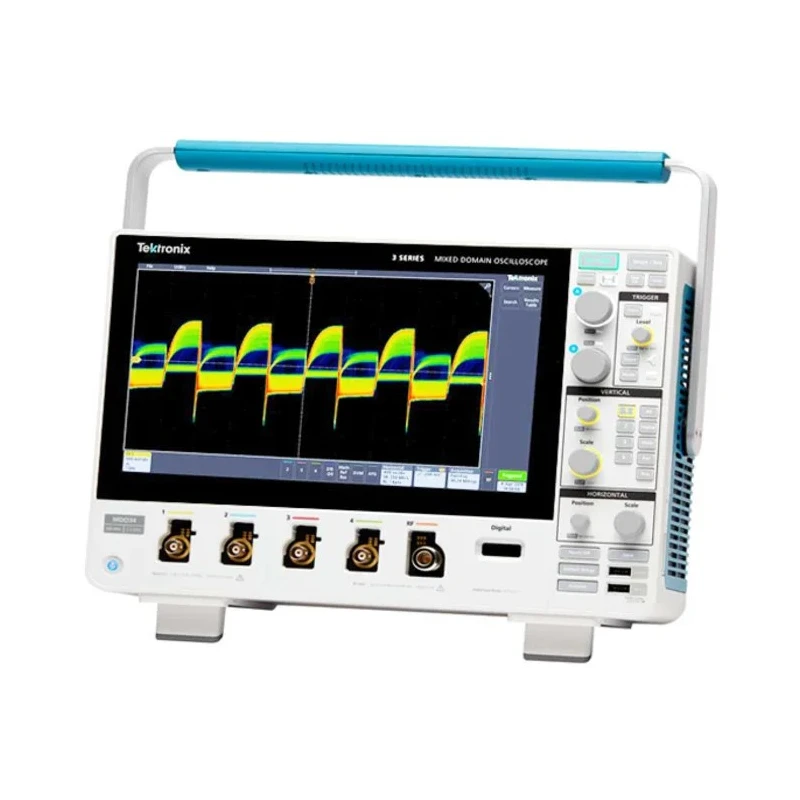

Tektronix 3 Series MDO Mixed Domain Bench Oscilloscope 200 MHz Bandwidth 16 Channels MDO34 3-BW-200

Tektronix MDO34 3-BW-200 is a high-performance Mixed Domain Bench Oscilloscope designed for industrial, laboratory, and commercial applications requiring precise signal analysis and diagnostics. It offers a 200 MHz bandwidth and 16 input channels for comprehensive testing scenarios. The 11.6-inch capacitive touchscreen display provides a user-friendly interface, supporting pinch, tap, and swipe gestures for easy navigation and control.

This oscilloscope supports a range of interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, making it versatile for communication protocol testing. It features a rapid waveform refresh rate of 280,000 per second and a memory depth of 10 Mpts for capturing detailed signal information.

The unit incorporates a built-in 1 GHz Spectrum Analyser, enabling RF and EMI testing within the same device. Low-level signal measurement accuracy is enhanced by up to 40%, ensuring reliable diagnostic results in IoT designs, automotive, aerospace, and other high-precision engineering fields. Rise time is 2 ns with vertical resolution of 8 bit, suitable for detailed waveform examination.

Additional capabilities include a DVM/Frequency counter available free upon registration and upgradeable software options such as arbitrary/function generator, spectrum analyser extension, digital channel expansion up to 16 channels with MSO functionality, and advanced application-specific analysis software for power, security, automotive and aerospace sectors.

Compact with dimensions 252mm height, 148.6mm width, and 148.6mm depth, and produced in China, this instrument is ideal for industrial manufacturing, quality assurance, research and development, educational laboratories, and field testing tasks.

Offers up to 200 MHz bandwidth suitable for a wide range of testing applications. Includes 16 channels allowing complex multi-signal testing. Equipped with an 11.6-inch HD TFT LCD touchscreen for intuitive operation. Provides low-level signal measurement accuracy improved by up to 40%.

Delivers waveform refresh rate of 280,000 per second for real-time analysis. Supports a versatile set of communication interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Mixed domain oscilloscope form combines analog and digital signal observation.

Maximum memory depth of 10 million points enhances data capture and detailed analysis. Includes built-in 1 GHz Spectrum Analyser and multiple upgrade options for advanced testing. Explore the range of Tektronix Oscilloscopes and measurement instruments on EnvMart for professional test and measurement solutions.
