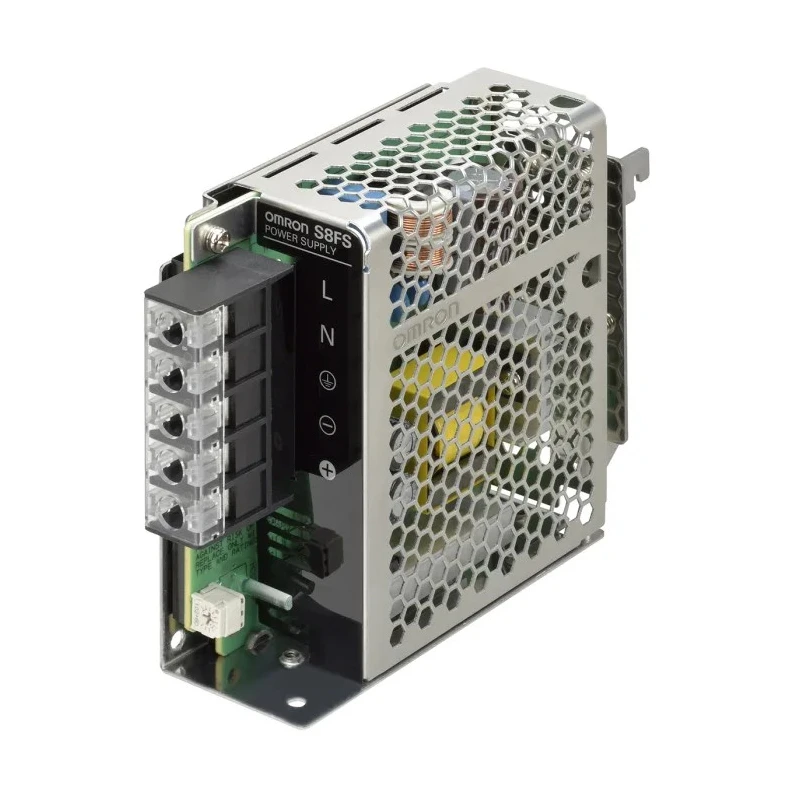

Omron S8FS-G Switched Mode DIN Rail Power Supply 264 V AC, 370 V DC Input, 12 V DC 8.5 A Output, 100 W

Free Delivery in India | Lowest Global Shipping Charges

Omron S8FS-G Switched Mode DIN Rail Power Supply 264 V AC, 370 V DC Input, 12 V DC 8.5 A Output, 100 W

Name: Omron S8FS-G Switched Mode DIN Rail Power Supply 264 V AC, 370 V DC Input, 12 V DC 8.5 A Output, 100 W
Brand: Omron
SKU: 318637
Price: 20.22 USD
Availability: InStock



Category DIN Rail Power Supplies Brand Omron Condition New

Specifications

Country of Origin	China
Brand	Omron
Power	100W
Efficiency	86%
Height	39mm
Model	S8FS-G
Depth	97mm
IP Rating	IP20
Width	167mm
Series	S8FS-G
Output Current	8.5A
Maximum Operating Temperature	70°C
Sub Type	Switched Mode
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264, 370V ac
Electrical Phase	1
Maximum Output Voltage	12V dc
Minimum Input Voltage	85, 120V ac

Key Features

Compact DIN rail mount design with dimensions 167 x 97 x 39 mm.
Wide input voltage range of 85-264 V AC and 120-370 V DC for diverse applications.
High energy efficiency of 86% reduces power loss and heat generation.
Output voltage adjustable from -10% to +15% for device compatibility.
Operates reliably in ambient temperatures from -20°C to 70°C.
Includes built-in overload and overtemperature protection for safety.
Compliant with CE, UL, CSA and multiple international safety standards.
IP20 rated enclosure suitable for industrial environments.

Product Description

Omron S8FS-G10012CD is a switched mode DIN rail power supply delivering 12 V DC output at 8.5 A and a power rating of 100 W. It features a compact and robust design measuring 167 mm width, 97 mm depth, and 39 mm height, making it suitable for space-constrained industrial panels.

This power supply accepts a wide input voltage range from 85 to 264 V AC and also supports DC input from 120 to 370 V DC, ensuring compatibility in various industrial power environments. It achieves a high energy efficiency of 86%, helping to minimize energy consumption and reduce thermal stress on connected components.

The output voltage adjustment range from -10% to +15% allows for flexible voltage fine-tuning to match specific device requirements. It is designed to operate reliably under ambient temperatures from -20°C to 70°C and includes built-in overload and overtemperature protection mechanisms to safeguard both the power supply and connected devices.

Certification to CE, UL, CSA, and other international standards like EN 50178, EN 55011 Class B, and TUV ensures compliance with rigorous safety and quality benchmarks. The IP20 rated enclosure protects against solid foreign objects and is optimized for industrial use.

Compact DIN rail mount with dimensions: 167 x 97 x 39 mm. Wide AC/DC input voltage range: 85-264 V AC / 120-370 V DC. High efficiency at 86% reduces energy loss. Output voltage adjustable between -10% and +15% of 12 V DC.

Operates in ambient temperatures from -20°C to 70°C. Overload and overtemperature protection ensures operational safety. Certified to global safety standards including CE, UL, and CSA. IP20 protection suitable for industrial environments.

Single 12 V DC output at 8.5 A rated for up to 100 W power.

This power supply is ideal for powering control systems and industrial automation equipment, offering reliable and efficient DC power conversion. Its rugged construction and compliance with safety standards make it suitable for demanding industrial, manufacturing, and electrical panel applications. Explore more quality power supplies and components in our Electronics & Electricals category at EnvMart.
