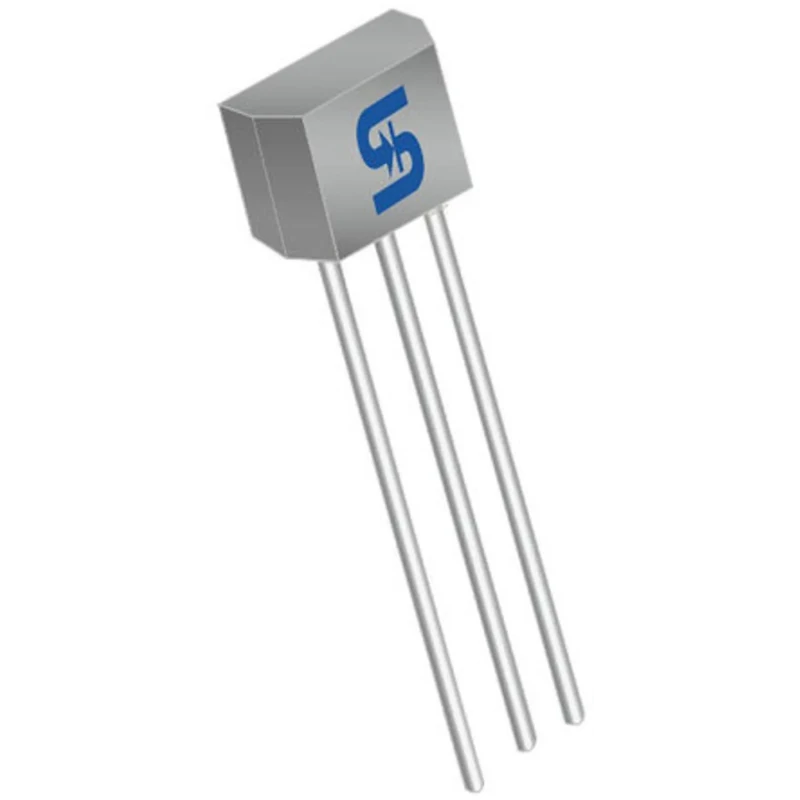

Taiwan Semiconductor Through Hole General Purpose Hall Effect Latch 3.5 V to 20 V TO-92S 3-Pin TSH181CT B0G
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 3mm |
| Length | 4mm |
| Model | TSH181CT B0G |
| Sensor Type | Hall Effect Sensors |
| Width | 1.52mm |
| Mount Type | Through Hole |
| Series | TSH181 |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92S |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 20V |
| Minimum Supply Voltage | 3.5V |
| Supply Current | 8mA |
| Magnetic Type | Bipolar |
Key Features
- Operates as a bipolar Hall Effect sensor switch with high sensitivity.
- Features a compact TO-92S package with three pins for easy through-hole mounting.
- Supports a wide operating voltage range from 3.5 V minimum to 20 V maximum.
- Designed for use in industrial, automotive, and consumer electronic applications requiring magnetic sensing.
- Operates reliably across a temperature range from -40°C to 125°C.
- Maximum supply current is 8 mA ensuring low power consumption.
- Compact dimensions with length 4 mm, height 3 mm, and width 1.52 mm for PCB space efficiency.
- Manufactured in Taiwan, Province Of China, assuring quality semiconductor standards.
Product Description
Taiwan Semiconductor TSH181CT B0G is a through-hole mounted, general purpose Hall Effect latch sensor designed for precise magnetic field detection. It operates within a supply voltage range of 3.5 V to 20 V, enabling versatile integration in various electronic circuits.
This Hall Effect latch utilizes bipolar magnetic sensing to switch output states based on magnetic field polarity. The device comes in a TO-92S package form factor with three pins, facilitating straightforward insertion and soldering on printed circuit boards.
The sensor is suitable for diverse industrial, automotive, and consumer electronic applications where reliable and sensitive magnetic field detection is needed. It maintains accurate operation within an extended temperature range from -40°C up to 125°C, ensuring durability in harsh environments.
Key physical dimensions include a length of 4 mm, height of 3 mm, and width of 1.52 mm, supporting compact and efficient PCB layout designs. The device's 8 mA supply current ensures minimal power usage, which is optimal for battery-powered and low-energy systems.
Operates as a bipolar Hall Effect sensor switch with high sensitivity. Features a compact TO-92S package with three pins for easy through-hole mounting. Supports a wide operating voltage range from 3.5 V minimum to 20 V maximum.
Designed for use in industrial, automotive, and consumer electronic applications requiring magnetic sensing. Operates reliably across a temperature range from -40°C to 125°C. Maximum supply current is 8 mA ensuring low power consumption.
Compact dimensions with length 4 mm, height 3 mm, and width 1.52 mm for PCB space efficiency. Manufactured in Taiwan, Province Of China, assuring quality semiconductor standards.
This sensor is ideal for applications in motion detection, speed sensing, proximity detection, and other magnetic field sensing tasks in electronics manufacturing, automotive electronics, automation, and HVAC control systems.
Explore more advanced Hall Effect Sensors and related semiconductor components in the Sensors and Semiconductor section of EnvMart for comprehensive industrial and commercial electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a wide operating voltage range from 3.5 V minimum to 20 V maximum.
The sensor has compact dimensions with a length of 4 mm, height of 3 mm, and width of 1.52 mm.
The maximum supply current is 8 mA, ensuring low power consumption.
It operates reliably across a temperature range from -40°C to 125°C.
This model features a through-hole mounting type, facilitating easy installation on printed circuit boards.
This Hall Effect latch sensor has a pin count of 3.
It is a Hall Effect sensor designed for precise magnetic field detection.
The sensor utilizes bipolar magnetic sensing to switch output states based on magnetic field polarity.
It is designed for industrial, automotive, and consumer electronic applications requiring magnetic sensing.
The TSH181CT B0G comes in a TO-92S package form factor.
It is manufactured in Taiwan, Province Of China, assuring quality semiconductor standards.
This sensor belongs to the TSH181 series.
