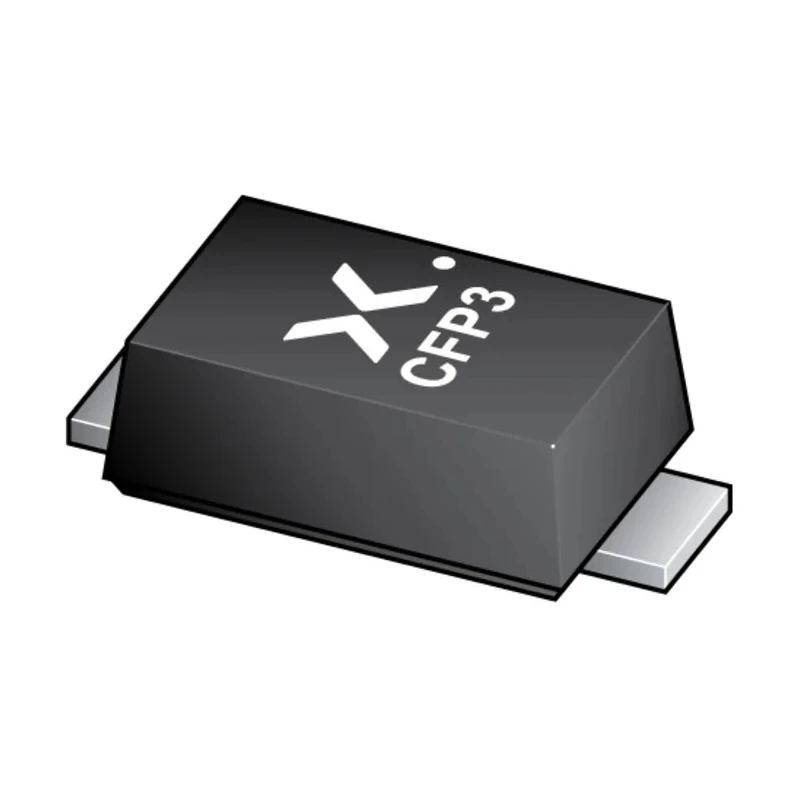

Nexperia 40 V 2 A Low VF MEGA Schottky Barrier Rectifier Diode 2-Pin SOD-123W PMEG4020ETR,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.8mm |
| Model | PMEG4020ETR,115 |
| Width | 1.9mm |
| Mount Type | Surface |
| Series | PMEG4020ETR |
| Maximum Operating Temperature | 175°C |
| Package Type | SOD-123W |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 15mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 490mV |
| Average forward current | IF(AV) ≤ 2 A |
| Reverse voltage | VR ≤ 40 V |
Key Features
- This diode provides high efficiency with a low forward voltage of 490 mV.
- The maximum continuous forward current rating is 2 A for reliable performance.
- It supports a peak reverse repetitive voltage of 40 V for robust operation.
- Features an automotive standard AEC-Q101 qualification for automotive applications.
- The compact SOD-123W surface mount package measures 2.8 mm length, 1.9 mm width, and 1.1 mm height.
- Designed for high temperature operation up to 175 °C and low power consumption settings.
- Peak non-repetitive forward surge current rating is 50 A ensuring circuit protection under surge conditions.
- Applications include DC-to-DC converters, switch mode power supplies, reverse polarity protection, and high efficiency rectification.
Product Description
Nexperia PMEG4020ETR,115 is a low forward voltage MEGA Schottky barrier rectifier diode capable of handling 2 A average forward current and withstanding up to 40 V reverse voltage. It is encapsulated in a small, flat lead 2-pin SOD-123W surface-mounted plastic package ideal for space-constrained PCB designs.
The diode features a low forward voltage of 490 mV, which reduces power loss and thermal dissipation, making it highly efficient for power conversion applications. The device is qualified per AEC-Q101 automotive standard ensuring reliability in automotive electronics under harsh conditions.
Its design incorporates a planar maximum efficiency general application MEGA Schottky barrier with an integrated guard ring for enhanced stress protection. The diode can safely operate within a temperature range of -55 °C to 175 °C and supports a peak non-repetitive forward surge current of 50 A.
This diode is well suited for applications such as high-frequency switching power supplies, DC-to-DC converters, reverse polarity protection, and other low voltage rectification needs requiring compact, efficient, and robust performance.
This diode provides high efficiency with a low forward voltage of 490 mV. The maximum continuous forward current rating is 2 A for reliable performance. It supports a peak reverse repetitive voltage of 40 V for robust operation.
Features an automotive standard AEC-Q101 qualification for automotive applications. The compact SOD-123W surface mount package measures 2.8 mm length, 1.9 mm width, and 1.1 mm height. Designed for high temperature operation up to 175 °C and low power consumption settings.
Peak non-repetitive forward surge current rating is 50 A ensuring circuit protection under surge conditions. Applications include DC-to-DC converters, switch mode power supplies, reverse polarity protection, and high efficiency rectification.
Ideal for industrial, automotive, laboratory, and commercial electronic circuit designs requiring reliable and efficient diode performance. Explore more components in Schottky Diodes & Rectifiers at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this model is 2 A.
It supports a peak reverse repetitive voltage of 40 V.
The maximum forward voltage drop is 490 mV.
The SOD-123W package measures 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height.
This diode can operate within a temperature range of -55 °C to 175 °C.
The peak non-repetitive forward surge current rating is 50 A.
Yes, it features an automotive standard AEC-Q101 qualification for automotive applications.
It is suitable for applications such as DC-to-DC converters, switch mode power supplies, and reverse polarity protection.
The diode configuration is single.
The peak reverse current rating is 15 mA.
This model is a Schottky barrier rectifier.
It uses a surface mount type for installation.
