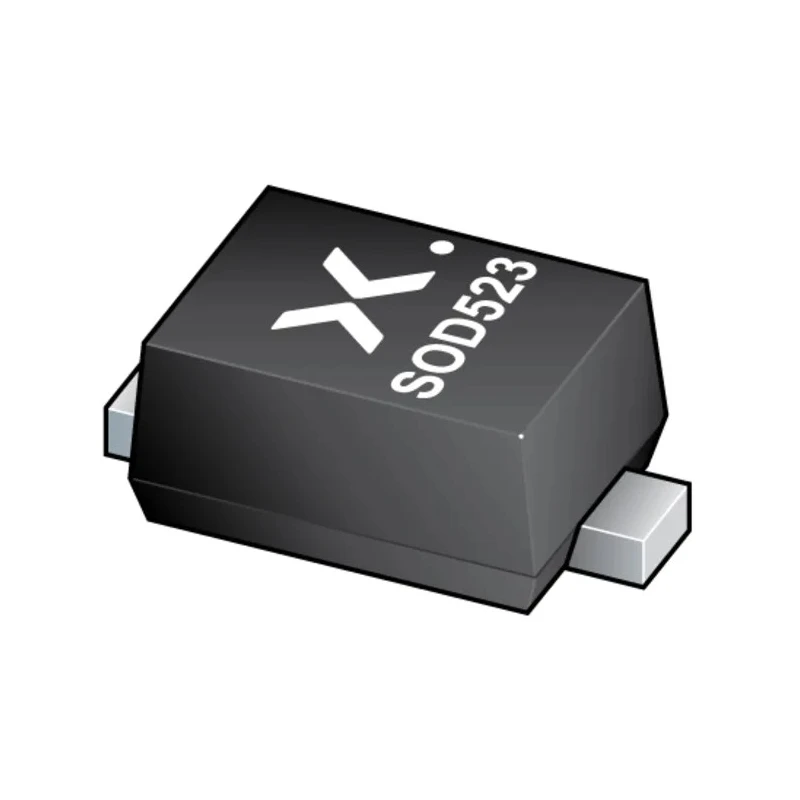

Nexperia Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package AEC-Q101 RB521S30,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package AEC-Q101 RB521S30,115

Name: Nexperia Schottky Diode 30 V 200 mA Surface Mount SOD-523 Package AEC-Q101 RB521S30,115
Brand: Nexperia
SKU: 318407
Price: 0.05 USD
Availability: InStock



Category Schottky Diode Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	0.65mm
Length	1.25mm
Model	RB521S30,115
Width	0.85mm
Mount Type	Surface
Series	RB521S30
Maximum Operating Temperature	150°C
Package Type	SOD-523
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	30μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Average forward current	IF(AV) ≤ 0.2 A
Reverse voltage	VR ≤ 30 V
Low reverse current	IR ≤ 30 uA
onsemi 30 V 200 mA Diode Schottky 2-Pin SOD-523 RB521S30T1GBrand	onsemi

Key Features

The diode features a maximum continuous forward current of 200 mA.
Peak repetitive reverse voltage rating is 30 V.
Low peak reverse current of 30 µA ensures minimal leakage.
Qualified to AEC-Q101 automotive standard for reliability.
Operates between -55°C to 150°C, suitable for harsh environments.
Comes in an ultra-small, flat lead SOD-523 surface-mount package ideal for compact designs.
Average forward current IF(AV) is up to 0.2 A optimized for DC-to-DC conversion efficiency.
Features an integrated guard ring for enhanced stress protection.

Product Description

The Nexperia RB521S30,115 is a Schottky diode designed for surface mounting applications, featuring a robust 30 V peak repetitive voltage and a 200 mA maximum continuous forward current. Packaged in an ultra-compact SOD-523 (SC-79) plastic case, this diode delivers excellent electrical performance and thermal reliability.

Its low forward voltage drop and minimal reverse leakage current make it especially efficient for power management applications including DC-to-DC converters, switch mode power supplies (SMPS), and reverse polarity protection. The diode is also qualified under the automotive IEC standard AEC-Q101, ensuring suitability for demanding automotive and industrial environments.

Key electrical parameters include a forward surge current of 1 A peak and a low reverse leakage current of 30 µA. Its operating temperature range from -55°C up to +150°C supports rugged embedding in industrial electronics and automotive circuits.

The small form factor of the SOD-523 package enables high-density PCB layouts for compact devices without sacrificing performance. An integrated guard ring provides enhanced stress protection against voltage spikes, enhancing durability and lifespan.

The diode's planar MEGA Schottky barrier technology ensures high efficiency and low power dissipation. Average forward current rating supports continuous operation up to 0.2 A with stable thermal characteristics. Designed for low power consumption applications and efficient switching in power supplies.

Typical applications include automotive electronics, industrial controls, and consumer electronic power circuits. Provides reverse polarity protection and low voltage drop rectification within compact electronic assemblies.

This diode is a reliable choice for engineers seeking a high-performance, miniature Schottky diode solution for both automotive and industrial electronic designs. The product supports standard mounting processes and is RoHS compliant.
