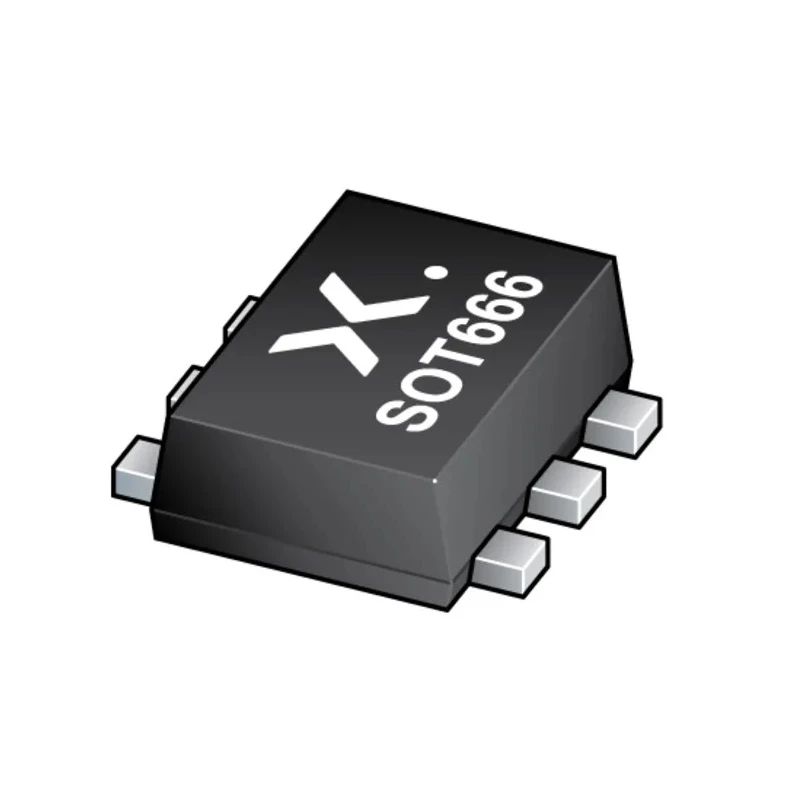

Nexperia Schottky Diode 70 V 70 mA Surface Mount SOT-666 Package AEC-Q101 BAS70VV,115
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.6mm |
| Length | 1.7mm |
| Model | BAS70VV,115 |
| Width | 1.3mm |
| Mount Type | Surface |
| Series | BAS70 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-666 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 70mA |
| Peak Reverse Repetitive Voltage Vrrm | 70V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 100A |
| Maximum Forward Voltage Vf | 1V |
Key Features
- Designed for maximum continuous forward current of 70 mA.
- Peak reverse repetitive voltage rating of 70 V.
- Features integrated guard ring providing stress protection.
- Complies with AEC-Q101 automotive standard for quality and reliability.
- Ultra-small, low-profile SOT-666 package dimensions enable space-saving PCB layouts.
- Low forward voltage drop and low capacitance for efficient power management.
- Suitable for reverse polarity protection and DC-to-DC conversion applications.
- Operates over a temperature range from -65°C to 150°C.
Product Description
Nexperia BAS70VV,115 is a general-purpose Schottky diode designed to deliver high efficiency and low forward voltage drop in compact surface mount applications. This diode is housed in an ultra-small SOT-666 package with dimensions 1.7 mm length, 1.3 mm width, and 0.6 mm height, making it ideal for space-constrained electronic designs.
The diode supports a maximum continuous forward current of 70 mA and a peak reverse repetitive voltage of 70 V, allowing it to protect circuits against reverse polarity and voltage spikes effectively. It incorporates an integrated guard ring which enhances stress protection and improves reliability under demanding operating conditions.
Qualified to the stringent AEC-Q101 automotive standard, the BAS70VV,115 diode is suitable for automotive and industrial applications requiring robust performance. Its low forward voltage and leakage current contribute to higher energy efficiency and reduced power loss in DC-to-DC converters and low-voltage rectification circuits.
The device performs reliably over a wide temperature range from -65°C to 150°C and can withstand a peak non-repetitive forward surge current up to 100 A, ensuring durability under transient current conditions. The two-pin, single diode configuration simplifies PCB layout and assembly.
Maximum continuous forward current: 70 mA. Peak reverse repetitive voltage: 70 V. Integrated guard ring for stress protection. Complies with AEC-Q101 automotive standard. Ultra-small SOT-666 surface mount package. Low forward voltage drop and capacitance.
Wide operating temperature range: -65°C to 150°C. Peak surge current: 100 A. Single diode, 2-pin configuration.
This Schottky diode is highly suitable for industrial electronics, automotive circuits, power management, DC-to-DC converters, and reverse polarity protection in various electronic devices. Explore EnvMart's comprehensive selection of Schottky Diodes for reliable and efficient semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the BAS70VV,115 Schottky diode is 70 mA.
This diode has a peak reverse repetitive voltage rating of 70 V.
The SOT-666 package dimensions are 1.7 mm in length, 1.3 mm in width, and 0.6 mm in height.
It operates over a temperature range from -65°C to 150°C.
Yes, it complies with the AEC-Q101 automotive standard for quality and reliability.
This model features a single diode, 2-pin configuration.
The peak non-repetitive forward surge current rating is up to 100 A.
The maximum forward voltage drop is 1 V.
It is suitable for applications such as reverse polarity protection, DC-to-DC conversion, and industrial electronics.
The peak reverse current is rated at 10 μA.
It features an integrated guard ring that provides stress protection, enhancing reliability under demanding conditions.
The country of origin for this diode is India.
