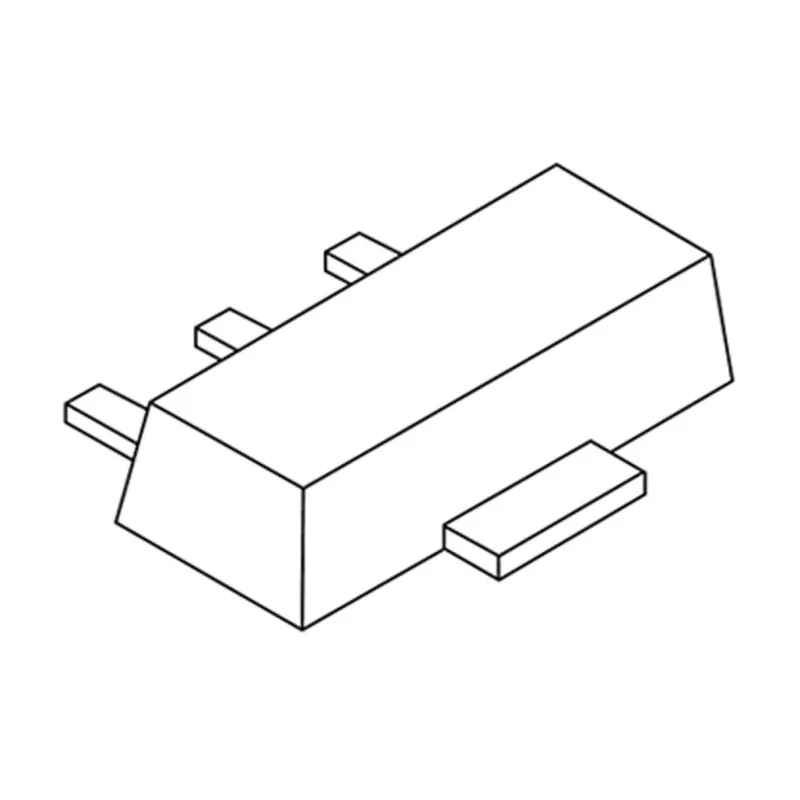

Nexperia General Purpose NPN Transistor 1 A, 80 V, 3-Pin SOT-89 BCX56-16,115

Nexperia BCX56-16,115 is a general purpose NPN Bipolar Transistor designed for reliable switching and amplification in electronic circuits. It supports a maximum DC collector current of 1 ampere and a collector-emitter voltage (Vceo) rating of 80 volts. Housed in a compact 3-pin SOT-89 surface mount package, it is suitable for space-constrained designs.

The transistor features a maximum power dissipation of 1.35 watts which allows effective heat management in operation. It exhibits a high collector base voltage (VCBO) maximum of 100 volts, enabling it to handle voltage stresses effectively. The minimum DC current gain (hFE) is 63, providing robust gain for amplification tasks.

Its maximum transition frequency (ft) of 180 MHz makes it suitable for mid to high frequency applications including switching regulators, automotive electronics, and general purpose amplifiers. The unit operates reliably at temperatures up to 150°C, meeting the requirements of challenging industrial and automotive environments.

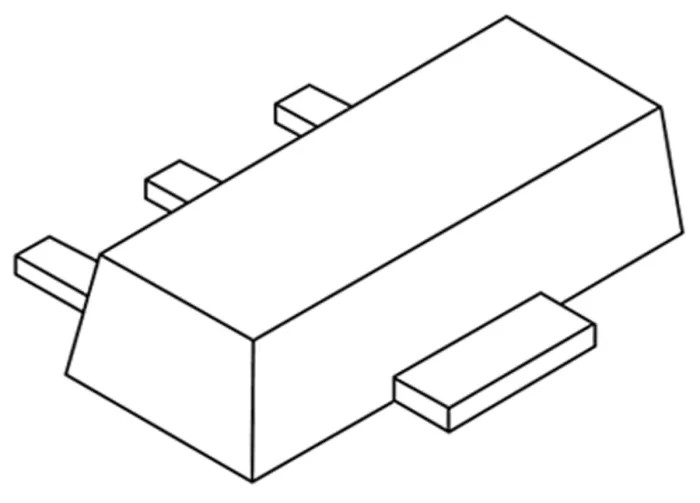

The SOT-89 package dimensions of 4.6 mm (length), 2.6 mm (width), and 1.6 mm (height) support surface mount technology assembly. Being compliant with the automotive AEC-Q101 standard, this transistor is qualified for automotive applications demanding stringent quality and reliability standards.

Maximum collector current of 1 A for moderate load handling. Collector-emitter voltage rating of 80 V ensures good voltage endurance. SOT-89 3-pin surface mount package for compact PCB designs. High gain and transition frequency for versatile amplification and switching.

AEC-Q101 automotive standard certification enhances robustness. Operating temperature up to 150°C supports harsh environment use.

These features make the Nexperia BCX56-16,115 transistor suitable for industrial, automotive, and general electronics applications. It is an ideal component in circuits requiring efficient switching, amplification, and reliable performance under thermal and electrical stress. Explore similar semiconductor components at EnvMart for your design and manufacturing needs.
