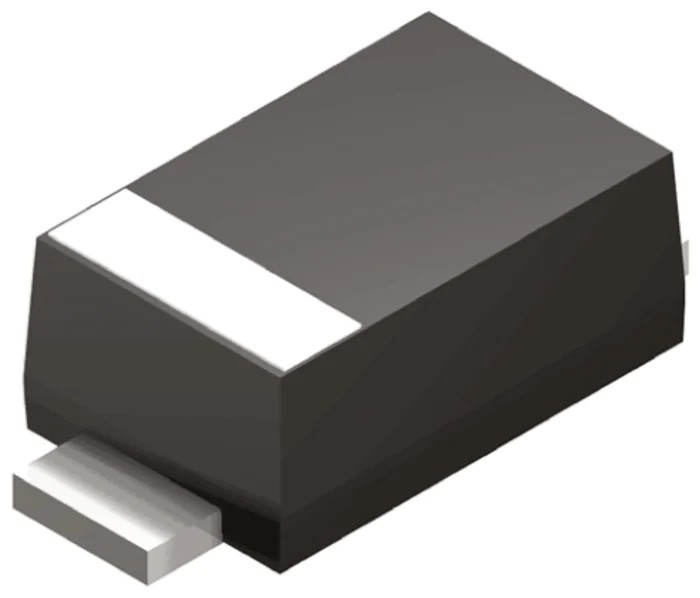

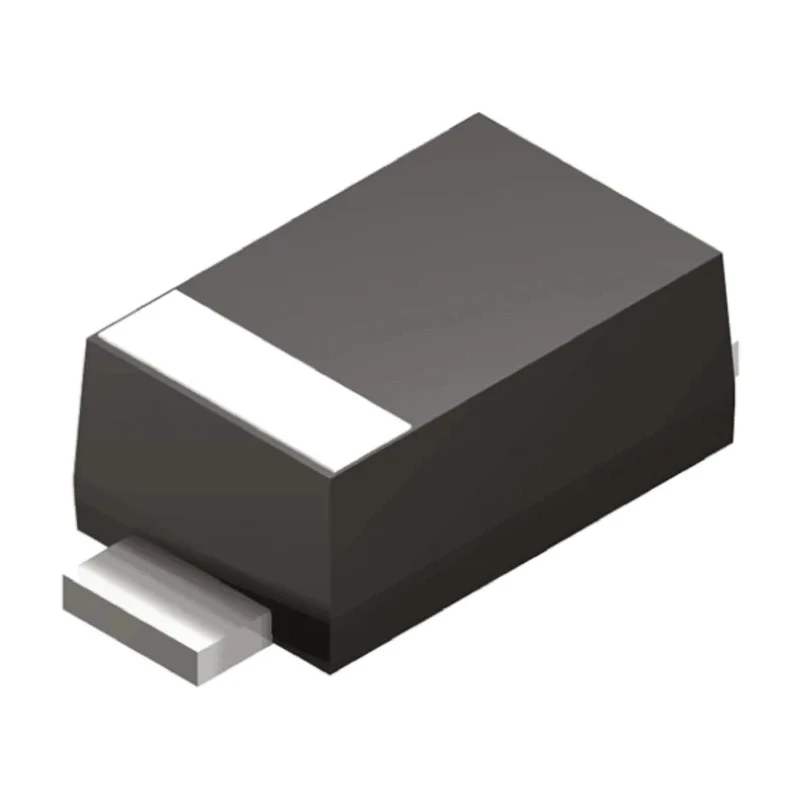

Nexperia Schottky Diode 40 V 2 A Surface Mount 2-Pin SOD-123 PMEG4020ER,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Schottky Diode 40 V 2 A Surface Mount 2-Pin SOD-123 PMEG4020ER,115

Name: Nexperia Schottky Diode 40 V 2 A Surface Mount 2-Pin SOD-123 PMEG4020ER,115
Brand: Nexperia
SKU: 315026
Price: 11.82 INR
Availability: InStock



Category Semiconductor Diode Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	2.8mm
Model	PMEG4020ER,115
Width	1.9mm
Mount Type	Surface
Series	PMEG4020ER
Maximum Operating Temperature	150°C
Package Type	SOD-123
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	2A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	100μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	490mV

Key Features

Maximum continuous forward current is 2 A.
Peak reverse repetitive voltage of 40 V ensures robust reverse voltage performance.
Low forward voltage of 490 mV reduces power loss and heating.
Compact SOD-123 package with dimensions 2.8 mm length, 1.9 mm width, and 1.1 mm height.
Wide operating temperature range from -55°C to 150°C supports harsh environments.
Low leakage current of 100 μA minimizes energy losses during standby.
Peak non-repetitive forward surge current rating of 50 A allows handling surge conditions.
Automotive grade certification with AEC-Q101 standard compliance.

Product Description

Nexperia PMEG4020ER,115 is a surface-mount Schottky diode designed with a 2-pin SOD-123 package optimized for power applications requiring high efficiency and low voltage drop. Rated for a maximum continuous forward current of 2 A and a peak reverse repetitive voltage of 40 V, this diode offers reliable performance in compact and automotive electronic circuits.

With an ultra-small form factor, measuring 2.8 mm in length, 1.9 mm in width, and 1.1 mm in height, it supports space-saving PCB layouts. The diode has a low forward voltage of just 490 mV, improving power efficiency and reducing heat dissipation in high frequency switching circuits.

Its operating temperature range from -55°C to 150°C enables use in harsh automotive and industrial environments. The device also supports a peak non-repetitive forward surge current of 50 A, making it resilient to transient surges. Leakage current is minimal at 100 μA, which contributes to better energy conservation.

Certified to AEC-Q101 automotive standard, this Schottky diode is suitable for high efficiency rectification in power supplies, voltage clamping, reverse polarity protection, and freewheeling diode applications.

Manufactured in Malaysia, the PMEG4020ER,115 exemplifies quality semiconductor reliability. Its outstanding electrical characteristics make it essential for engineers designing automotive, industrial, and general electronics applications requiring a compact and efficient diode solution.

Maximum continuous forward current is 2 A. Peak reverse voltage rating of 40 V for robust operation. Low forward voltage of 490 mV reduces power loss. Compact SOD-123 surface mount package for space saving design. Wide operating temperature from -55°C to 150°C for harsh environments.

Low leakage current at 100 μA conserves energy in standby. Peak surge current rating of 50 A handles transient conditions. Automotive AEC-Q101 standard compliant for reliability. Ideal for power supply rectification and protection circuits.

Manufactured in Malaysia ensuring high quality. Explore more semiconductor components and diode solutions at EnvMart for industrial, automotive, and electronic manufacturing applications.
