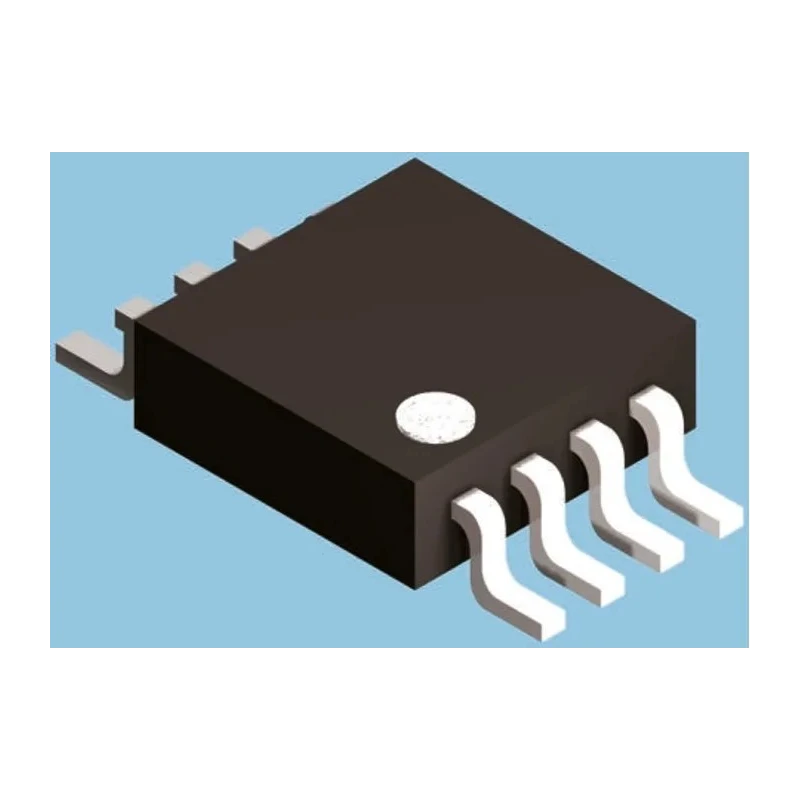

Nisshinbo Micro Devices Audio Amplifier IC 1W Output Power Surface Mount 8-Pin VSP Package NJU7084R-TE1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nisshinbo Micro Devices |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | NJU7084R-TE1 |
| Width | 2.8mm |
| Output Power | 1W |
| Mount Type | Surface |
| Series | NJM7084 |
| Maximum Operating Temperature | 85°C |
| Package Type | VSP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Amplifier Type | Audio |
| Amplifier Class | Class A-B |
Key Features
- The amplifier is designed for single channel audio applications requiring efficient audio power output.
- Minimum supply voltage is 3V, with a maximum voltage rating of 5.5V, suitable for low voltage circuits.
- Operating temperature ranges from -40°C to a maximum of 85°C ensuring reliability in various environments.
- The compact dimensions of 2.9mm length, 2.8mm width, and 1.1mm height support space-constrained PCB designs.
- The device is a Class A-B amplifier, offering good audio fidelity with efficient power use.
- Product features surface mount VSP packaging with 8 pins for ease of assembly and integration.
- No automotive standard compliance is provided, so it is recommended for general electronic applications.
- Designed primarily for speaker audio power amplification with well-balanced performance.
Product Description
Nisshinbo Micro Devices NJU7084R-TE1 is a high-performance Audio Amplifier IC featuring 1W output power and designed for single channel audio amplification. It is packaged in a compact surface mount 8-pin VSP form factor ideal for modern PCB assembly and small electronics applications.
The amplifier operates within a supply voltage range of 3V to 5.5V and supports a wide operating temperature range from -40°C to 85°C, making it suitable for various environmental conditions. It uses a Class A-B amplifier design providing an optimal balance between audio fidelity and power efficiency.
The tiny footprint, with dimensions length 2.9mm, width 2.8mm, and height 1.1mm, ensures easy integration even in compact electronic devices. It is primarily targeted at speaker amplification tasks for consumer audio and electronic devices.
No automotive standards are adhered to, indicating usage primarily in conventional audio electronics rather than automotive industries. The amplifier supports single channel operation with 8-pin VSP package type. The device is temperature qualified down to -40°C and up to 85°C for robust field performance.
Its low voltage operation down to 3V allows it to be used in portable or battery-powered devices. Package design facilitates efficient surface mounting and automated assembly processes. It is suited for audio amplification duties in industrial, laboratory, and consumer electronic scenarios.
The device complements power and connector semiconductor portfolios with audio amplification specialization.
Choose Nisshinbo Micro Devices NJU7084R-TE1 for reliable and efficient audio amplification needs in small form factor devices. Explore more precision Audio Amplifier ICs and electronic components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NJU7084R-TE1 amplifier has an output power of 1W, making it suitable for single channel audio applications.
This model operates within a supply voltage range of 3V to 5.5V, allowing it to be used in low voltage circuits.
The amplifier has compact dimensions of 2.9mm in length, 2.8mm in width, and 1.1mm in height, which is ideal for space-constrained PCB designs.
It is packaged in an 8-pin VSP surface mount format, facilitating easy assembly and integration into electronic devices.
The operating temperature range for the NJU7084R-TE1 is from -40°C to 85°C, ensuring reliability in various environmental conditions.
This model is a Class A-B amplifier, which provides a balance between audio fidelity and power efficiency.
The NJU7084R-TE1 supports single channel operation, making it suitable for basic audio amplification tasks.
No, the NJU7084R-TE1 does not adhere to automotive standards and is recommended for general electronic applications instead.
This audio amplifier is primarily designed for speaker audio power amplification in consumer electronic devices and other general electronic applications.
The NJU7084R-TE1 has a pin count of 8, which is standard for its surface mount design.
The NJU7084R-TE1 is manufactured in India.
This amplifier belongs to the NJM7084 series, which includes various audio amplifier ICs.
