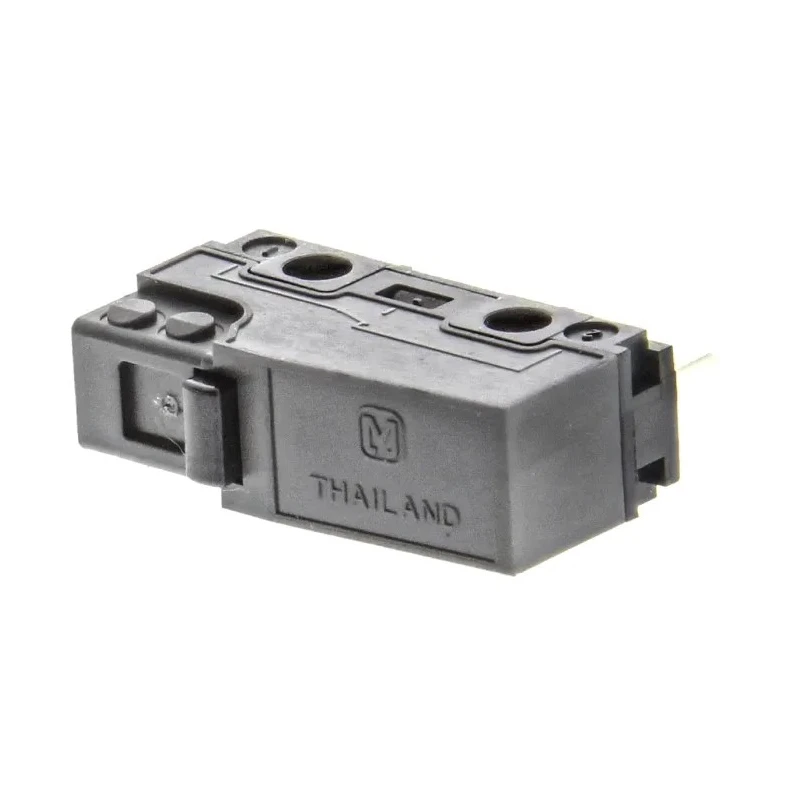

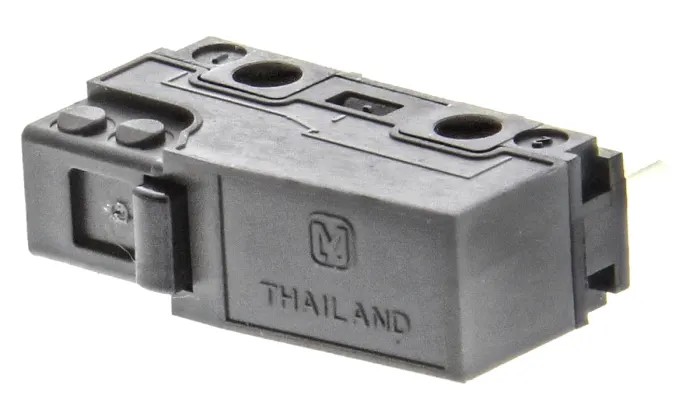

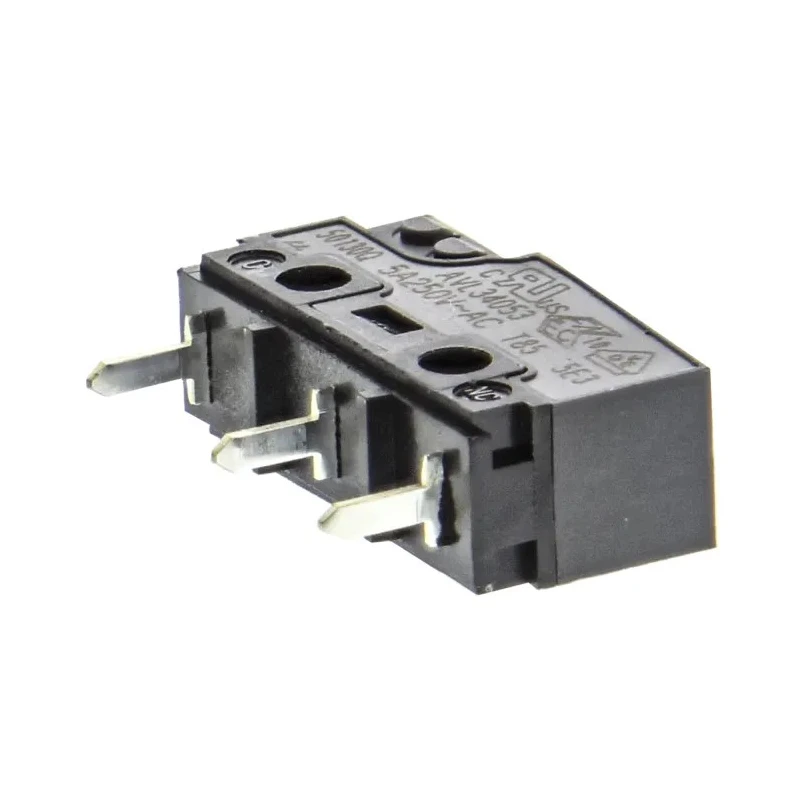

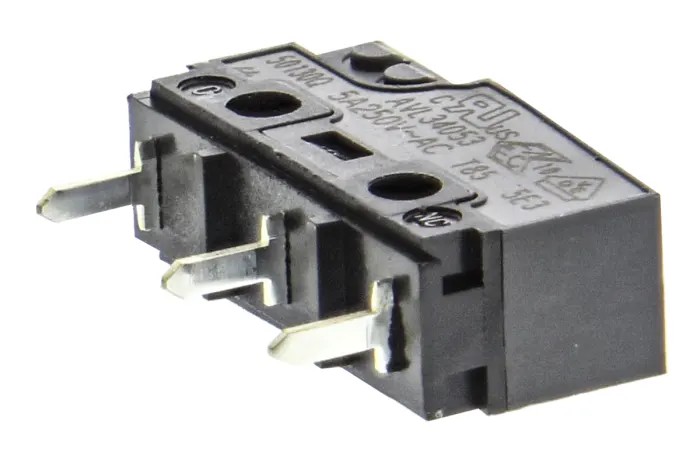

Panasonic Pin Plunger Micro Switch PCB Terminal 5A 250 V ac SPCO AVL34053-A
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Model | AVL34053-A |
| Series | AVL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPCO |
| Actuator Type | Pin Plunger |
| Minimum Operating Temperature | -25°C |
| Terminal type | PCB Terminal |
| Standards/Approvals | VDE, UL, SEMKO, RoHS, CSA |
| Switch Contact Current | 5A |
| Operating Force | 1.47N |
| Mechanical Life | 10Operations |
| Contact AC Voltage | 250V ac |
| Microswitch Type | Subminiature |
| Panasonic Pin Plunger Microswitch, PCB Terminal, 5 A @ 250 V ac, SPDTBrand | Panasonic |
Key Features
- Operates with a pin plunger actuator type for responsive switching.
- Features a single-pole changeover (SPCO) contact configuration.
- Rated for a contact current capacity of 5 amperes and an AC voltage of 250 volts.
- Subminiature type micro switch built for high precision and flux resistance.
- Withstands operating temperatures from -25°C up to 85°C.
- Requires an operating force of 1.47 newtons for actuation.
- Provides a long mechanical life with 10 million operations.
- Certified to standards including VDE, UL, SEMKO, RoHS, and CSA for compliance and safety.
Product Description
Panasonic AVL34053-A Pin Plunger Micro Switch PCB Terminal is a subminiature, high precision switch designed to operate reliably in industrial and electronics applications. It features a pin plunger actuator type with integrally moulded PCB terminals ensuring robust connectivity.
This Micro Switch supports a contact current rating of 5 amperes at 250 V ac with a SPCO contact configuration, making it suitable for switching electrical loads in various control and automation systems.
The device operates within a temperature range of -25°C to 85°C, suited for ambient and industrial conditions. It requires an operating force of 1.47 N, ensuring precise actuation without undue strain.
Manufactured in Thailand under the AVL series, this switch offers a long mechanical lifespan of 10 million operations, alongside a durable electrical life optimized based on the contact material used. It comes with certifications from VDE, UL, SEMKO, RoHS, and CSA, meeting global quality and safety standards.
Common uses include integration in communication equipment, vending machines, security systems, data handling systems, and medical equipment, where reliability and precision switching are critical.
Operates with a pin plunger actuator for precise contact engagement. PCB terminal style ensures ease of mounting on printed circuit boards. Long operational life supports maintenance-free use. Flux resistant construction improves durability in challenging environments.
Subminiature size fits compact electronics and automated systems. Complies with international safety and quality standards. Compact design enables space saving in electronic assemblies. Explore more quality switches and components in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The micro switch has a contact current rating of 5 amperes.
It can handle an AC voltage of up to 250 volts.
This model uses a pin plunger actuator type for precise contact engagement.
The operating temperature range is from -25°C to 85°C.
It requires an operating force of 1.47 newtons for actuation.
The mechanical life is rated for 10 million operations.
It is certified to VDE, UL, SEMKO, RoHS, and CSA standards.
This model features PCB terminals for ease of mounting on printed circuit boards.
It is manufactured in Thailand.
This switch is suitable for use in communication equipment, vending machines, security systems, data handling systems, and medical equipment.
The contact configuration is single-pole changeover (SPCO).
This micro switch belongs to the AVL series.
