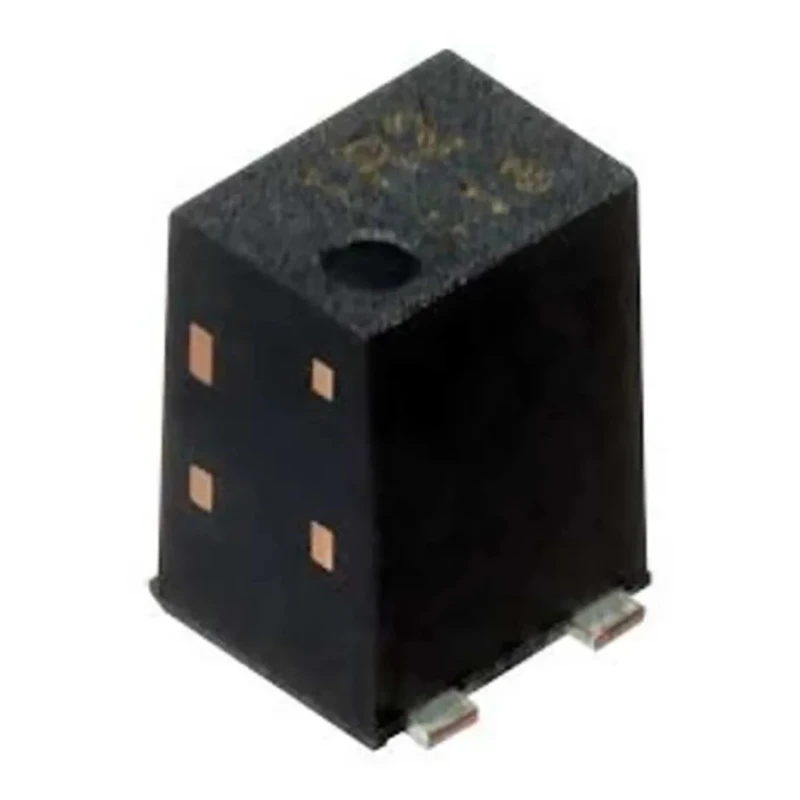

Panasonic PhotoMOS Series Solid State Relay, 1.5 A Load Current, 30 V Load Voltage, Surface Mount AQY221R6T
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 2.9mm |
| Length | 2.1mm |
| Model | AQY221R6T |
| Width | 1.8mm |
| Mount Type | Surface |
| Output type | MOSFET |
| Series | PhotoMOS |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Capacitance | 1.5pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Through Hole |
| Switching Function | AC/DC Switching |
| Maximum Load Current | 1.5A |
| Standards/Approvals | RoHS |
| Maximum Load Voltage | 30V |
| Minimum Load Voltage | 15V |
| Off State Leakage Current | 10nA |
| On State Resistance | 0.35Ω |
| The Panasonic VSSOP type with C x R10 | 30 V/40 V load voltage |
Key Features
- Surface mount type suitable for compact installations.
- SPST contact configuration for single-pole single-throw switching.
- Low on state resistance of 0.35 ohms ensuring efficiency.
- Wide operating temperature range from -40°C to 85°C.
- MOSFET output type for AC/DC switching functionality.
- Compact dimensions of 2.1 mm length, 1.8 mm width, and 2.9 mm height.
- Low off state leakage current of 10 nA enhances performance.
- Capacitance of 1.5 pF reduces signal interference.
Product Description
Panasonic AQY221R6T Solid State Relay is a high-quality component designed for reliable switching applications in industrial, electronic, and telecommunication equipment. Featuring a maximum load current of 1.5 A and a maximum load voltage of 30 V, it supports a wide range of AC/DC switching needs with MOSFET output type technology.
The device adopts a surface mount configuration with through-hole terminals, allowing for secure and compact assembly on PCBs. Its SPST contact configuration provides efficient single-pole single-throw switching suitable for various control circuits.
With an on state resistance of only 0.35 ohms, the relay minimizes power loss during operation. The component operates effectively between -40°C and 85°C, making it suitable for demanding environments including industrial automation, measurement, testing equipment such as IC testers, probe cards, and board testers as well as telecommunications.
The compact VSSOP form factor measures 2.1 mm by 1.8 mm by 2.9 mm, reducing mounting area requirements while maintaining robust performance. Off state leakage current is minimal at 10 nA, and the capacitance value of 1.5 pF ensures low signal crosstalk. This relay conforms to RoHS standards and is made in Japan, reflecting Panasonic's commitment to quality.
Surface mount type for space-saving design. 1.5 A maximum load current for moderate power applications. 30 V maximum load voltage for versatile control scenarios. SPST contact configuration for reliable switching. Wide operating temperature range of -40°C to 85°C.
Low on state resistance of 0.35 ohms promotes energy efficiency. MOSFET output enabling AC/DC switching capabilities. Compact VSSOP dimensions reduce PCB space. RoHS compliant and manufactured in Japan.
This solid state relay is ideal for use across electronic and electrical industries including home automation, industrial control systems, telecommunications, and measurement testing equipment. It combines compactness, energy efficiency, and reliability, making it a trusted component in critical applications.
Explore more Panasonic relays and Solid State Relay options in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load current for this model is 1.5 A.
It supports a maximum load voltage of 30 V and a minimum load voltage of 15 V.
This model offers AC/DC switching functionality due to its MOSFET output type.
The dimensions of this solid state relay are 2.1 mm in length, 1.8 mm in width, and 2.9 mm in height.
It features an SPST (Single-Pole Single-Throw) contact configuration.
The on state resistance is 0.35 ohms, which helps to minimize power loss during operation.
It operates effectively within a wide temperature range of -40°C to 85°C.
The off state leakage current is minimal at 10 nA, enhancing its performance.
This model utilizes a surface mount configuration with through-hole terminals.
The capacitance of this relay is 1.5 pF, which helps reduce signal interference.
Yes, it conforms to RoHS standards, ensuring it meets environmental regulations.
This solid state relay is manufactured in Japan.
