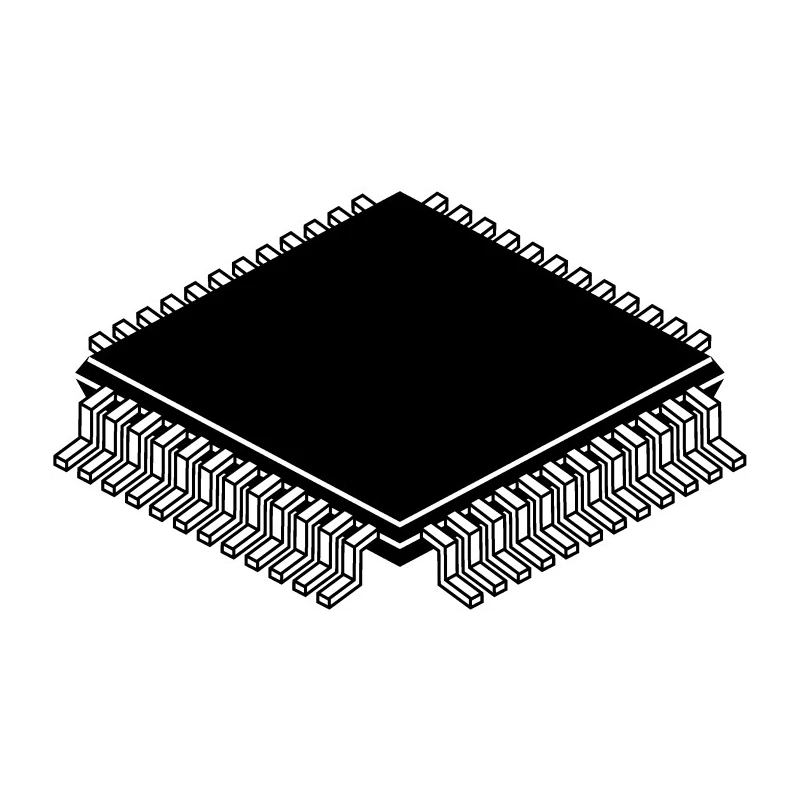

MaxLinear 2-Channel UART RS485, RS232 48-Pin TQFP, Surface Mount 2.97-5.5V ST16C2550CQ48-F

The MaxLinear ST16C2550CQ48-F is a high-performance 2-Channel UART designed for reliable serial communication supporting RS485 and RS232 standards. Packaged in a compact 48-pin Thin Quad Flat Package (TQFP), this surface mount device operates within a supply voltage range of 2.97V to 5.5V, making it adaptable to various electronic circuits.

This UART features 16-bit transmit and receive FIFO buffers which enhance data handling through efficient buffering, allowing maximum data rates of up to 4 Mbps. It supports universal asynchronous receiver/transmitter (UART) functionality, enabling seamless data transmission and reception in asynchronous communication systems commonly used in industrial automation, embedded systems, and telecommunications.

Designed to operate reliably between 0°C to 70°C, the ST16C2550CQ48-F has a length of 9.2mm and a height of 1.2mm, enabling integration into compact PCB layouts without compromising performance.

The device is suitable for a range of industrial and electronic applications where robust serial communication is required, including microcontroller interfaces, remote terminal units, and data acquisition systems.

Supports two UART channels for simultaneous communication paths. Compliant with industry-standard RS485 and RS232 protocols. 16-bit FIFO buffers provide efficient data management. High-speed data transfer at 4 Mbps ensures quick communications.

Wide supply voltage tolerance from 2.97V to 5.5V. Surface mount 48-pin TQFP packaging for modern PCB designs. Wide operating temperature range suitable for various environments. Compact size allows space-efficient mounting on PCBs.

This UART module is an excellent choice for electronics professionals requiring reliable communication components in industrial, commercial, and embedded systems. Explore our Interface ICs catalog for additional MaxLinear products and related semiconductor solutions.
