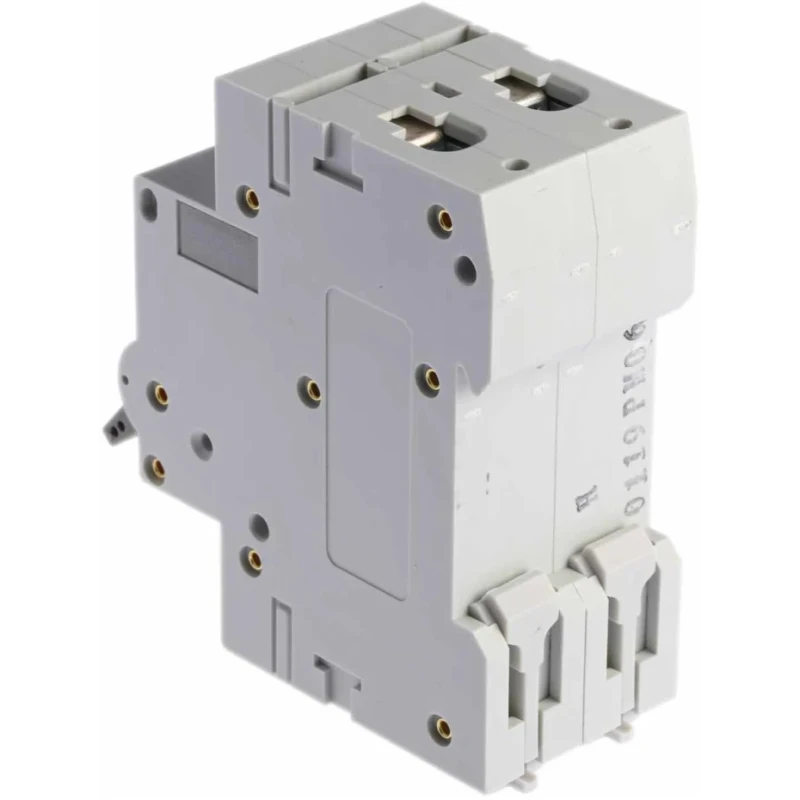

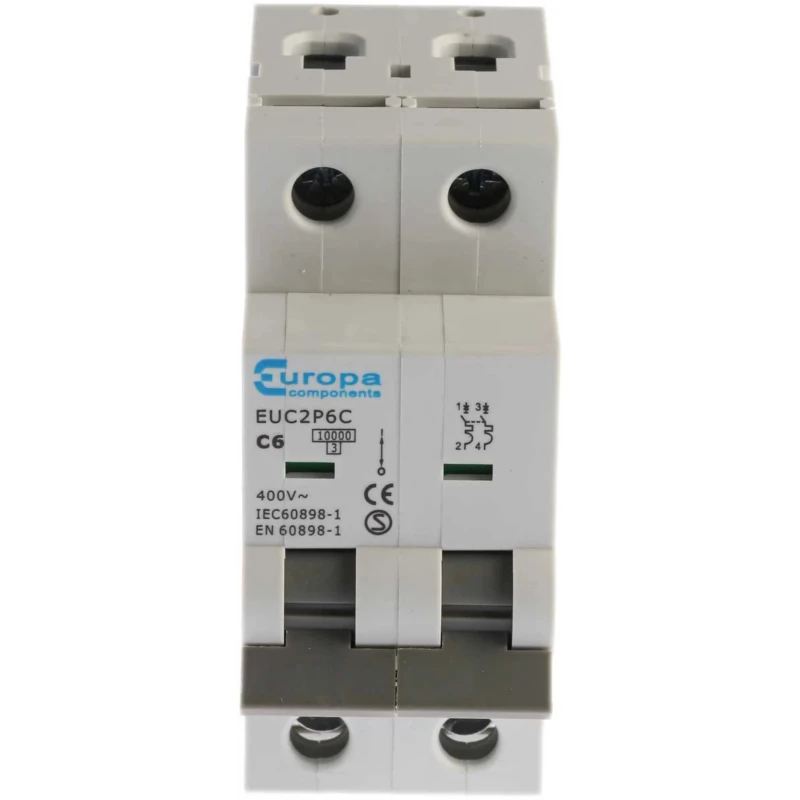

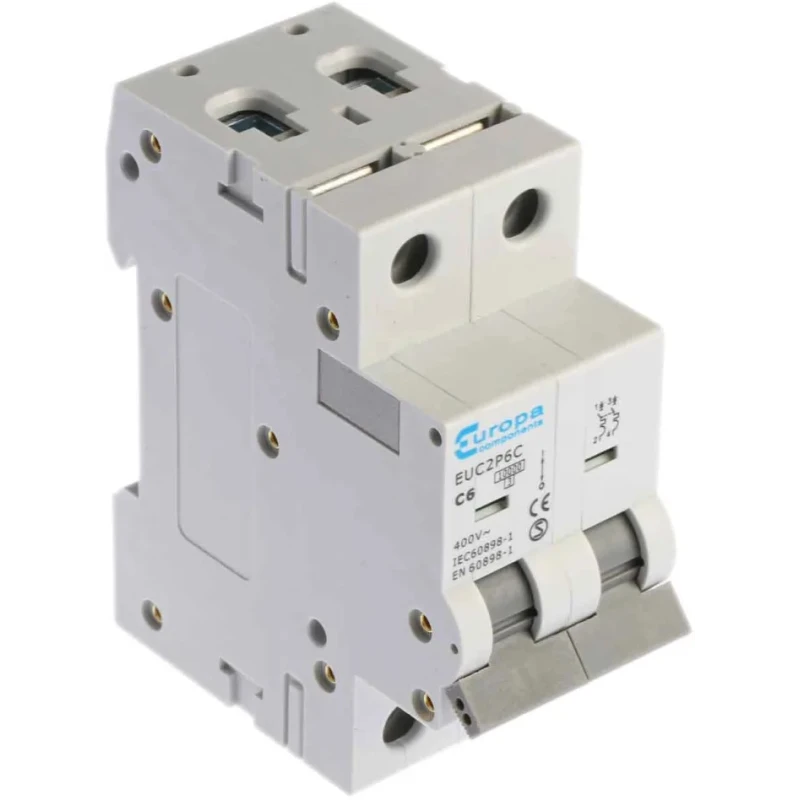

Europa Miniature Circuit Breaker, 2-Pole, 6A, Type C, 400V AC, 10 kA Breaking Capacity EUC2P
Specifications
| Country of Origin | China |
|---|---|
| Range | EUC2P |
| Brand | Europa |
| Height | 36mm |
| Model | EUC2P |
| Depth | 87mm |
| IP Rating | IP20 |
| Width | 78mm |
| Mount Type | DIN Rail |
| Current Rating | 6A |
| Terminal Capacity | 1mm2 to 25mm2 |
| Series | EUC2P |
| Terminal type | Tunnel |
| Breaking Capacity | 10kA |
| Number of Poles | 2 |
| Standards/Approvals | CE, EN 60898, IEC 60898, SEMKO |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Reset Actuator Type | Toggle Switch |
Key Features
- Equipped with 2 poles for dual circuit protection.
- Current rating of 6 amperes suitable for low power electrical circuits.
- Type C tripping characteristics provide protection for moderate inrush currents.
- Operates at rated voltage of 400 volts AC ensuring compatibility with standard electrical systems.
- Breaking capacity of 10 kiloamperes for high fault current interruption.
- DIN rail mount type for easy installation in consumer units.
- IP20 ingress protection rating ensures safety against solid foreign objects.
- Compact dimensions with 36mm height, 78mm width, and 87mm depth.
Product Description
Europa EUC2P6C Miniature Circuit Breaker is a reliable 2-pole protection device rated for 6 amperes and designed with Type C tripping characteristics. It operates at 400 volts AC and provides a breaking capacity of 10 kA, making it suitable for household and light commercial electrical circuit protection.
This circuit breaker is designed for DIN rail mounting, providing ease of installation in standard distribution boards and consumer units. Its compact form factor (36mm height, 78mm width, and 87mm depth) fits well within electrical panels, conserving space while maintaining safety.
The toggle switch actuator allows easy manual resetting after tripping events. Its IP20 rating ensures protection against intrusion by solid objects larger than 12mm, suitable for indoor electrical environments.
The tunnel-type terminals allow secure connections with conductor sizes from 1mm² to 25mm², accommodating a range of wiring requirements. Compliance with IEC 60898 and EN 60898 standards ensures the device meets international safety and performance criteria. CE and SEMKO certifications further affirm its quality and reliability.
Industrial applications include consumer electrical units, light industrial power distribution, and electrical automation systems. It is perfect for protection of circuits against overloads and short circuits in residential and commercial electrical installations.
Equipped with 2 poles for dual circuit protection. Rated current of 6A with Type C tripping characteristics. Supports 400V AC voltage supply. Breaking capacity of 10kA ensures high fault current interruptibility. DIN rail mounting compatible with consumer units.
IP20 rated for protection against solid objects. Toggle switch actuator for reset function. Tunnel terminal type supports 1mm² to 25mm² conductor. Complies with IEC 60898 and EN 60898 standards. Certified with CE and SEMKO approvals.
Explore more Miniature Circuit Breakers and electrical protection solutions to safeguard your electrical infrastructure through EnvMart’s comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 6 amperes, making it suitable for low power electrical circuits.
It has a breaking capacity of 10 kiloamperes, which allows it to interrupt high fault currents effectively.
This unit operates at a rated voltage of 400 volts AC, ensuring compatibility with standard electrical systems.
The dimensions are 36mm in height, 78mm in width, and 87mm in depth, allowing for compact installation in electrical panels.
It features Type C tripping characteristics, which provide protection for moderate inrush currents.
It is designed for DIN rail mounting, which facilitates easy installation in consumer units and distribution boards.
It has an IP20 ingress protection rating, which safeguards against solid foreign objects larger than 12mm.
The tunnel-type terminals support conductor sizes ranging from 1mm² to 25mm², suitable for various wiring requirements.
It complies with IEC 60898 and EN 60898 standards, and is certified with CE and SEMKO approvals, ensuring safety and performance.
It features a toggle switch actuator for easy manual resetting after tripping events.
It is suitable for consumer electrical units, light industrial power distribution, and electrical automation systems, providing overload and short circuit protection.
This miniature circuit breaker is part of the EUC2P series, which includes various models designed for similar applications.
