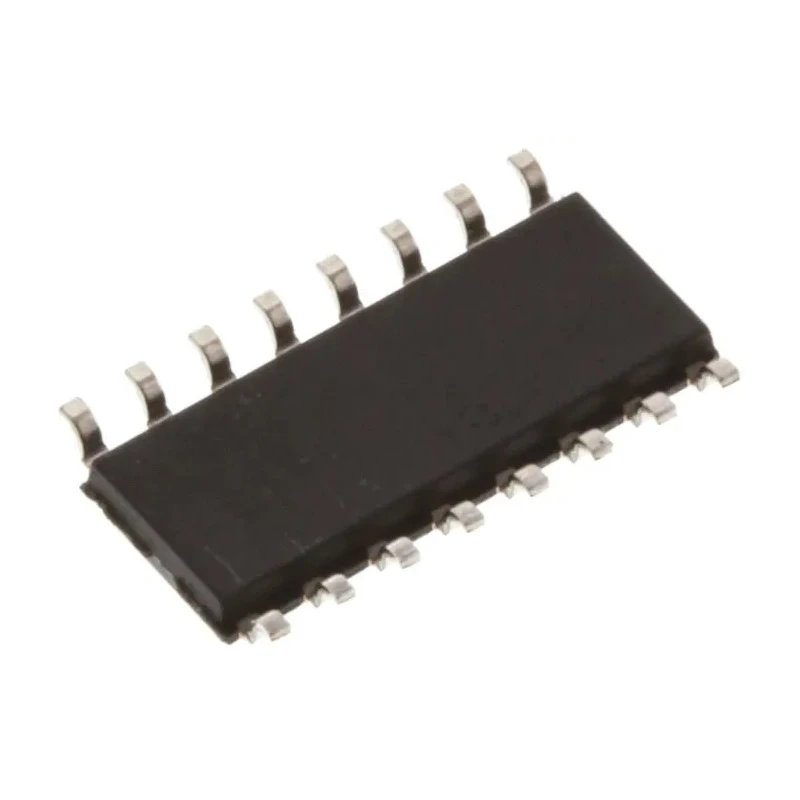

STMicroelectronics 2-Channel CMOS/TTL Line Transceiver, 16-Pin SOP Package, 4.5-5.5V Supply ST232CDR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 2-Channel CMOS/TTL Line Transceiver, 16-Pin SOP Package, 4.5-5.5V Supply ST232CDR

Name: STMicroelectronics 2-Channel CMOS/TTL Line Transceiver, 16-Pin SOP Package, 4.5-5.5V Supply ST232CDR
Brand: STMicroelectronics
SKU: 313121
Price: 38.49 INR
Availability: InStock



Category Line Transceiver IC Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.75mm
Length	10mm
Model	ST232CDR
Width	4mm
Mount Type	Surface
Output type	CMOS/TTL
Series	ST232C
Input Type	Single Ended
Maximum Operating Temperature	70°C
Package Type	SOP
Minimum Operating Temperature	0°C
IC Type	Line Transceiver IC
Number Of Channels	2
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	CMOS/TTL
Logic Function	Line Transceiver
Minimum Supply Voltage	4.5V
Maximum Propagation Delay Time @ CL	1μs
Supply Current	10mA

Key Features

Operates with a supply voltage range from 4.5V to 5.5V.
Features two independent transceiver channels for bidirectional line communication.
Single ended input type with CMOS/TTL output type ensuring compatibility with standard logic levels.
Compact surface mount SOP package with 16 pins, 10mm length, 4mm width, and 1.75mm height.
Designed for operation within 0°C to 70°C temperature range.
Maximum propagation delay time is 1 microsecond at capacitive load.
Low supply current consumption of 10mA for efficient power usage.
Complies with ST232C series standards.

Product Description

STMicroelectronics ST232CDR is a 2-channel Line Transceiver IC belonging to the CMOS/TTL logic family, designed for reliable line interface applications. Packaged in a compact 16-pin SOP surface mount, this device operates with a supply voltage between 4.5V and 5.5V, providing efficient line communication.

This line transceiver features single ended inputs and CMOS/TTL level outputs, enabling compatibility with a wide range of digital logic circuits. The device supports a maximum propagation delay time of 1 microsecond, allowing for fast and responsive signal transmission, making it suitable for RS-232 line drivers and receivers.

With a low supply current of 10mA and operational temperature range from 0 to 70 degrees Celsius, the ST232CDR is optimized for low power consumption and reliability in varying environmental conditions. Its compact dimensions include a length of 10mm, width of 4mm, and height of 1.75mm, making it fit well in space-constrained electronic assemblies.

The device complies with the ST232C series standards and does not include any automotive certification, targeting general industrial and consumer electronics markets. Operates on CMOS/TTL logic family with 16-pin SOP surface mount packaging.

Contains two independent channels for bidirectional line transceiver use. Input is single ended and outputs follow CMOS/TTL standards. Voltage supply range from 4.5V minimum to 5.5V maximum. Low propagation delay time ensures high-speed communication.

Supply current is minimized at 10mA. Designed for operation in temperature range 0°C to 70°C. Physical dimensions suit compact PCB layouts. Compliance with ST232C series standard ensures broad compatibility.

This product is ideal for use in electronic component assemblies requiring RS-232 line driver and receiver functionality, within industrial, manufacturing, and communication system applications.
