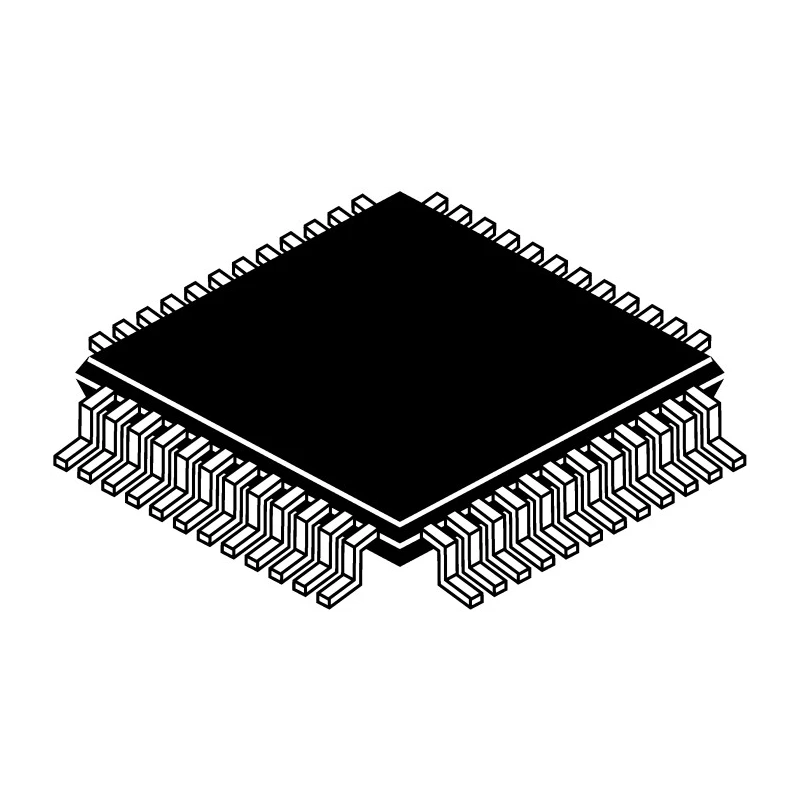

MaxLinear UART Interface Integrated Circuit 48-Pin TQFP Package 1 Channel 1.5Mbps Maximum Data Rate ST16C550IQ48-F

Free Delivery in India | Lowest Global Shipping Charges

MaxLinear UART Interface Integrated Circuit 48-Pin TQFP Package 1 Channel 1.5Mbps Maximum Data Rate ST16C550IQ48-F

Name: MaxLinear UART Interface Integrated Circuit 48-Pin TQFP Package 1 Channel 1.5Mbps Maximum Data Rate ST16C550IQ48-F
Brand: MaxLinear
SKU: 313118
Price: 538.08 INR
Availability: InStock



Category Interface ICs Brand MaxLinear Condition New

Specifications

Country of Origin	India
Brand	MaxLinear
Height	1.2mm
Length	9.2mm
Model	ST16C550IQ48-F
Mount Type	Surface
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	48
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	2.97V
Maximum Data Rate	1.5Mbps
Transmit FIFO	16bit
Receive FIFO	16bit

Key Features

The UART supports a 16-bit transmit FIFO buffer.
It includes a 16-bit receive FIFO buffer for efficient data handling.
Designed for surface mounting with a compact 48-pin TQFP package.
The device operates between 2.97V to 5.5V supply voltage range.
Functions reliably within a temperature range of -40°C to 85°C.
The IC length is 9.2mm with a height of 1.2mm for compact PCB footprint.
Supports various CPU bus interfaces such as 8-bit VLIO for versatile integration.
Widely used in communication applications conforming to EIA standards like RS-232, RS-422, or RS-485.

Product Description

MaxLinear ST16C550IQ48-F is a Universal Asynchronous Receiver/Transmitter (UART) integrated circuit packaged in a 48-pin Thin Quad Flat Package (TQFP). It features a single communication channel designed to handle serial data transmissions efficiently with a maximum data rate of 1.5Mbps. The device incorporates a 16-bit transmit FIFO and a 16-bit receive FIFO that allows smooth and orderly communication without data loss or delays.

This UART IC is intended for surface mount technology (SMT), suitable for modern compact electronic devices. Operating voltage ranges from 2.97V to 5.5V, enabling broad compatibility with various power supply configurations. It operates reliably in harsh environmental conditions with an operating temperature range from -40°C to 85°C.

Its compact dimensions with a length of 9.2mm and a height of 1.2mm facilitate space-saving PCB designs in electronic communication and industrial control equipment. The UART supports standard communication interfaces commonly used in asynchronous serial communications such as EIA RS-232, RS-422, and RS-485 protocols.

This product is widely used in industrial automation, telecommunications, and embedded system applications where reliable serial communication is critical. The compact pin layout and surface mount package type ensure easier integration into PCB assemblies, enhancing production efficiency.

The UART includes 16-bit FIFO buffers for both transmit and receive operations, ensuring efficient data handling. Supports universal communication standards facilitating modem and serial line interfaces. Designed for robust operation over wide temperature and voltage supply ranges.

The 48-pin TQFP package allows for compact, high-density PCB layouts. Compatible with a variety of CPU bus interfaces, ideal for embedded system designs. The device improves production efficiency with easy insertion into machinery and electronic hardware.

Suitable for industrial, telecommunications, and embedded applications requiring reliable asynchronous communication. Explore more Semiconductor Interface ICs and related electronic components in EnvMart's specialized catalog for Electronics & Electricals.
