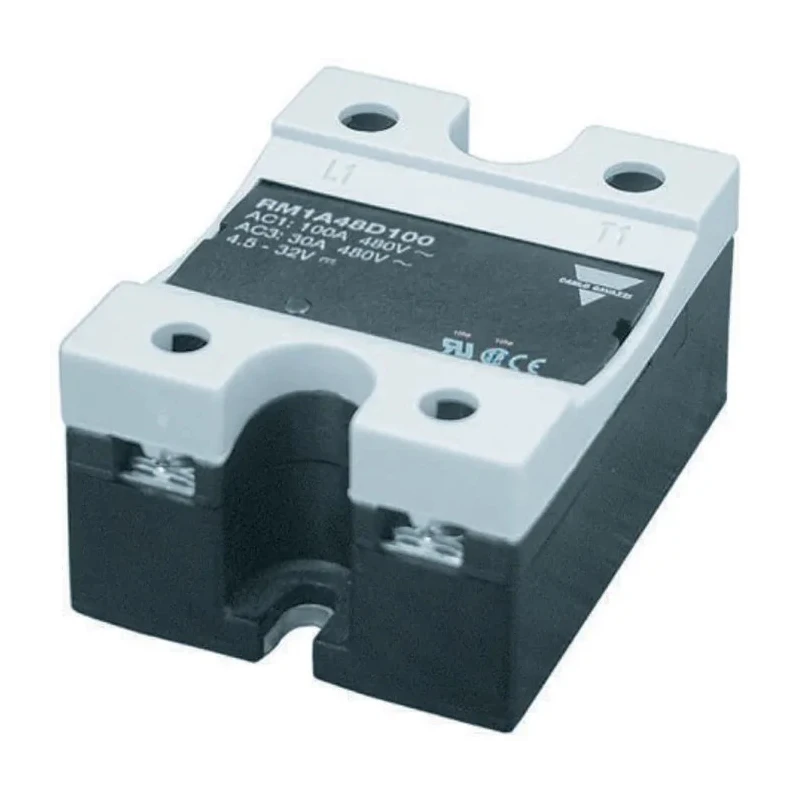

Carlo Gavazzi RM1 Series Solid State Relay, Panel Mount, 100 A Load, 660 V Load, 32 V Control RM1A60D100

Carlo Gavazzi RM1A60D100 solid state relay is a high-performance, panel-mounted relay designed for industrial and automation applications that require precise and reliable switching of high current loads. The device supports a maximum load current of 100 A and load voltage up to 660 V, controlled by a low control voltage ranging from 4 V to 32 V. It belongs to the RM1 series and operates optimally in single-phase systems with frequencies between 45 and 65 Hz.

This relay offers zero cross switching functionality, which reduces electrical noise and stress on the power system during switching. Its IP20 rating ensures protection against solid objects while maintaining easy installation and connectivity through screw type terminals. An integrated LED indicator provides visual feedback for mains voltage presence, simplifying troubleshooting and monitoring.

With operating temperatures from -20°C up to 70°C, the RM1A60D100 offers reliable performance even in challenging environments. The thyristor output stage guarantees effective current control, and integrated voltage transient protection safeguards sensitive circuitry from transient voltage spikes, enhancing longevity and system safety.

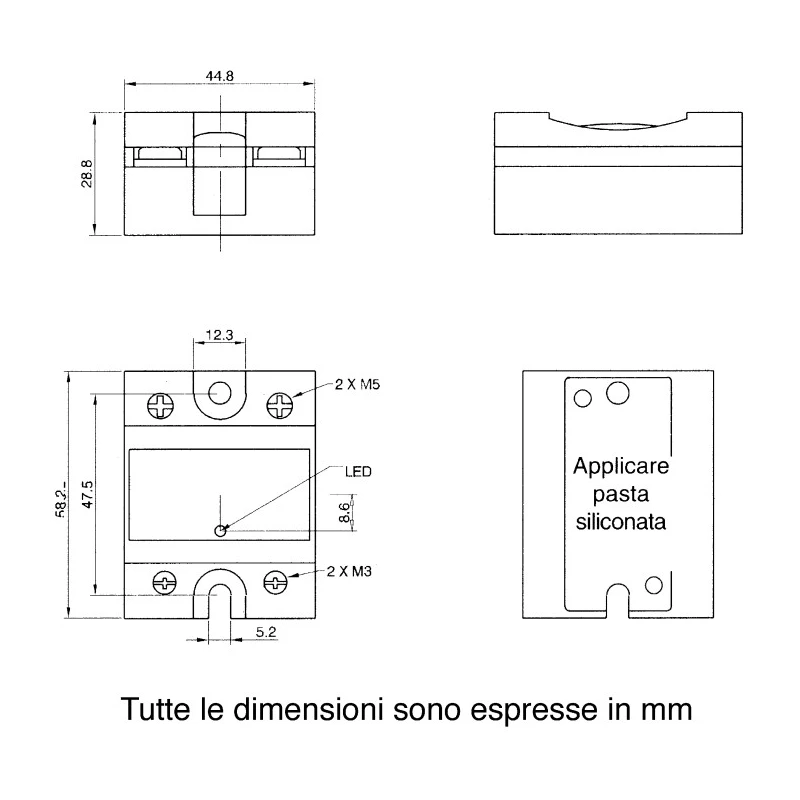

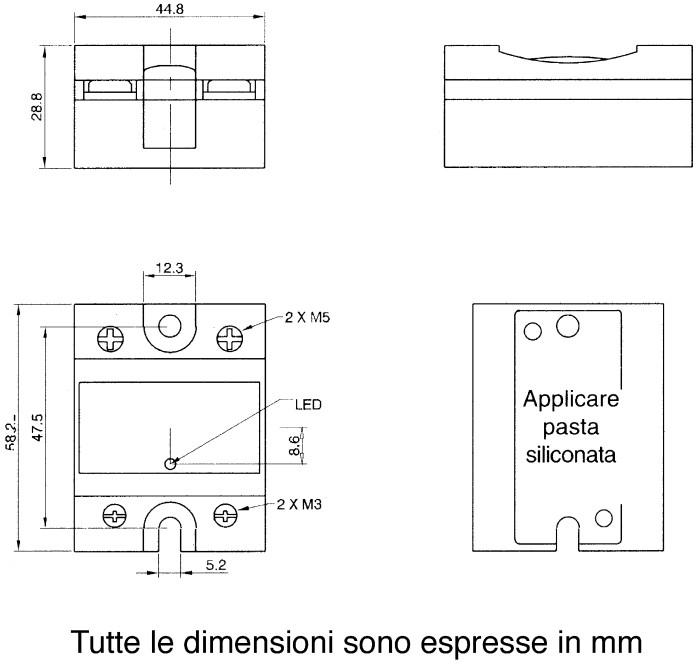

Compact and robust, the relay measures 28.8 mm in height, 44.8 mm in length, and 58.2 mm in width, allowing efficient use of panel space. Certified by CE, CSA, and UR compliance standards, the relay meets stringent safety and quality requirements for industrial and electrical control applications.

Typical use cases include automation equipment, industrial machinery control, HVAC systems, manufacturing processes, and electrical panels where silent, reliable, and maintenance-free solid state relay switching is critical. This relay is designed to deliver optimum performance in demanding environments with high current and voltage switching needs.

This relay features zero cross switching for enhanced performance. It is designed with IP20 protection for safe operation. The device supports screw terminal connections for secure wiring. It integrates an LED to indicate mains voltage presence.

Temperature ratings range from -20°C to 70°C for robust use. Suitable for single-phase applications within 45 to 65 Hz frequency range. The relay uses thyristor output type for efficient control. Includes integrated voltage transient protection, except for certain series.

Compact dimensions of height 28.8mm, length 44.8mm, and width 58.2mm. Complies with CE, CSA, and UR standards for quality assurance. Explore more Solid State Relays and industrial electrical products from trusted brands like Carlo Gavazzi at EnvMart, your source for quality automation and control solutions.
