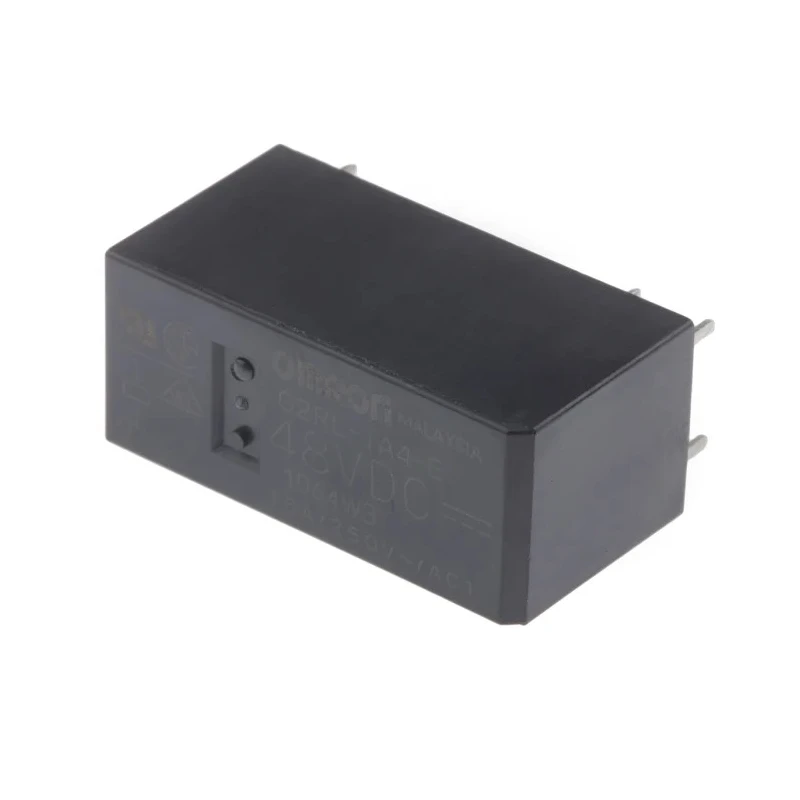

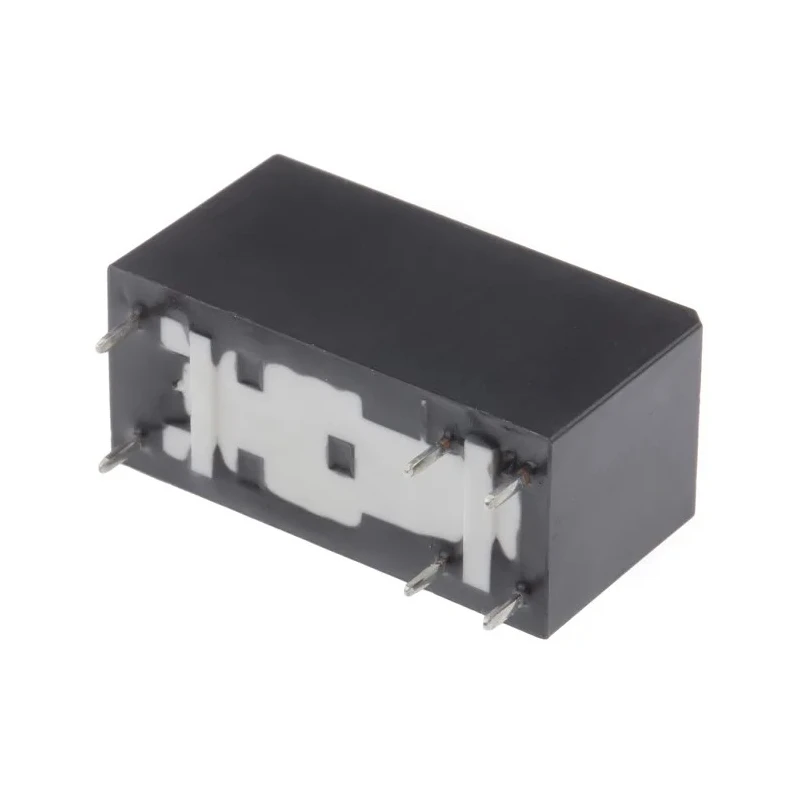

Omron PCB Power Relay, 48V DC Coil, 16A Switching Current, SPST Contact Configuration G2RL-1A4-E DC48
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 15.7mm |
| Length | 29mm |
| Model | G2RL-1A4-E DC48 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | G2RL |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 100mΩ |
| Standards/Approvals | VDE, RoHS, IEC/EN 60079-15 |
| Coil Resistance | 5.4kΩ |
| Coil Voltage | 48V dc |
| Switching DC Voltage | 300V dc |
| Switching AC Voltage | 440V ac |
| Coil Power | 400mW |
Key Features
- Compact low profile design with 15.7 mm maximum height enables efficient PCB mounting.
- Operates reliably between temperatures of -40°C to 85°C for diverse environments.
- Coil power consumption is low at 400 mW ensuring energy efficiency.
- Silver alloy contacts provide excellent conductivity with 100 mΩ contact resistance.
- Supports switching voltages up to 300V DC and 440V AC with 4 kVA switching power.
- Meets VDE, RoHS, IEC/EN 60079-15 standards for quality and safety compliance.
- Terminal type is solder, optimized for PCB assembly processes.
- Features 10 mm creepage and clearance distance enhancing electrical isolation.
Product Description
Omron G2RL-1A4-E DC48 is a PCB mount power relay designed for reliable switching and efficient operation in industrial and electrical applications. This relay features a 48V DC coil voltage driving SPST (Single Pole Single Throw) contacts rated for a switching current up to 16A.
With a compact size of 15.7 mm height, 12.7 mm width, and 29 mm length, it is well-suited for space-constrained PCB layouts. The coil resistance of 5.4 kΩ and coil power consumption of 400 mW contribute to energy-efficient operation.
Its contact material is silver alloy ensuring low contact resistance of 100 mΩ, supporting switching at up to 300V DC and 440V AC, with a switching power rating of 4 kVA. Designed to operate in temperatures from -40°C to 85°C, it delivers reliable performance in industrial control, automation, and HVAC systems.
The G2RL series meets multiple international standards including VDE, RoHS, and IEC/EN 60079-15 certifications ensuring product quality and safety compliance. The relay has a solder-type terminal optimized for automated PCB soldering processes and features a tracking resistance CTI > 250 for robust electrical insulation.
Applications include use in industrial equipment, automation control panels, power distribution systems, and other electronic devices requiring reliable switching of moderate current loads on PCBs.
Compact low-profile design for efficient PCB mounting. Wide operating temperature range (-40°C to 85°C) for varied environments. Energy-efficient coil with 400 mW power consumption. Silver alloy contacts for superior conductivity and durability.
Supports high switching voltages and currents with 4 kVA switching power. Meets international standards including VDE, RoHS, and IEC/EN 60079-15. Solder terminals for secure PCB installation. High tracking resistance ensuring electrical safety.
Explore a wide selection of Power Relays in the Electronics & Electricals category at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this model is 16A.
This relay operates with a coil voltage of 48V DC.
The dimensions of this unit are 15.7 mm in height, 12.7 mm in width, and 29 mm in length.
It features a Single Pole Single Throw (SPST) contact configuration.
The relay operates reliably within a temperature range of -40°C to 85°C.
The contact resistance is 100 mΩ, which ensures excellent conductivity.
It supports switching voltages up to 300V DC and 440V AC.
The coil power consumption is 400 mW, contributing to its energy efficiency.
The contacts are made of silver alloy, providing excellent conductivity.
This relay meets VDE, RoHS, and IEC/EN 60079-15 standards for quality and safety compliance.
It has a solder-type terminal optimized for PCB assembly processes.
It is suitable for use in industrial equipment, automation control panels, and power distribution systems.
