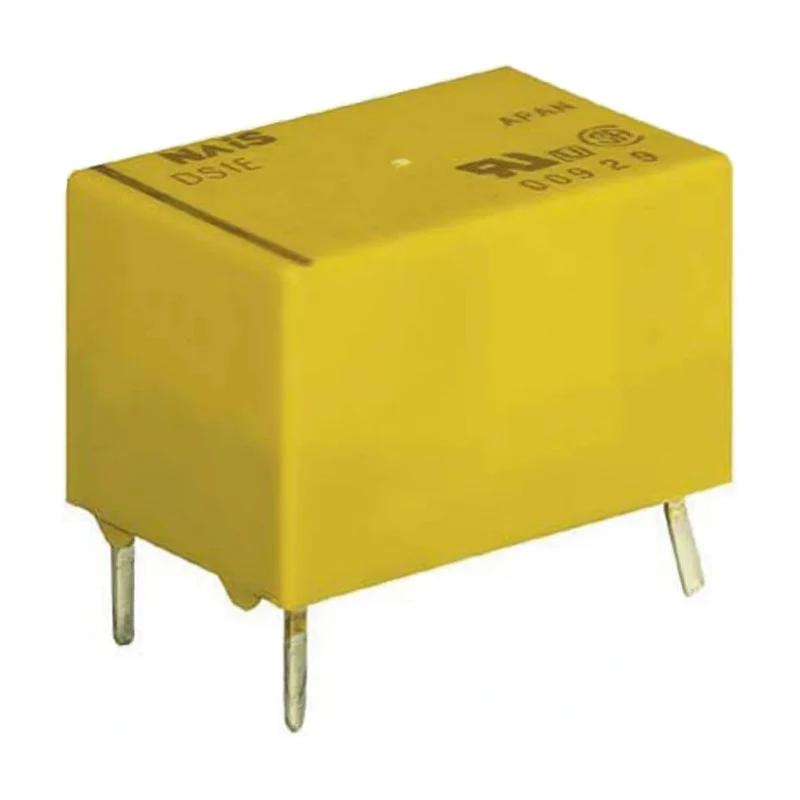

Panasonic PCB Signal Relay 5V DC Coil 3A SPDT DS1E-ML2-DC5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.9mm |
| Length | 15mm |
| Model | DS1E-ML2-DC5V |
| Width | 9.9mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DS1E |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 3A |
| Terminal type | PCB Terminal |
| Standards/Approvals | RoHS |
| Coil Resistance | 139Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 360mW |
Key Features
- This relay features a single-pole double-throw (SPDT) contact configuration.
- Designed for PCB mounting with gold plated contacts ensuring reliable switching.
- Operates within a temperature range from -40°C to 70°C.
- Capable of switching up to 250V AC and 220V DC voltages.
- The coil resistance is 139Ω with a coil power of 360mW.
- Compact dimensions of 15mm length, 9.9mm width, and 9.9mm height.
- Complies with RoHS standards, ensuring environmental safety.
- Manufactured in Japan with high-quality construction and materials.
Product Description
Panasonic DS1E-ML2-DC5V PCB Signal Relay is engineered for reliable signal switching in electronic and electrical applications. Featuring a 5V DC coil voltage and a single-pole double-throw (SPDT) contact configuration, it is suited for precise control tasks in industrial, automation, and electronics projects.
This relay supports a switching current of up to 3A and can handle AC voltages up to 250V and DC voltages up to 220V, offering versatile operation across various circuits. Its coil resistance of 139Ω and coil power consumption of 360mW enables efficient signal control with minimal power loss.
The unit is designed for PCB mounting, facilitating easy integration into printed circuit boards. Gold plated contacts ensure excellent conductivity and resistance to corrosion, prolonging operational life.
The operating temperature range from -40°C to 70°C allows deployment in challenging environmental conditions, making it suitable for industrial and commercial use cases including automation systems, signal conditioning devices, and control panels.
Compact dimensions of 15mm length, 9.9mm width, and 9.9mm height make this relay a space-efficient component for dense PCB layouts. Compliance with RoHS standards confirms its adherence to environmental directives, promoting safer electronics manufacturing.
This relay features a single-pole double-throw (SPDT) contact configuration. Designed for PCB mounting with gold plated contacts ensuring reliable switching. Operates within a temperature range from -40°C to 70°C. Capable of switching up to 250V AC and 220V DC voltages.
The coil resistance is 139Ω with a coil power of 360mW. Compact dimensions of 15mm length, 9.9mm width, and 9.9mm height. Complies with RoHS standards, ensuring environmental safety. Manufactured in Japan with high-quality construction and materials.
This Panasonic PCB Signal Relay is extensively used in industrial automation, electronics manufacturing, control systems, and laboratory equipment. It offers dependable switching performance required in signal conditioning and control relay applications. Browse the Electronics & Electricals > Relays & Contactors > Signal Relay category on EnvMart to explore similar high-quality components for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay is capable of switching a current of up to 3A.
The dimensions of this model are 15mm in length, 9.9mm in width, and 9.9mm in height.
The coil voltage for this relay is 5V DC.
It features a single-pole double-throw (SPDT) contact configuration.
It can switch AC voltages up to 250V and DC voltages up to 220V.
The coil resistance is 139Ω.
The coil power consumption is 360mW.
The operating temperature range is from -40°C to 70°C.
Yes, it complies with RoHS standards, ensuring environmental safety.
This relay is designed for PCB mounting.
It is manufactured in Japan.
The contacts are made of gold plated material, ensuring reliable switching.
