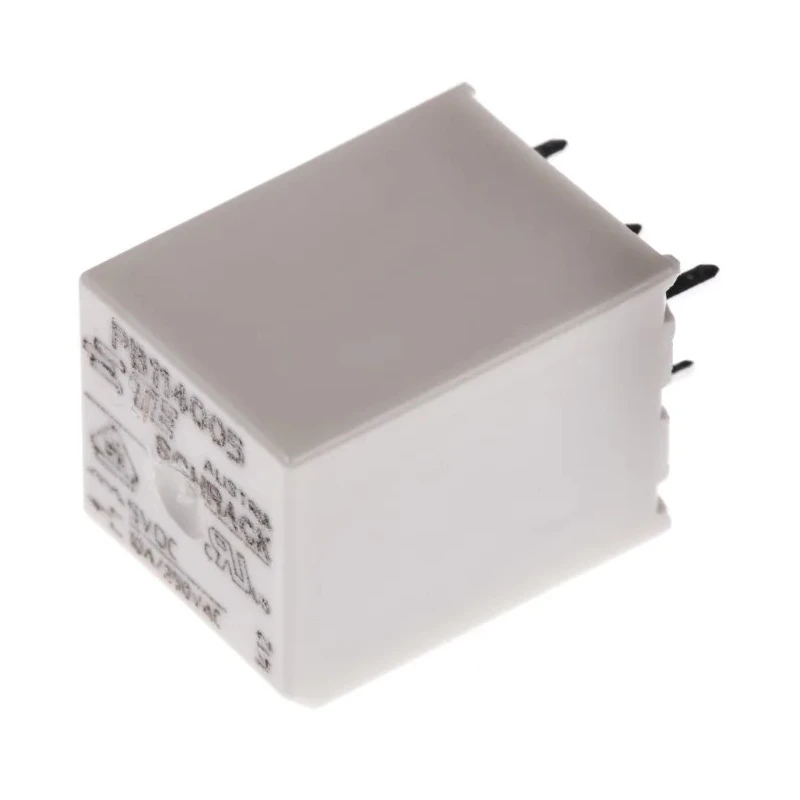

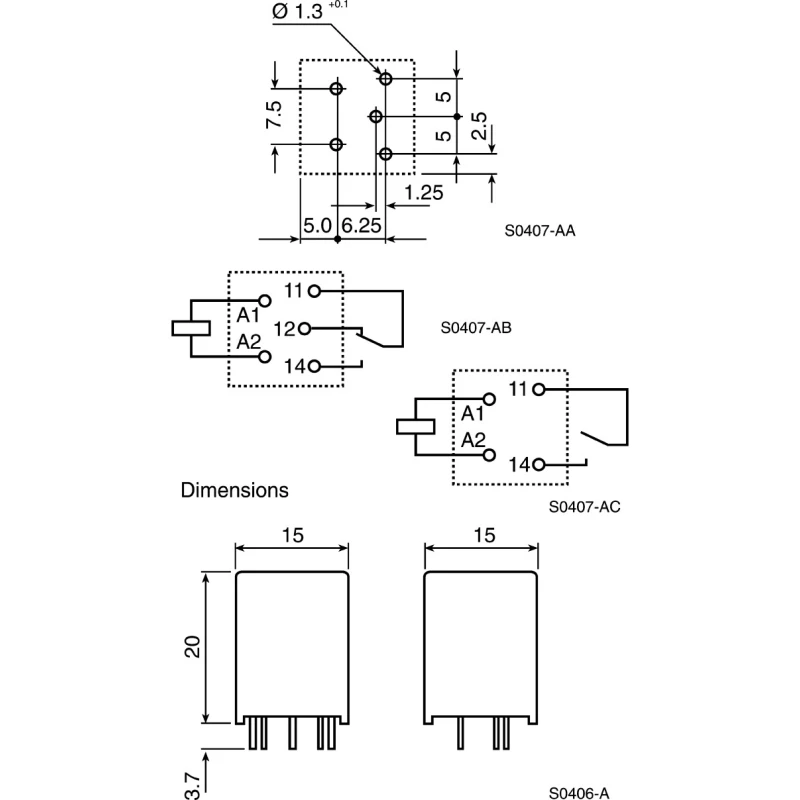

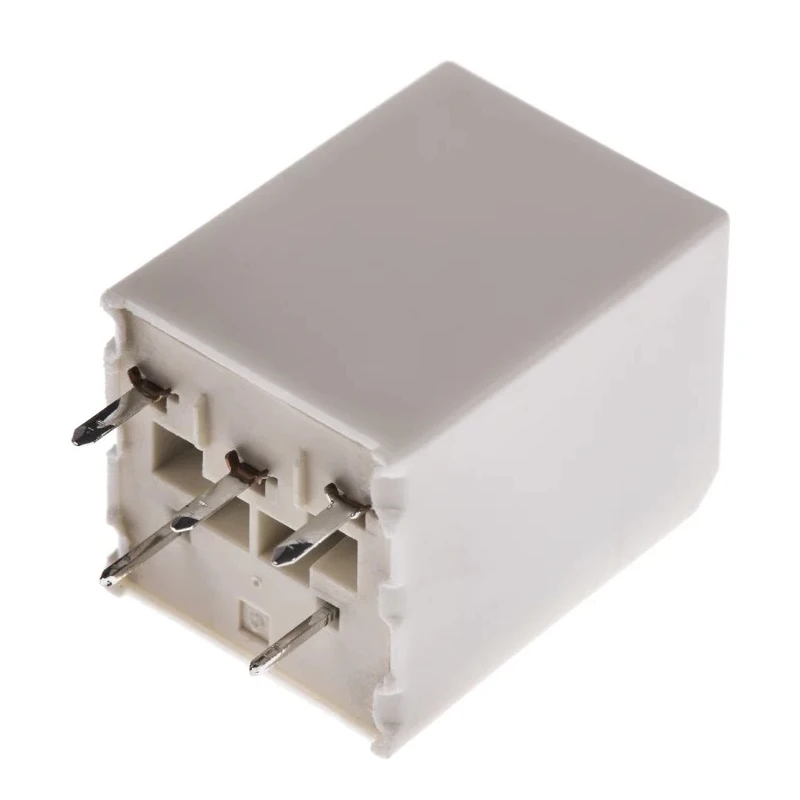

TE Connectivity Power Relay SPDT PCB Mount 5V DC Coil 10A Switching Current PB114005
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 20mm |
| Temperature range | - 40 to 85°C |
| Length | 15mm |
| Model | PB114005 |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | PB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 10A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, IEC 61810 |
| Coil Resistance | 70Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 357mW |
| Isolation Coil To Contact | 2500V |
| Clearance/creepage | ≥0.75mm |
| Omron PCB Mount Non-Latching Relay, 5V dc Coil, 5A Switching Current, SPDTBrand | Omron |
Key Features
- The SPDT contact configuration allows for versatile switching in circuits.
- Compact dimensions of 15mm width, 15mm length, and 20mm height optimize PCB space.
- Coil resistance is 70 ohms ensuring efficient coil current draw.
- Coil power consumption is low at 357mW for reduced energy usage.
- Rated switching voltage for AC load reaches up to 400V AC.
- Operating temperature range spans from -40°C to 85°C for wide environmental conditions.
- Contacts made of silver alloy provide durable and stable electrical conductivity.
- PCB mount type with solder terminals ensures secure and stable installation.
Product Description
TE Connectivity PB114005 is a high-quality miniature power PCB relay designed for a variety of industrial and electronic applications. It features a SPDT (Single Pole Double Throw) contact configuration and a 5V DC coil voltage optimized for compact PCB mounting.
Its robust construction includes silver alloy contacts that ensure reliable electrical conduction with excellent resistance to wear and corrosion. The relay’s coil resistance of 70 ohms and power consumption of approximately 357mW support efficient operation within power-sensitive designs.
The relay supports a switching current of 10A and can handle switching AC voltages up to 400V AC. It has a temperature operating range from -40°C to 85°C, making it suitable for harsh industrial environments including white goods, small home appliances, heating controllers, and temperature control systems.
The compact dimensions of 15mm width, 15mm length, and 20mm height allow easy integration into space-constrained PCBs. Its clearance and creepage distances of at least 0.75mm and isolation voltage rating of 2500V between coil and contacts ensure safety and reliability in operation according to IEC standards.
The relay meets RoHS and IEC 61810 standards, ensuring environmental compliance and safety. Mount type is PCB with solder terminals for secure and stable installation onto boards. Typical applications include automation systems, white goods, HVAC controls, and other manufacturing equipment requiring dependable switching.
The PB series offers a standardized F class coil system with cadmium-free nickel silver contacts, emphasizing environmental responsibility and durability. This relay represents a reliable solution for electrical switching needs in industrial, commercial, and residential electronic devices.
Explore more Power Relay products and other electrical components available at EnvMart for your industrial and manufacturing requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 10A.
This model operates with a coil voltage of 5V DC.
The dimensions of the relay are 15mm in width, 15mm in length, and 20mm in height.
It can handle switching AC voltages up to 400V AC.
The operating temperature range spans from -40°C to 85°C.
This model features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 70 ohms.
The contacts are made of silver alloy, providing stable electrical conductivity.
It is designed for PCB mounting with solder terminals for secure installation.
The relay meets RoHS and IEC 61810 standards for environmental compliance and safety.
The coil power consumption is approximately 357mW.
This relay is suitable for applications in automation systems, white goods, HVAC controls, and other manufacturing equipment.
