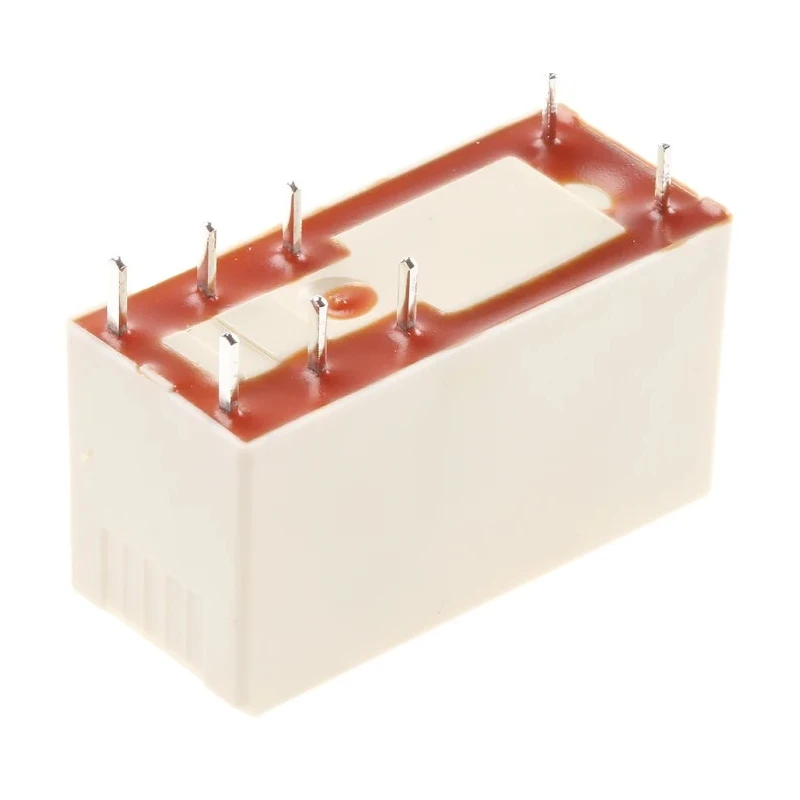

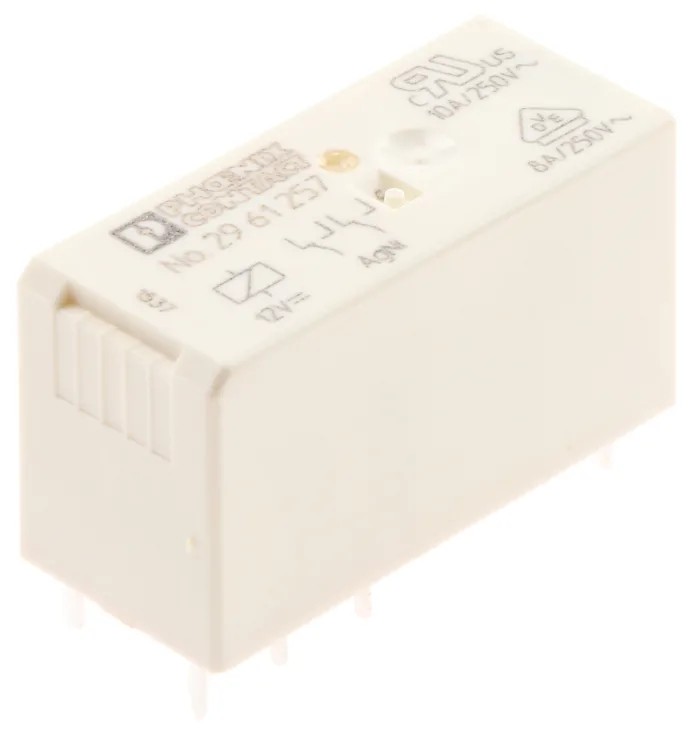

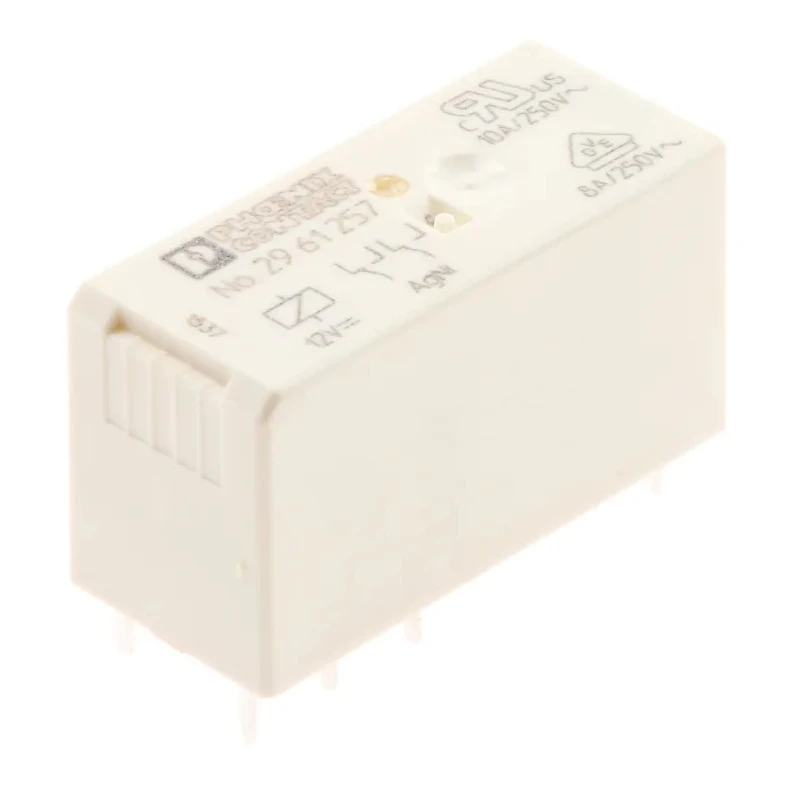

Phoenix Contact PCB Power Relay 12V DC Coil 8A Switching Current DPDT 2961257
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Phoenix Contact |
| Height | 29mm |
| Length | 12.7mm |
| Model | 2961257 |
| Width | 15.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | REL-MR- 12DC/21-21 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | EN, IEC, RoHS, UL, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 250V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 2kW |
Key Features
- Operates with a coil voltage of 12 volts DC.
- Double pole double throw (DPDT) contact configuration provides versatile switching.
- Designed for printed circuit board (PCB) mounting with solder terminals.
- Supports a maximum switching current of 8 Amperes.
- Compact dimensions of 12.7mm length, 29mm height, and 15.7mm width.
- Coil resistance measures 360 Ohms for efficient operation.
- Suitable for operating temperatures from -40°C to +85°C.
- Silver alloy contacts ensure excellent conductivity and corrosion resistance.
Product Description
Phoenix Contact 2961257 PCB Power Relay is a high-quality non-latching relay designed for printed circuit board applications requiring reliable double pole double throw (DPDT) switching at 12 volts DC coil voltage and 8A switching current.
This relay operates by energizing an internal coil to open or close circuits, making it ideal for push-button applications including keyboards, doorbells, and other control systems. The robust silver alloy contacts provide high conductivity and resistance to corrosion, supporting long service life even with frequent switching cycles.
The relay features a compact footprint measuring 12.7 mm length, 29 mm height, and 15.7 mm width, with solder terminal types suitable for through-hole mounting on PCB assemblies. Designed to withstand harsh industrial environments, it operates reliably over a wide temperature range from -40°C to +85°C.
Electrical characteristics include a coil resistance of 360 Ω, a maximum switching power of 2 kVA AC and 190 W DC, and voltage ratings up to 250 V AC or DC. The device complies with multiple international standards including EN, IEC, RoHS, UL, and VDE approvals.
Phoenix Contact’s REL-MR series non-latching relays deliver compact size with robust performance, featuring additional hard gold plating on contacts and suitability for both AC and DC coil voltages. These relays are widely used across industrial automation, electrical control panels, telecommunications, and manufacturing equipment.
Operates with a coil voltage of 12 volts DC. Double pole double throw (DPDT) contact configuration provides versatile switching. Designed for printed circuit board (PCB) mounting with solder terminals. Supports a maximum switching current of 8 Amperes.
Compact dimensions of 12.7mm length, 29mm height, and 15.7mm width. Coil resistance measures 360 Ohms for efficient operation. Suitable for operating temperatures from -40°C to +85°C. Silver alloy contacts ensure excellent conductivity and corrosion resistance.
Maximum switching voltage rating of 250V AC and 250V DC. Maximum switching power rated at 2 kVA AC and 190 W DC. Non-latching design ideal for push-button applications such as keyboards and doorbells.
This Phoenix Contact power relay is manufactured in Austria and represents a trusted solution for precise and durable relay switching in demanding industrial applications. Explore more in the Power Relay category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this power relay is 12 volts DC.
This model supports a maximum switching current of 8 Amperes.
The dimensions are 12.7 mm in length, 29 mm in height, and 15.7 mm in width.
It uses a double pole double throw (DPDT) contact configuration for versatile switching.
The coil resistance measures 360 Ohms, which contributes to efficient operation.
The relay operates reliably within a temperature range of -40°C to +85°C.
The contacts are made of silver alloy, ensuring excellent conductivity and corrosion resistance.
The maximum switching voltage rating is 250V for both AC and DC.
This relay is designed for PCB mounting with solder terminals.
It complies with multiple standards including EN, IEC, RoHS, UL, and VDE.
The maximum switching power rating is 2 kVA for AC and 190 W for DC.
This relay is suitable for applications such as push-button controls, keyboards, and doorbells.
