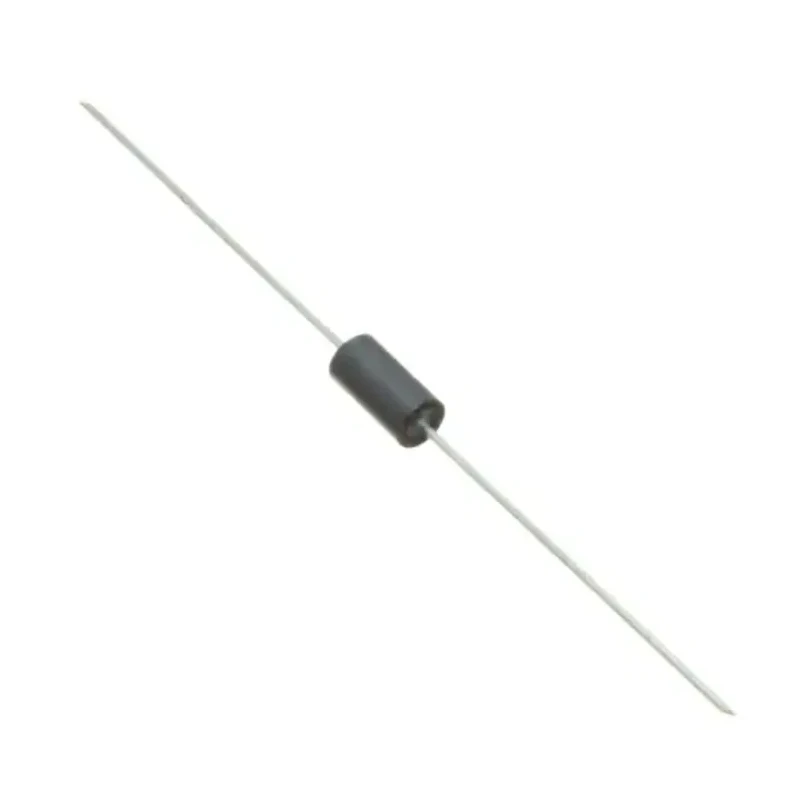

Fair-Rite Ferrite Bead Through Hole 3.5 mm Axial, 88 Ω Impedance at 25 MHz, 133 Ω Impedance at 100 MHz 2743002112
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.5mm |
| Brand | Fair-Rite |
| Material | Nickel Zinc |
| Length | 8.9mm |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 125°C |
| Package Type | Axial |
| Sub Type | Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Impedance at 100 MHz | 133Ω |
| Impedance at 25 MHz | 88Ω |
Key Features
- Axial leaded ferrite bead suitable for through hole mounting.
- Impedance of 88 Ohms at 25 MHz frequency.
- Impedance of 133 Ohms at 100 MHz frequency.
- Material consists of nickel zinc ferrite for effective EMI suppression.
- Operating temperature range from -55 to 125 degrees Celsius.
- Packaged in tape and reel format for automated assembly.
- Contains 2 pins for mounting.
- Compliant with RoHS environmental standards.
Product Description
Fair-Rite 2743002112 ferrite bead is a high-quality axial leaded component designed for EMI suppression in electronic circuits. This through hole ferrite bead features a diameter of 3.5 mm and length of 8.9 mm, making it ideal for compact PCB designs requiring effective noise filtering.
Operating over a wide temperature range from -55°C to +125°C, it ensures reliable performance in various industrial and commercial electronic applications. The bead exhibits an impedance of 88 Ω at 25 MHz and increases to 133 Ω at 100 MHz frequency, providing efficient noise attenuation at high frequencies.
Constructed from nickel zinc ferrite material and using oxygen-free high conductivity copper wire with a tin/lead coating, this ferrite bead offers durability and excellent electrical characteristics. The component is supplied taped and reeled according to IEC 60286-1 and EIA Standard RS-296-F, facilitating automated pick-and-place assembly. Each reel contains 4500 pieces with precise tape spacing of 52.4±1.5 mm.
This ferrite bead is compliant with RoHS standards ensuring environmental safety. It is widely used in electronic devices where EMI filtering is required, including industrial equipment, telecommunications, automotive electronics (not automotive grade), and consumer electronics.
Axial leaded ferrite bead suitable for through hole mounting. Impedance of 88 Ohms at 25 MHz frequency. Impedance of 133 Ohms at 100 MHz frequency. Length of 8.9 mm and diameter of 3.5 mm. Material is nickel zinc ferrite for effective EMI suppression.
Operating temperature range from -55 to 125 degrees Celsius. Packaged in tape and reel format for automated assembly. Contains 2 pins for mounting. Compliant with RoHS environmental standards.
Fair-Rite brand is known for high-performance ferrite components widely used in the electronics industry. Browse the Ferrite Beads category at EnvMart for compatible EMI filter components and related products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The impedance of this ferrite bead is 88 Ω at 25 MHz.
At 100 MHz, the impedance of this ferrite bead increases to 133 Ω.
This ferrite bead has a diameter of 3.5 mm and a length of 8.9 mm.
The operating temperature range for this ferrite bead is from -55°C to 125°C.
It is packaged in tape and reel format for automated assembly, compliant with IEC 60286-1 and EIA Standard RS-296-F.
This model supports through hole mounting and contains 2 pins for installation.
The ferrite bead is constructed from nickel zinc material, which is effective for EMI suppression.
Yes, it is compliant with RoHS environmental standards.
This ferrite bead is suitable for applications in industrial equipment, telecommunications, automotive electronics (not automotive grade), and consumer electronics where EMI filtering is required.
The country of origin for this ferrite bead is India.
This ferrite bead meets RoHS standards, ensuring it adheres to environmental safety regulations.
The sub-type of this ferrite bead is classified as a bead.
