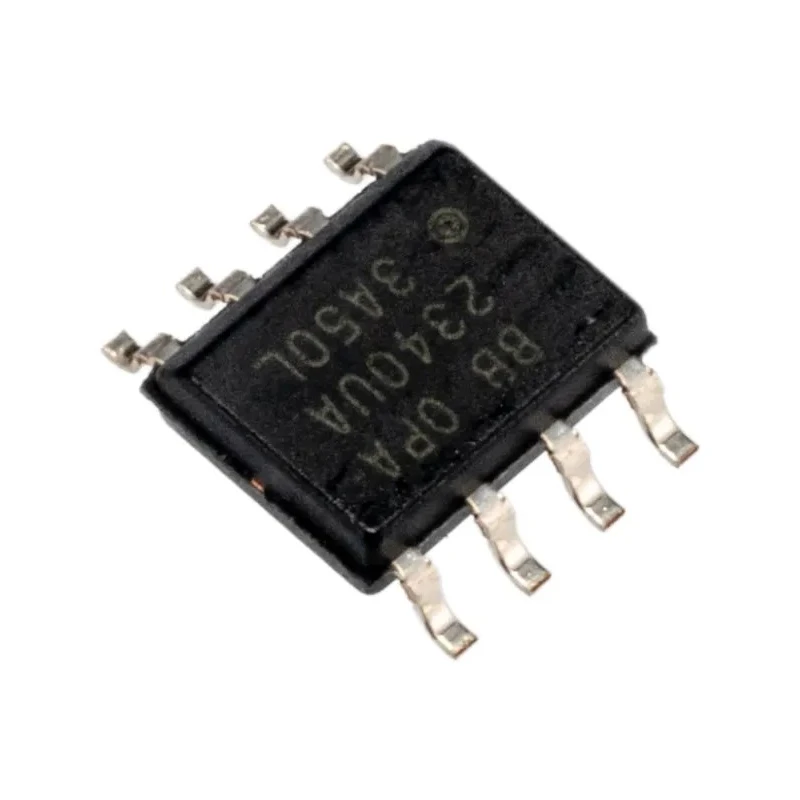

Texas Instruments Operational Amplifier 5.5 MHz, 2-Channel, 8-Pin SOIC Package, 3V-5.5V OPA2340UA

Texas Instruments OPA2340UA is a high-performance dual operational amplifier featuring a gain bandwidth product of 5.5 MHz, designed for versatile electronic applications. Housed in a compact 8-pin SOIC surface mount package, it operates on supply voltages from 3 V to a maximum of 5.5 V, making it suitable for low voltage systems and portable devices.

The device provides a slew rate of 6 V/μs, enabling rapid signal changes with high accuracy. Its input bias current is as low as ±10 picoamperes, ensuring minimal error in precision signal amplification. Its dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height allow integration into space-constrained PCB layouts.

This Operational Amplifier is built on CMOS technology for low power consumption and enhanced noise performance. It is rated for reliable operation within an ambient temperature range from -40°C to 85°C, making it appropriate for industrial environmental conditions.

The device is designed for dual channel operation, supporting applications such as signal conditioning, filtering, and analog computation. Despite its advanced features, it does not meet automotive standards, but excels in industrial electronics, laboratory instrumentation, and embedded system designs.

Gain bandwidth product of 5.5 MHz enables effective high-frequency signal amplification. Slew rate of 6 V/μs supports rapid signal transitions. Extremely low input bias current minimizes offset errors. Compact SOIC 8-pin surface mount package for efficient PCB integration.

Operating temperature range of -40°C to 85°C suits industrial applications. Low power CMOS construction enhances performance in battery-powered devices. Dual channel configuration allows flexible signal processing. Maximum supply voltage of 5.5 V compatible with a variety of control systems.

Ideal for electronic instrumentation, control, and measurement equipment.
