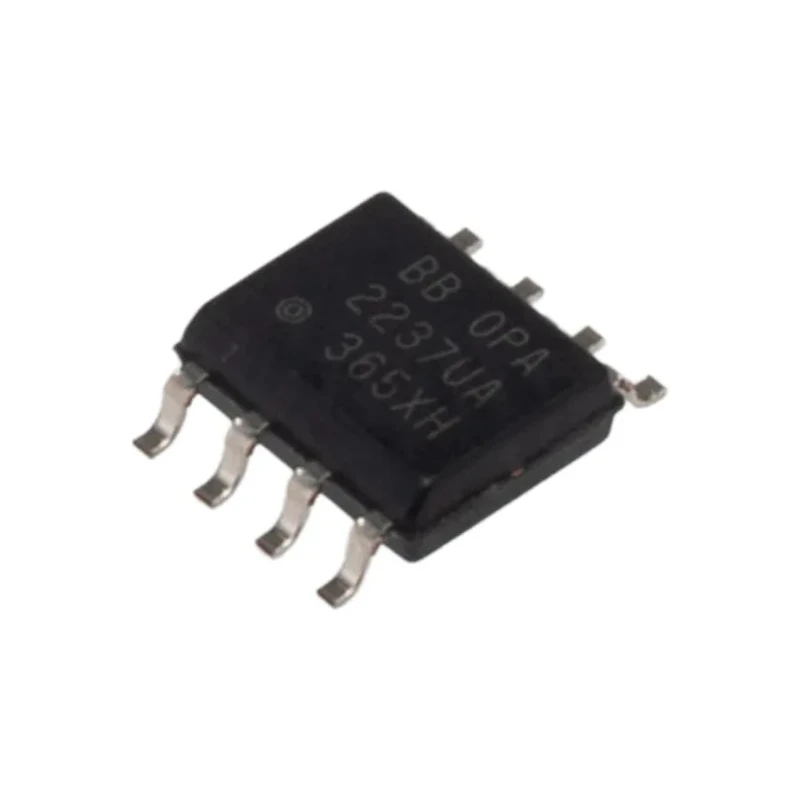

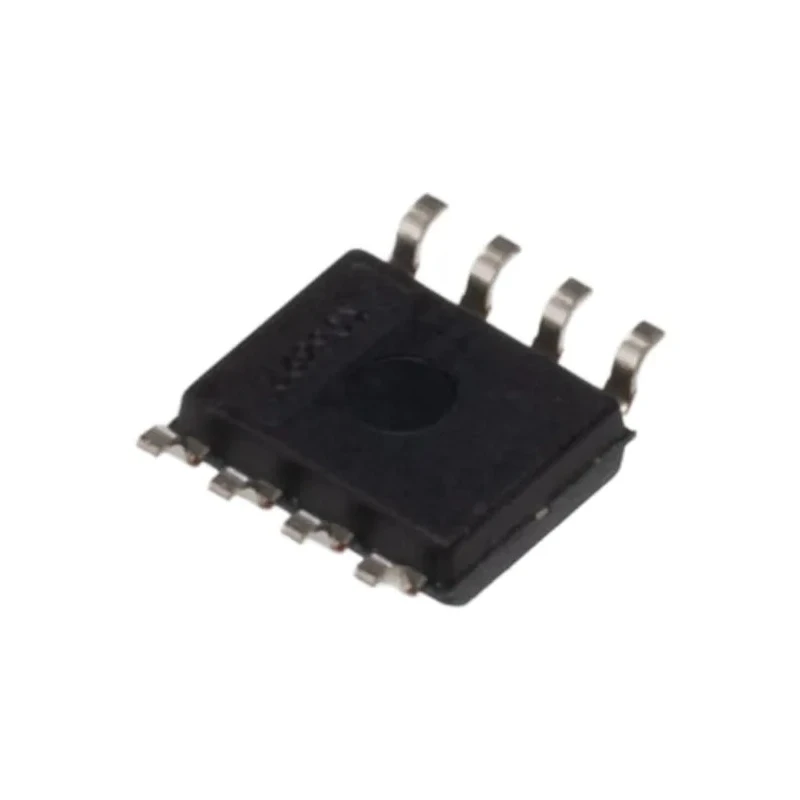

Texas Instruments Operational Amplifier 1.4 MHz, 2 Channels, 8-Pin SOIC Package, 5-18V OPA2237UA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | OPA2237UA |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | OPA2237 |
| Output Current | 1.5mA |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.4MHz |
| Input Bias Current | -40 nA |
| Slew Rate | 0.5V/μs |
| Input Offset Current | ±10 nA |
Key Features
- High precision with low input offset voltage of ±750 μV.
- Surface mount 8-pin SOIC package suitable for compact PCB designs.
- Operating temperature range from -40°C to 85°C for robust applications.
- Output current rating of 1.5 mA suitable for general-purpose amplifier requirements.
- Slew rate of 0.5 V/μs ensures stable signal amplification.
- Input bias current of -40 nA minimizes error in sensitive circuits.
- Wide supply voltage range from 5 V minimum to 18 V maximum.
- Compliant with industrial standards although no formal certifications included.
Product Description
Texas Instruments OPA2237UA is a high-performance operational amplifier featuring a gain bandwidth product of 1.4 MHz delivered across a dual-channel configuration encapsulated in a compact 8-pin SOIC surface mount package. It is designed for robust industrial, laboratory, and commercial semiconductor amplification applications where precision and reliability are paramount.
The amplifier operates over a wide supply voltage range from 5 V to 18 V and supports operating temperatures from -40°C up to 85°C, making it suitable for harsh environments and diverse operating conditions. Its low input bias current of -40 nA and minimal input offset voltage of ±750 μV reduce signal error, enhancing circuit accuracy.
This component offers a typical slew rate of 0.5 V/μs and an output current capacity of 1.5 mA, meeting the requirements of most general-purpose amplification and signal conditioning circuits. The SOIC package type facilitates efficient surface mounting for compact PCB designs used in advanced electronics manufacturing.
While it does not carry specific standards or automotive certifications, the OPA2237 series from Texas Instruments is well regarded for stable performance in instrumentation amplifiers, sensor interfacing, and general electronic signal amplification tasks.
High precision input specifications with ±10 nA input offset current. Compact dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height enable minimal PCB footprint. Dual channel design supports concurrent amplification requirements in circuit designs.
Stable performance across varied electrical and thermal conditions. Surface mount packaging optimizes production assembly workflows.
This Operational Amplifier is an excellent choice for industrial electronics, semiconductor development, laboratory instrumentation, and general-purpose amplification needs. Explore EnvMart for more Texas Instruments amplifiers and semiconductor components engineered for precision and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the OPA2237UA is 1.4 MHz, which supports its performance in amplification applications.
The output current rating for this model is 1.5 mA, making it suitable for general-purpose amplification requirements.
This operational amplifier operates within a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.
It supports a wide supply voltage range from 5 V to 18 V, allowing flexibility in circuit design.
The OPA2237UA features a dual-channel design, allowing for concurrent amplification in circuit applications.
The dimensions of this operational amplifier are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The input bias current for this model is -40 nA, which helps minimize error in sensitive circuits.
The typical slew rate for this operational amplifier is 0.5 V/μs, ensuring stable signal amplification.
It comes in an 8-pin SOIC surface mount package, suitable for compact PCB designs.
The input offset voltage for this operational amplifier is ±750 μV, which contributes to its high precision.
While it is compliant with industrial standards, the OPA2237UA does not carry specific formal certifications.
This operational amplifier is suitable for industrial electronics, semiconductor development, laboratory instrumentation, and general-purpose amplification needs.
