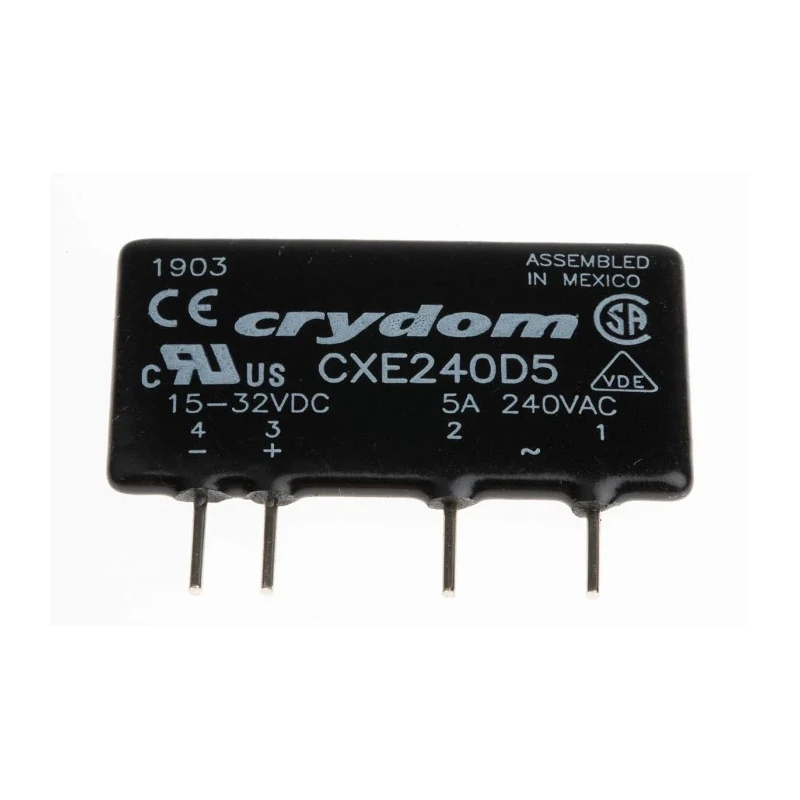

Crydom CX Series Solid State Relay, 5 A Load Current, PCB Mount, 280 V AC Load Voltage, 32V Control CXE240D5

Crydom CXE240D5 Solid State Relay is a precision electrical component designed for reliable power switching on printed circuit boards. It features a maximum load current rating of 5 A and supports load voltages up to 280 V AC, controlled via a DC control voltage up to 32 V. This relay utilizes Solid State technology with an SCR output type, providing silent operation and high durability.

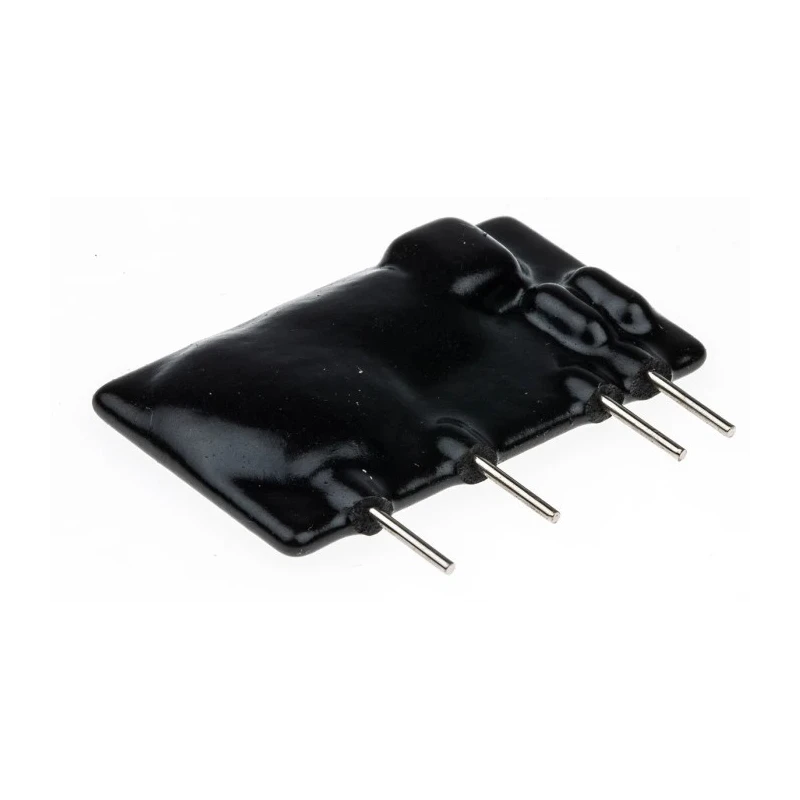

Equipped with zero cross switching, this relay activates the load only when the AC voltage waveform passes through zero, significantly reducing electrical noise and extending the life of connected equipment. Its small form factor - 43.1 mm long, 7.6 mm wide, and 25.4 mm high - enables compact PCB designs, while the thermally conductive epoxy coating aids in heat dissipation for improved electrical efficiency.

The CXE240D5 operates efficiently within a temperature range of -30°C to +80°C, making it suitable for demanding industrial environments. High insulation resistance of 1000 MΩ at 500 V DC minimizes leakage current to just 0.1 mA, ensuring safety and performance consistency. Transient overload protection at 600 V further protects sensitive electronics from voltage spikes.

This relay is ideal for applications in industrial automation, electronic control systems, and computing hardware where precise and silent switching is required. Its PCB mount type with solder pin terminals supports secure and reliable installation.

Standards compliance includes UR, CSA, and RoHS certifications, confirming its quality and environmental safety commitments. Handles maximum load current of 5 amperes for medium-duty applications. Designed for PCB mounting with solder pin terminals for secure connections.

Supports a maximum load voltage of 280 V AC and minimum load voltage of 12 V AC. Operates over a wide temperature range from -30°C to +80°C. Zero cross switching function minimizes electrical noise on activation. Thermally conductive epoxy coating improves heat dissipation and efficiency.

Compact dimensions of 43.1 mm length, 7.6 mm width, and 25.4 mm height maximize PCB space. High insulation resistance of 1000 MΩ at 500 V DC ensures minimal leakage current. Transient overload protection of 600 V safeguards circuits against voltage spikes.

Choose Crydom CXE240D5 for efficient, reliable solid state relay performance in electronic, industrial, and automation applications. Discover more products like this in the Solid State Relay category at EnvMart.
