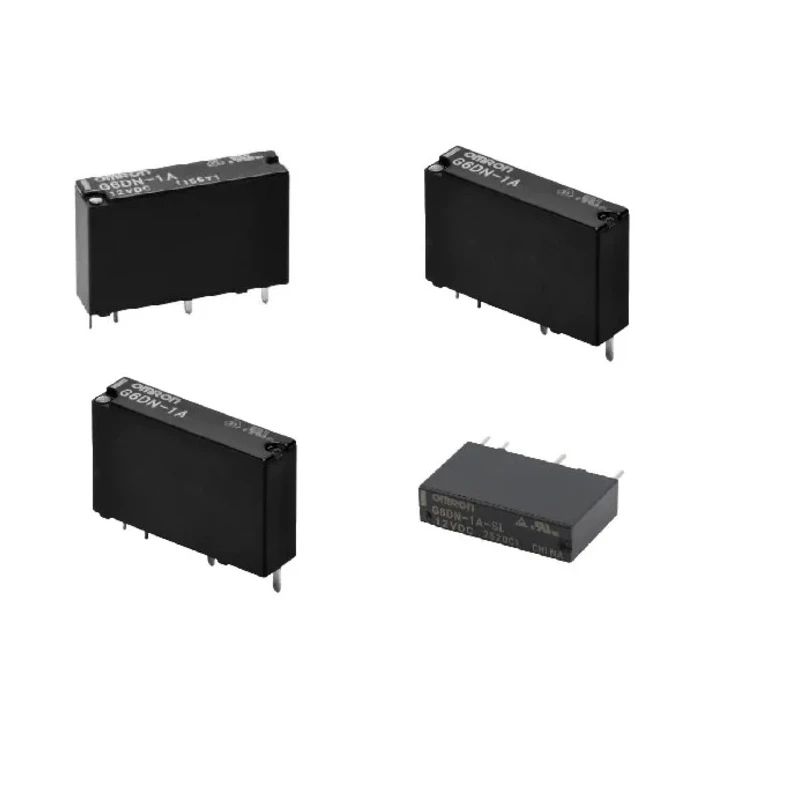

Omron PCB Relay 12V dc Coil 1A Switching Current SPST G6DN-1A-SL DC12

Omron G6DN-1A-SL DC12 PCB Relay is a slim, high-reliability power relay designed for PCB mount applications in industrial, electrical, and automation systems. The relay operates with a 12 V dc coil voltage and features a low coil power consumption of 140 mW, making it energy efficient for continuous use.

This device utilizes a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts that provide superior conductivity and longevity. It supports switching currents up to 1 ampere, operating at switching voltages up to 60 V dc and 240 V ac, making it suitable for low power switching tasks in control circuits.

The relay is designed with screw terminals for easy and secure PCB connection and has a compact form factor with dimensions of 50 mm length, 10 mm width, and 15 mm height, ideal for space-constrained PCB designs.

Operating temperature stability is ensured throughout -40°C to 70°C, allowing reliable performance in industrial and environmental extremes. With a coil resistance of 1.3 kΩ and contact resistance of only 100 mΩ, the G6DN series relay offers efficient electrical performance with minimal losses.

The product complies with RoHS environmental standards and is manufactured in China. This relay is extensively used in industrial automation, electrical control panels, signal conditioning, and other low power switching applications.

The relay features a Single Pole Single Throw (SPST) contact configuration with silver alloy contacts. Coil voltage is rated at 12 V dc with a coil resistance of 1.3 kiloohms and coil power of 140 mW. Switching capabilities include up to 60V dc and 240V ac voltages with a switching current of 1A.

Designed for PCB mounting, it has screw type terminals for secure connections. Operating temperature ranges from -40°C to a maximum of 70°C for robust performance. Dimensions include length 50mm, width 10mm, and height 15mm, suitable for slim PCB layouts.

Contact resistance is 100mΩ ensuring efficient electrical performance. The relay complies with RoHS standards, ensuring environmentally friendly manufacturing. Browse more Relays and power relay solutions for your industrial and automation needs at EnvMart.
