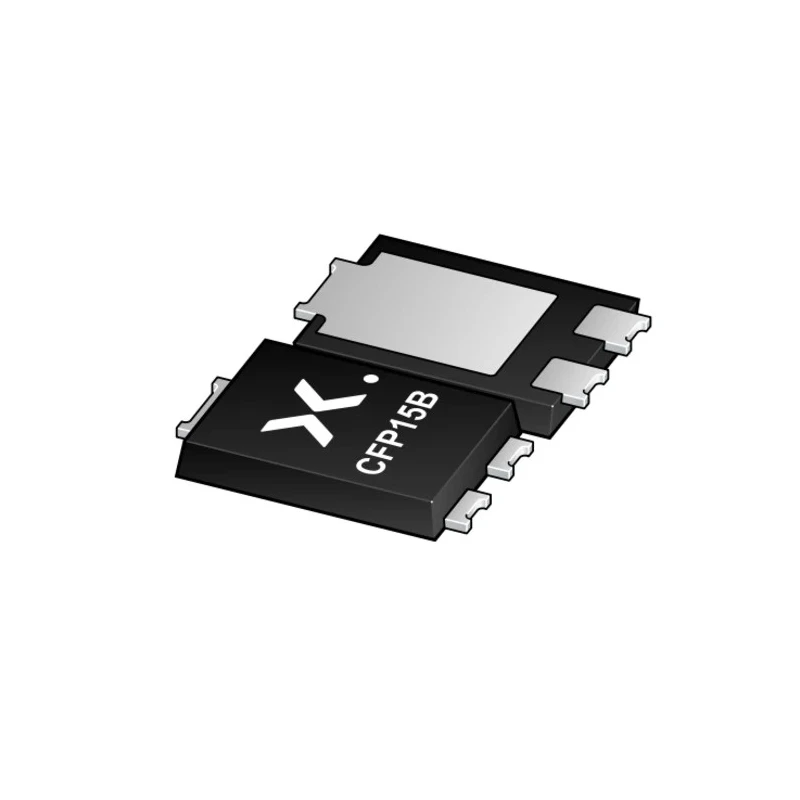

Nexperia 100 V 20 A Rectifier & Schottky Barrier Diode 3-Pin CFP15B PMEG100T200ELPEZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PMEG100T200ELPEZ |
| Mount Type | Surface |
| Series | PMEG100T200ELPE |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP15B |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Schottky Barrier |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 260A |
| Maximum Forward Voltage Vf | 840mV |
| Peak Reverse Recovery Time trr | 55ns |
Key Features
- Designed with low forward voltage for high efficiency.
- Incorporates Schottky barrier technology for low leakage current.
- 3-pin surface mount package suitable for compact PCB layouts.
- High surge current rating of 260 A for transient handling capability.
- Operates reliably at temperatures from -55°C up to 175°C.
- Fast recovery time of 55 ns minimizes switching losses.
- Compliant with Automotive Standard AEC-Q101 ensuring automotive quality.
- Ideal for DC-DC conversion, LED lighting, and switch mode power supplies.
Product Description
Nexperia PMEG100T200ELPEZ is a high-performance 100 V, 20 A rectifier and Schottky barrier diode in a CFP15B (SOT1289B) 3-pin surface mount device plastic package. It is designed for efficient power conversion applications, providing low forward voltage drop and low leakage current.
This diode exhibits a high peak non-repetitive forward surge current capability of 260 A and peak reverse current of 10 mA, making it capable of handling transient conditions effectively. It operates over a wide temperature range from -55°C minimum to 175°C maximum, supporting demanding thermal environments.
The device features a fast peak reverse recovery time of 55 ns which reduces switching losses and enhances overall system efficiency. The CFP15B package offers a small, flat lead surface mount footprint ideal for space-constrained applications.
Common industrial use cases include DC-DC converters, LED lighting systems, switch mode power supplies, freewheeling applications, reverse polarity protection, and OR-ing circuits. Its high power capability is supported by advanced clip-bonding technology which improves thermal and electrical performance.
The diode meets Automotive Standard AEC-Q101 qualifying it for automotive applications requiring reliable semiconductor components. Low forward voltage for enhanced efficiency. Schottky barrier technology ensures low leakage current.
Compact 3-pin CFP15B surface mount package. High surge current capability up to 260 A. Wide operating temperature range of -55°C to 175°C. Fast recovery time minimizes switching losses. Meets automotive quality standard AEC-Q101.
Used in DC-DC converters, LED lighting, power supplies. Explore more semiconductor and Schottky Diode products for advanced electronics and industrial applications within EnvMart’s extensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
It has a peak non-repetitive forward surge current rating of 260 A.
The maximum forward voltage drop is 840 mV.
The peak reverse repetitive voltage rating is 100 V.
It comes in a CFP15B (SOT1289B) 3-pin surface mount package.
The minimum operating temperature is -55°C.
The peak reverse current is 10 mA.
This diode complies with Automotive Standard AEC-Q101.
The peak reverse recovery time is 55 ns.
It is suitable for applications such as DC-DC converters, LED lighting, and switch mode power supplies.
This model has a pin count of 3.
This is a Schottky barrier rectifier.
