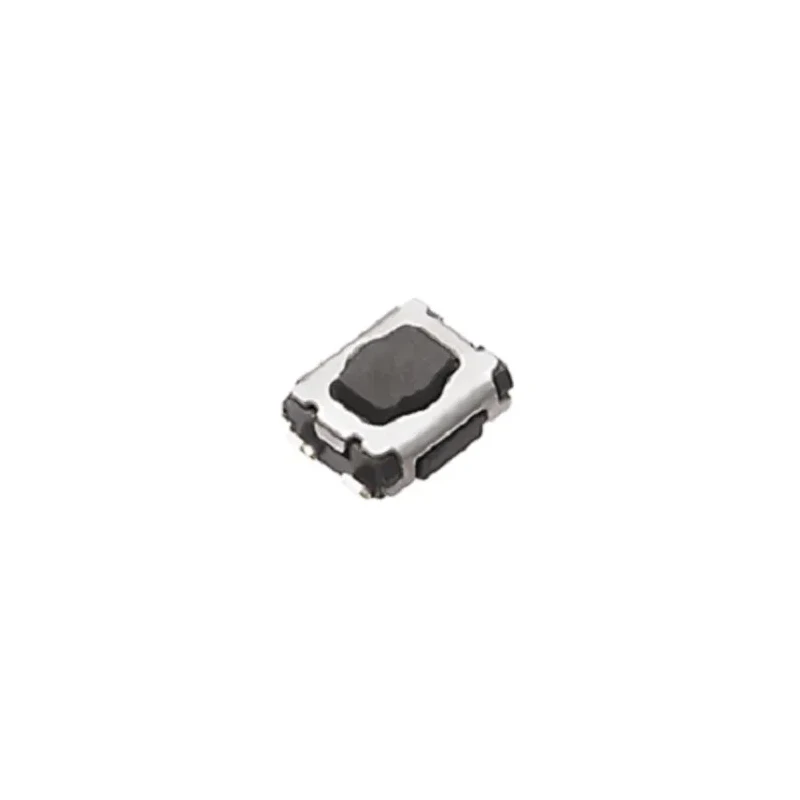

Panasonic Grey Tactile Switch Push Plate 2.2 mm SPST 20mA 15 V dc Surface EVPAAN02Q

Panasonic EVPAAN02Q tactile switch push plate is designed for industrial and electronic applications requiring precise, reliable switching in compact spaces. This SPST (Single Pole Single Throw) switch with a 2.2 mm grey push plate actuator provides excellent tactile feedback and stable electrical performance rated at 15 V dc and 20 mA contact current. Its surface-mount style and slim height of 1.7 mm allow seamless integration into portable electronic devices and keyless entry systems.

Made by Panasonic in Japan, the switch is constructed for durability with a maximum operating temperature of 85°C, enabling operation within a wide environmental temperature range (-40°C to +85°C). It features J Bend terminal types facilitating secure soldered connections and a 5 N operating force that ensures consistent activation without accidental triggering.

This switch is a snap action push-on type, ideal for clean, low power switching applications such as control switches in electronic equipment, keyboards, and automation systems. The compact size and sturdy design make it an excellent choice for manufacturers looking to enhance device user interfaces with reliable tactile switches.

Key features summarized include grey actuator color, push plate style, surface mount type, and a robust build quality adhering to quality standards without specific certifications. It is suited for industrial, manufacturing, electronic assembly, automation, and laboratory applications where precision tactile feedback and small form factor switches are required.

The switch supports a contact DC voltage of 15 V dc suitable for low power circuits. Features a grey push plate actuator for easy tactile feedback. Mount type is surface mount for versatile PCB placement. Maximum operating temperature is 85°C ensuring stable performance.

Switch contact current rating is 20 mA to support moderate signal switching. Compact design with height 1.7 mm facilitates use in portable electronic equipment. Operates with 5 N operating force providing a firm actuation touch.

Termination is via J Bend terminals for reliable electrical connections. Operates with push-on switch operation style in a snap action type mechanism. Manufactured in Japan with high-quality standards and robustness. Explore EnvMart's wide range of Tactile Switches and Panasonic products for dependable industrial and electronic components.
