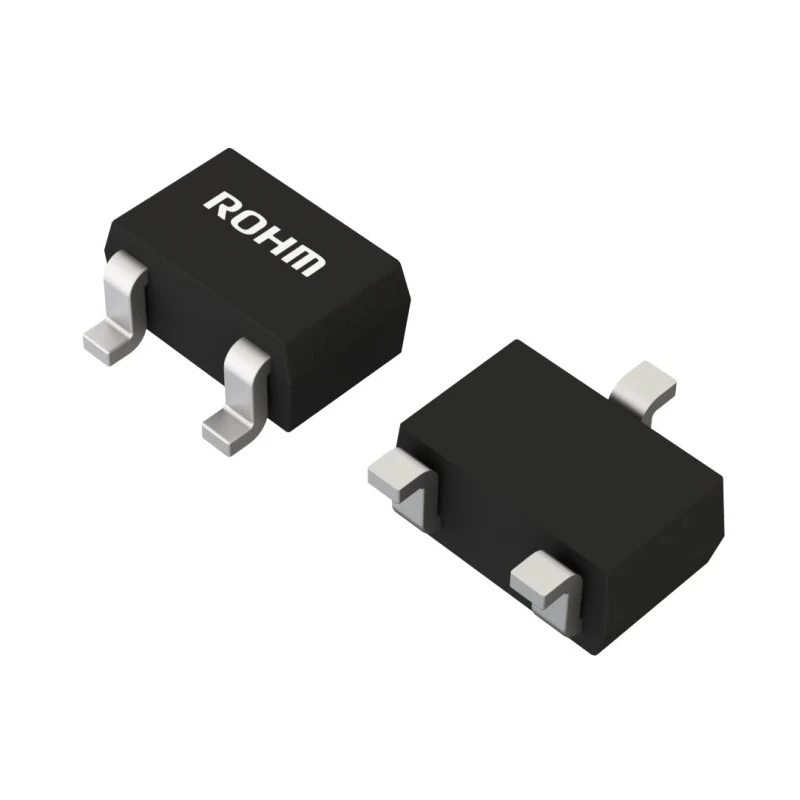

ROHM Schottky Diode 40 V 0.03 A 3-Pin Surface Mount SOT-323 Package RB715FM-40T106

ROHM RB715FM-40T106 is a Schottky diode featuring a maximum continuous forward current of 30 mA (0.03 A) and a peak reverse voltage of 40 V. It comes in a compact 3-pin SOT-323 surface mount package, which supports high-density PCB layouts and automated manufacturing.

The diode is designed with a 2x common cathode pair configuration, providing efficient rectification with an ultra-low forward voltage drop of 0.37 V, optimizing power efficiency and reducing heat dissipation. It supports a broad operating temperature range from -55°C to 150°C, ensuring stable performance in diverse industrial and commercial electronic applications.

Additionally, it has a peak non-repetitive forward surge current rating of 0.2 A, allowing it to withstand transient current spikes safely. The device exhibits minimal reverse current leakage of 1 µA, which contributes to overall energy efficiency. Its small mold type package enhances the diode's reliability and space efficiency on circuit boards.

This diode features a low forward voltage drop of 0.37 V for efficient rectification. Designed with a 2x common cathode pair diode configuration for enhanced performance. Operates reliably over a temperature range from -55°C to 150°C.

Peak reverse repetitive voltage rating of 40 V ensures durability in various applications. Ultra-low forward and reverse currents minimize power loss and heat generation. Compact small mold type package ideal for space-constrained PCB designs.

RoHS compliant, meeting modern environmental standards. Suitable for industrial and commercial electronics, including power rectification tasks. This diode has a peak non-repetitive forward surge current of 0.2 A providing transient overload capability.

High reliability surface mount package suitable for automated PCB assembly processes.

This Schottky Diode is widely used in power management circuits, switching power supplies, and other semiconductor devices where fast switching and low losses are critical. The SOT-323 package facilitates easy surface mounting for high-volume industrial production and electronic assembly.
