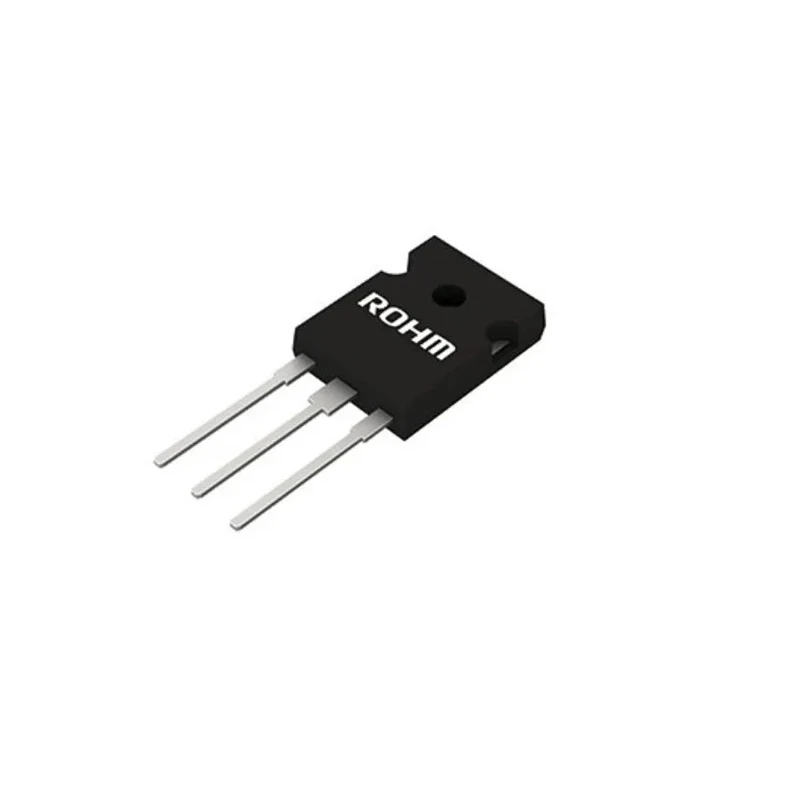

ROHM 1200 V 20 A Rectifier and Schottky Diode 3-Pin TO-247N SCS220KE2GC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | SCS220KE2GC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 1.6V |
Key Features
- The diode features a 3-pin TO-247N through hole package suitable for easy mounting.
- Maximum continuous forward current rating of 20 A ensures robust handling of power loads.
- Peak reverse repetitive voltage is 1200 V to withstand high voltage stresses.
- The diode has a maximum forward voltage drop of 1.6 V for efficient conduction.
- Configured as a single Schottky-type rectifier diode for fast switching and low forward voltage.
- Peak reverse current is low at 200 μA, minimizing leakage losses.
- Operating temperature range spans from -55°C to 175°C for demanding environments.
- Offers a peak non-repetitive forward surge current of 320 A for transient tolerance.
Product Description
ROHM SCS220KE2GC11 is a high-quality 1200 V 20 A Rectifier and Schottky Diode housed in a 3-pin TO-247N through hole package, engineered for power electronics applications. Its design supports fast switching speeds and reduced temperature dependence, making it ideal for efficient power conversion circuits.
This Schottky barrier diode is optimized for use in switch mode power supplies, uninterruptible power supplies (UPS), solar inverters, motor drives, air conditioners, and electric vehicle (EV) chargers. It supports continuous forward current of 20 A with superior surge tolerance and low forward voltage drop of 1.6 V which improves efficiency and reduces heat generation.
The device withstands a peak reverse repetitive voltage of 1200 V and features a low peak reverse current of 200 μA, contributing to high efficiency in power rectification applications. Operating temperature range from -55°C to 175°C enables reliability over wide thermal conditions encountered in industrial environments.
Its robust peak non-repetitive forward surge current capacity of 320 A ensures protection against transient current spikes, enhancing system stability. The through-hole mount type facilitates secure installation on power boards, and the device complies with RoHS standards indicating restriction of hazardous substances.
The diode offers high-speed switching capability for improved power management. Reduced temperature dependence supports stable operation over diverse conditions. The TO-247N package ensures reliable mechanical and electrical connectivity.
Suitable for diverse industrial applications including construction, manufacturing, and automotive electronics. RoHS compliance promotes environmentally responsible assembly and disposal.
This diode is a critical component for engineers designing efficient power supply and motor control systems. It balances electrical performance with durability and environmental compliance.
Explore more semiconductor and diode products from ROHM in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 20 A, allowing it to handle robust power loads effectively.
The peak reverse repetitive voltage is 1200 V, which enables the diode to withstand high voltage stresses in various applications.
The maximum forward voltage drop is 1.6 V, which contributes to efficient conduction and reduced heat generation.
The operating temperature range spans from -55°C to 175°C, making it suitable for demanding environments.
It has a peak non-repetitive forward surge current capacity of 320 A, providing tolerance against transient current spikes.
This diode is housed in a 3-pin TO-247N through hole package, facilitating secure installation on power boards.
The peak reverse current is low at 200 μA, which helps minimize leakage losses during operation.
Yes, the SCS220KE2GC11 complies with RoHS standards, indicating it meets restrictions on hazardous substances.
It is optimized for use in switch mode power supplies, UPS, solar inverters, motor drives, air conditioners, and EV chargers.
This model features a pin count of 3, which is typical for its TO-247N package configuration.
This model is configured as a single Schottky-type rectifier diode, designed for fast switching and low forward voltage.
The country of origin for the SCS220KE2GC11 is India.
