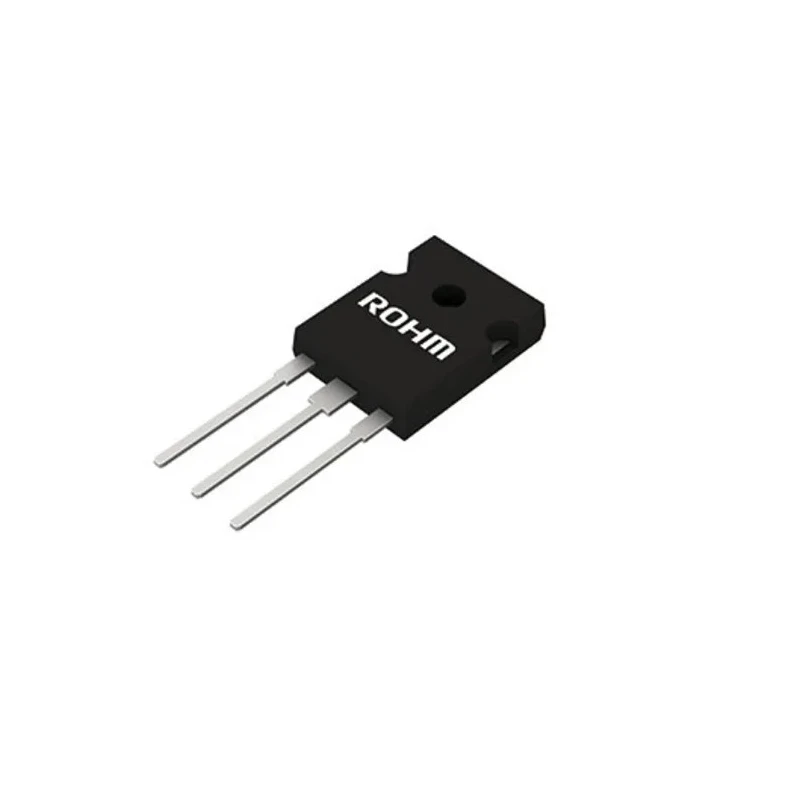

ROHM 1200 V 10 A Rectifier & Schottky Diode 3-Pin TO-247N SCS210KE2GC11
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | SCS210KE2GC11 |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-247N |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 170A |
| Maximum Forward Voltage Vf | 1.8V |
| Peak Reverse Recovery Time trr | 0ns |
Key Features
- The diode supports a maximum continuous forward current of 10 A.
- It has a peak reverse repetitive voltage rating of 1200 V for high voltage tolerance.
- Featuring a Schottky rectifier configuration, it allows high-speed switching with zero reverse recovery time.
- The package type is TO-247N with a through-hole mount for robust PCB installation.
- Operating temperature range extends from -55°C to 175°C for industrial environments.
- It offers a maximum forward voltage of 1.8 V, ensuring efficient conduction.
- Peak non-repetitive forward surge current is 170 A, handling transient currents safely.
- The device complies with RoHS standards for environmental safety.
Product Description
The ROHM SCS210KE2GC11 is a high-performance Rectifier and Schottky Diode designed for demanding power semiconductor applications. Rated at 1200 V peak reverse voltage and 10 A continuous forward current, this single diode configuration is housed in a rugged 3-pin TO-247N through-hole package, ensuring reliable installation and efficient heat dissipation.
This Schottky barrier diode features zero reverse recovery time, allowing for extremely fast switching speeds that enhance the performance of switch-mode power supplies, uninterruptible power supplies (UPS), solar inverters, motor drives, air conditioners, and electric vehicle (EV) chargers. Its low forward voltage drop of 1.8 V contributes to reduced power loss and improved energy efficiency.
The diode operates over a wide temperature range from -55°C to 175°C, making it suitable for harsh industrial and commercial environments. The device can safely handle peak non-repetitive forward surge currents up to 170 A, protecting circuits during transient events.
Maximum continuous forward current: 10 A. Peak reverse repetitive voltage: 1200 V. Zero reverse recovery time facilitates high-speed switching. Robust TO-247N 3-pin through-hole package design. Wide operating temperature from -55°C to 175°C.
Low forward voltage drop of 1.8 V improves efficiency. High surge current capability of 170 A for transient tolerance. RoHS compliant for environmental safety. This diode is ideal for industrial, HVAC, manufacturing, and renewable energy applications requiring reliable, high-speed rectification capabilities.
Explore more high-quality semiconductor components by ROHM and similar brands in the Electronics & Electricals category at EnvMart for your industrial and commercial needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 10 A.
This model has a peak reverse repetitive voltage rating of 1200 V.
It is housed in a TO-247N package type, which is designed for through-hole mounting.
The operating temperature range extends from -55°C to 175°C.
The maximum forward voltage drop of this diode is 1.8 V, which contributes to improved energy efficiency by reducing power loss during conduction.
It can safely handle a peak non-repetitive forward surge current of up to 170 A.
This diode is suitable for applications such as switch-mode power supplies, uninterruptible power supplies (UPS), solar inverters, motor drives, air conditioners, and electric vehicle (EV) chargers.
The device complies with RoHS standards for environmental safety.
It features a single diode configuration as a Schottky rectifier.
Zero reverse recovery time allows for extremely fast switching speeds, enhancing the performance of various power applications.
The peak reverse current of this diode is rated at 100 μA.
This model has a pin count of 3, suitable for its TO-247N package.
