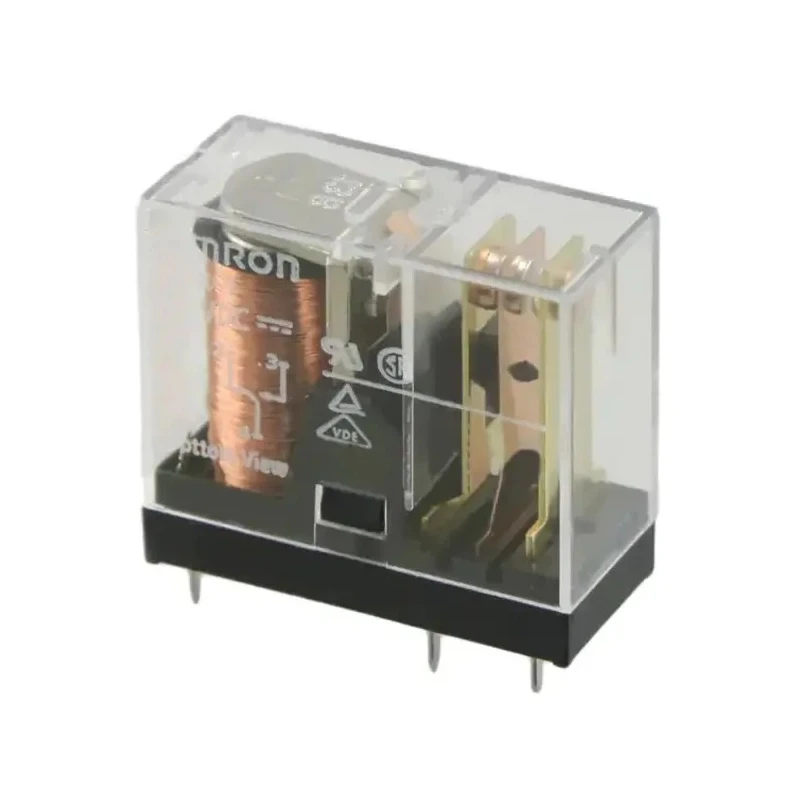

Omron PCB Non-Latching Power Relay, 24V DC Coil Voltage, 16A Switching Current, SPDT Contact Configuration G2R-1A-E DC24

Omron G2R-1A-E DC24 is a PCB Non-Latching Power Relay designed for reliable and efficient switching in electrical and automation applications. It features a 24V DC coil voltage and a single-pole double-throw (SPDT) contact configuration, providing versatility in control circuits requiring switching up to 16A current.

The relay is engineered with safety-oriented design, including a dielectric strength of 5,000 V between coil and contacts, offering excellent isolation. The surge resistance capability of 10,000 V enhances durability against transient voltages. Its compact body measures 29mm in length, 13mm in width, and 35.5mm in height, making it suitable for densely packed electronic assemblies.

This model operates effectively between -40°C and 70°C, covering a broad temperature range for industrial and commercial environments. Silver alloy contact material ensures robust conductivity and longevity. The contact resistance is low at 30mΩ, reducing power loss in switching operations. With switching power rated at 150W, and capable of switching voltages of 125V DC and 380V AC, the relay supports numerous applications in power relays and signal conditioning.

Coil resistance of 1.1kΩ and coil power consumption of 530mW provide efficient energy use, optimizing overall system performance. The device's plug-in terminal type facilitates easy mounting and replacement on PCB assemblies.

Compliant with RoHS standards, this relay is environmentally friendly. Originating from Indonesia, it adheres to stringent manufacturing quality controls.

This relay is ideal for industrial automation, electrical control panels, HVAC systems, manufacturing equipment, and power switching applications where high reliability and safety are paramount.

Explore additional Relays, contactors, and automation components in the Electronics & Electricals category at EnvMart to design comprehensive control systems and ensure optimal performance.

Designed for PCB mounting with a plug-in terminal type ensuring easy installation. Operates within a temperature range of -40°C to 70°C suitable for various environments. Features silver alloy contacts with low contact resistance of 30mΩ for efficient conductivity.

Compact size with dimensions of 29mm length, 13mm width, and 35.5mm height for space saving. Switching capacity up to 150W supporting both DC and AC voltages with 125V DC and 380V AC ratings. RoHS compliant relay ensuring environmentally friendly manufacturing standards.

Coil resistance of 1.1kΩ and power consumption of 530mW for low power operation. Provides high isolation with dielectric strength of 5,000 V between coil and contacts and surge resistance of 10,000 V.
