| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 1.16mm |
| Length | 4.5mm |
| Model | CD214A-S1D |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | CD214 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Low loss |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1V |

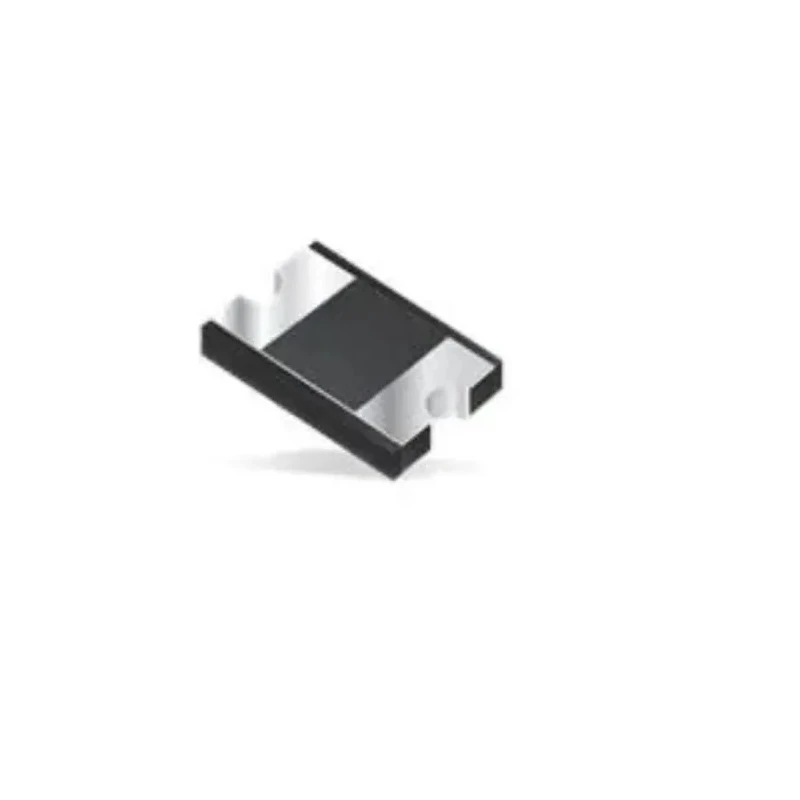

Bourns CD214A-S1D is a low loss Schottky diode designed for efficient power rectification in electronic circuits. Featuring a compact DO-214AC (SMA) surface mount package, this diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage rating of 200 volts.
The diode's glass passivated construction provides enhanced reliability and stability, ensuring long-lasting performance in a variety of applications. Its maximum forward voltage drop of 1 volt contributes to low power loss and high efficiency in power management circuits.
With a wide operating temperature range from -65°C to 175°C, the CD214A-S1D diode is suitable for demanding industrial, automotive, and consumer electronics environments. It can also handle peak non-repetitive forward surge currents of up to 30 amperes, making it resilient to transient overloads.
The device's low peak reverse current of 5 microamperes minimizes leakage, optimizing the overall system performance. The diode is RoHS compliant and free from halogen materials, supporting environmentally safe manufacturing standards. Furthermore, it is qualified to AEC-Q101 automotive standards, ensuring its suitability for automotive system applications.
Typical applications include power supplies, switching regulators, freewheeling diodes, and other rectification needs in industrial, automotive, and electronic component manufacturing sectors.
Compact low profile DO-214AC (SMA) surface mount package. Glass passivated construction for improved reliability. 1 A forward current rating with 200 V peak reverse voltage. High efficiency with low forward voltage drop of 1 V.
Wide temperature operation from -65°C to 175°C. Peak surge current capacity of 30 A for transient loads. Low leakage current of 5 µA for enhanced performance. RoHS compliant and halogen free for environmental safety. Automotive qualified to AEC-Q101 standard.
