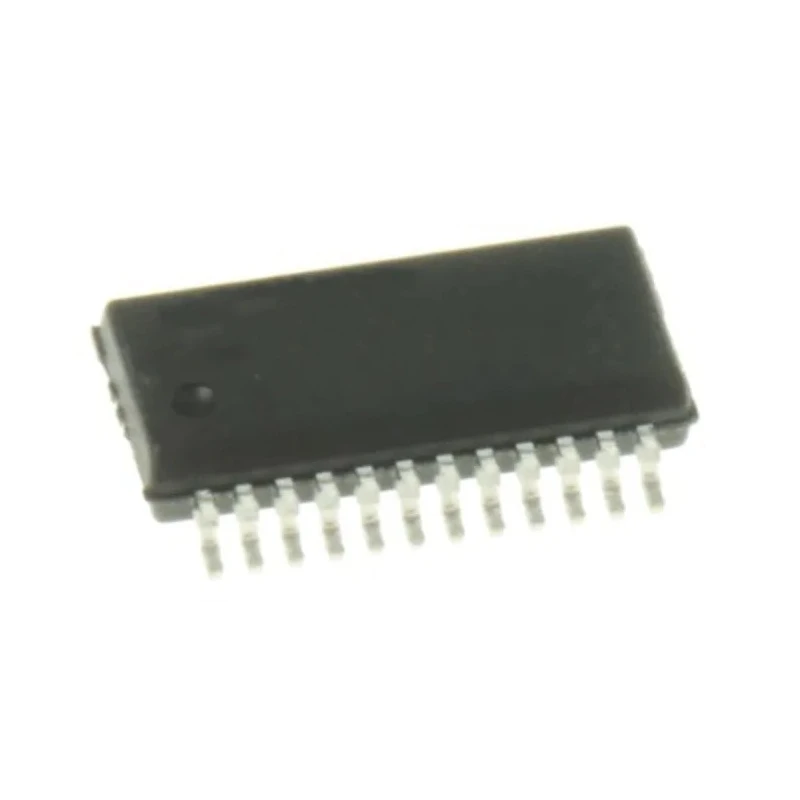

Maxim Integrated 16-Channel 12-Bit SAR ADC 300ksps, Surface Mount QSOP 24-Pin MAX1231BEEG+
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Accuracy | ±1 LSB INL, ±1 LSB DNL, No Missing Codes Overtemperature |
| Brand | Maxim Integrated |
| Height | 1.75mm |
| Length | 8.75mm |
| Model | MAX1231BEEG+ |
| Mount Type | Surface |
| Sampling rate | 300ksps |
| Series | MAX1231 |
| Input Type | Single Ended, Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | QSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | 3 Wire SPI, Serial, Microwire, QSPI |
| Architecture | SAR |
| Pin Count | 24 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 16 |
Key Features
- Features a successive approximation register (SAR) architecture for precise analog-to-digital conversion.
- Supports single-ended and differential inputs for flexible signal acquisition.
- Operates with a supply voltage range from 3.6V maximum to 5V minimum.
- Includes 16 ADC channels with an internal temperature sensor offering ±0.7°C accuracy.
- Provides an internal 2.5V reference with option for external differential reference input.
- Equipped with a 16-entry FIFO for efficient data buffering.
- Interfaces via 3-wire SPI, QSPI, Microwire, and serial protocols.
- Compact QSOP surface mount package with 8.75mm length and 1.75mm height.
Product Description
Maxim Integrated MAX1231BEEG+ is a high-performance 16-channel, 12-bit successive approximation register (SAR) analog-to-digital converter (ADC) designed for precision data acquisition and industrial control systems. Operating at a sampling rate of 300ksps, this ADC supports both single-ended and differential inputs, offering versatility in signal measurement.
The device is packaged in a compact 24-pin QSOP surface mount package measuring 8.75mm in length and 1.75mm in height, facilitating easy integration into modern electronic designs. Its operating voltage ranges from 3.6V maximum to 5V minimum, with low power consumption of approximately 1mA at full speed, making it suitable for battery-powered applications.
The MAX1231BEEG+ includes an internal temperature sensor with ±0.7°C accuracy, enhancing system monitoring capabilities. It also provides a 16-entry first-in/first-out (FIFO) buffer to streamline data handling and an internal 2.5V reference voltage with capability for external differential reference input.
Communication is achieved through a versatile 3-wire SPI-compatible interface supporting serial, Microwire, and QSPI protocols. The ADC maintains high accuracy with ±1 LSB integral and differential non-linearity over a wide temperature range from -40°C to 85°C, ensuring reliable performance in demanding industrial environments.
This device is ideal for applications including industrial automation, data logging, instrumentation, patient monitoring, system supervision, and other precise data acquisition tasks.
Features a SAR architecture for precise analog-to-digital conversion. Supports single-ended and differential inputs. Operates with supply voltage between 3.6V and 5V. Includes internal temperature sensor with ±0.7°C accuracy.
Provides 16-entry FIFO buffer for data management. Interfaces via SPI, QSPI, Microwire protocols. Compact 24-pin QSOP surface mount package. Wide operating temperature range of -40°C to 85°C. Accuracy: ±1 LSB INL and DNL, no missing codes over temperature.
Explore the extensive range of Maxim Integrated semiconductor devices and data converters at EnvMart for cutting-edge electronic component solutions.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MAX1231BEEG+ operates at a sampling rate of 300ksps.
This model features a resolution of 12 bits.
It supports both single-ended and differential inputs for flexible signal acquisition.
The device operates with a supply voltage range from 3.6V maximum to 5V minimum.
The QSOP package measures 8.75mm in length and 1.75mm in height.
The MAX1231BEEG+ includes 16 ADC channels.
The internal temperature sensor has an accuracy of ±0.7°C.
It interfaces via 3-wire SPI, QSPI, Microwire, and serial protocols.
The maximum operating temperature is 85°C and the minimum is -40°C.
The 16-entry FIFO buffer is used for efficient data management and buffering.
The country of origin for this product is India.
