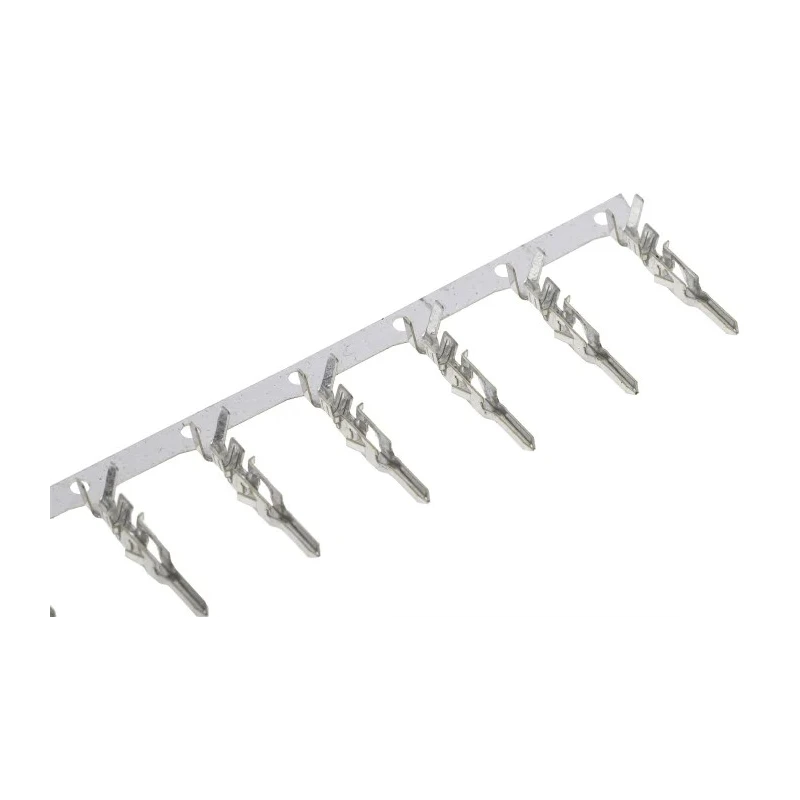

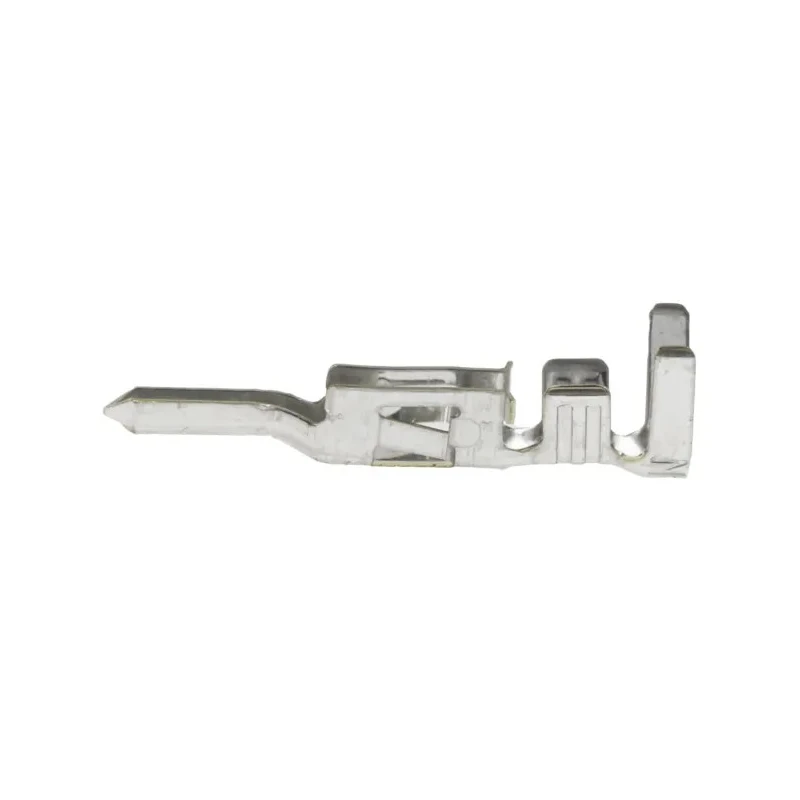

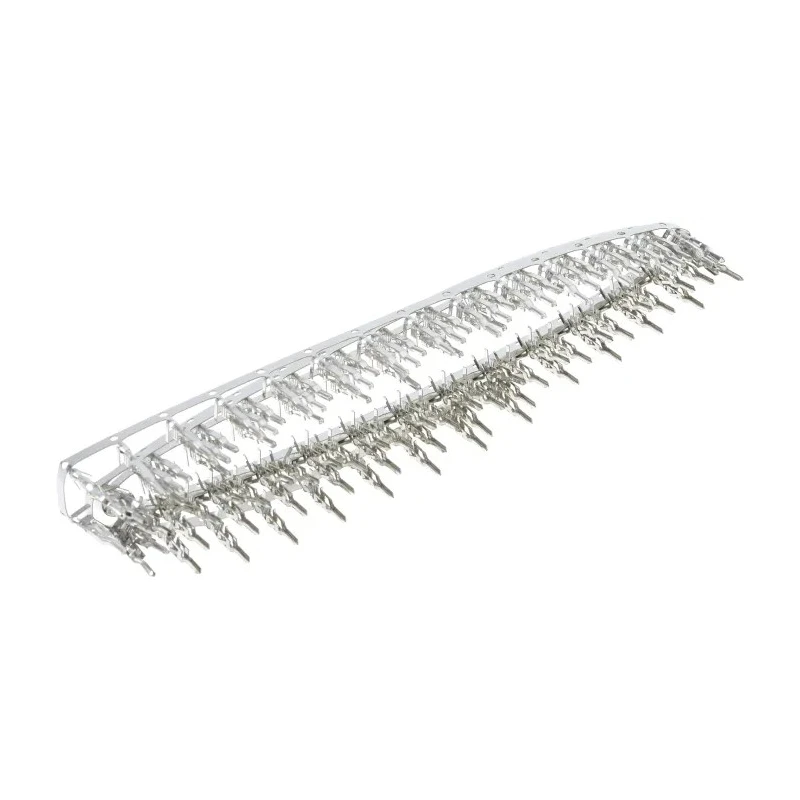

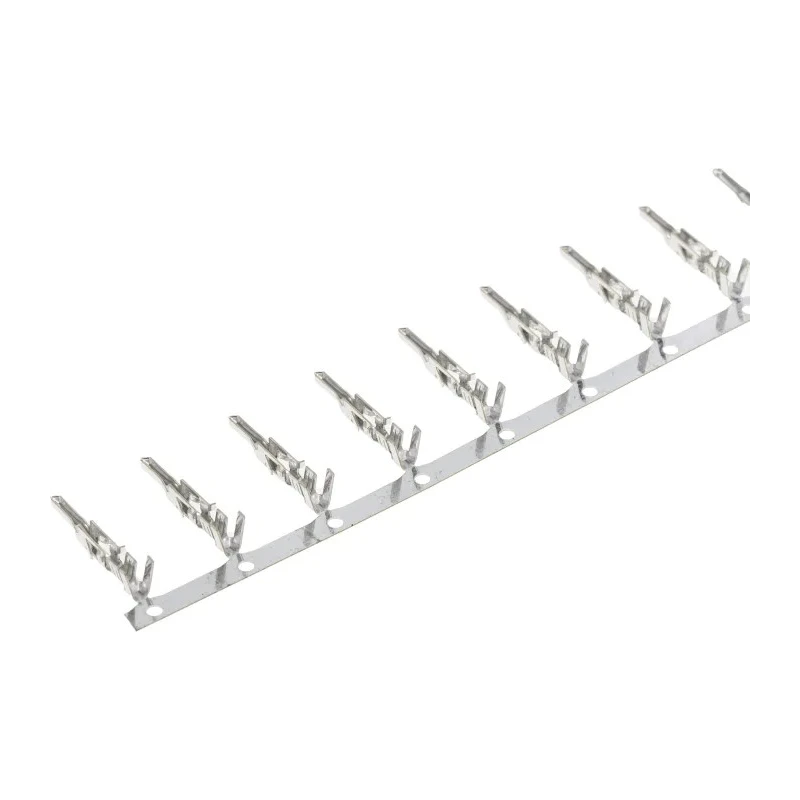

Molex 5558 Series Male Crimp Terminal, 22 AWG Min Crimp, 16 AWG Max, Brass Contact with Tin Plating, 9A Current, 39-00-0081

Name: Molex 5558 Series Male Crimp Terminal, 22 AWG Min Crimp, 16 AWG Max, Brass Contact with Tin Plating, 9A Current, 39-00-0081
Brand: Molex
SKU: 304620
Price: 0.07 USD
Availability: InStock



Category Crimp Terminal Brand Molex Condition New

Specifications

Country of Origin	United States
Brand	Molex
Current	9A
Gender	Male
Contact Material	Brass
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	5559 Mini-Fit Jr. Plug Housings, 42475 Mini-Fit BMI Plug Housings, 30068 Mini-Fit TPA Plug Housings
Contact Plating	Tin
Maximum Wire Size mm²	1.3mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Maximum Contact Resistance	10mΩ

Key Features

Brass contact with tin plating ensures durability and excellent conductivity.
Compatible with 5559 Mini-Fit Jr., 42475 Mini-Fit BMI, and 30068 Mini-Fit TPA plug housings.
Maximum contact resistance of 10 milliohms for efficient current flow.
Wide operating temperature range from -40°C to 105°C suitable for harsh environments.
Termination type is crimp, providing a mechanically strong and airtight connection.
Multiple points of contact and locking tangs enhance connection reliability and security.
Ideal for use in consumer electronics, automotive, industrial automation, and communication applications.

Product Description

Molex 39-00-0081 male crimp terminal is engineered to support high-reliability electrical connections in a variety of industrial and commercial applications. Suitable for wire sizes from 22 AWG minimum to 16 AWG maximum, it handles currents up to 9 amperes with a maximum contact resistance of 10 milliohms, ensuring efficient electrical flow.

This crimp terminal features a brass contact material plated in tin to provide excellent conductivity and corrosion resistance. The locking tang design securely holds the wire in place, preventing connection loss due to vibration or shock.

Capable of operating in challenging industrial environments, the terminal withstands temperatures ranging from -40°C up to 105°C. It is compatible with multiple Mini-Fit Jr. and Mini-Fit plug housing series such as 5559, 42475 BMI, and 30068 TPA, offering design flexibility for connector assembly.

The crimp termination method creates an airtight and mechanically robust join, preventing moisture ingress and enhancing connection durability over extended periods. This makes it particularly suitable for applications in automotive, industrial automation, consumer electronics, and communications sectors.

Brass contact with tin plating for enhanced conductivity and corrosion resistance. Supports a maximum current of 9A with contact resistance up to 10mΩ. Operates reliably between -40°C and +105°C. Designed for 22 AWG to 16 AWG wire sizes with crimp termination.

Locking tangs ensure secure wire retention in Mini-Fit connector housings. Compatible with 5559 Mini-Fit Jr., 42475 Mini-Fit BMI, and 30068 Mini-Fit TPA housings. Ideal for demanding industrial and automotive electrical applications.

Choose this Molex 5558 Series male Crimp Terminal for secure, reliable connectivity in high-performance electronics and power distribution systems. Explore more connectors and accessories compatible with Molex products on EnvMart.
