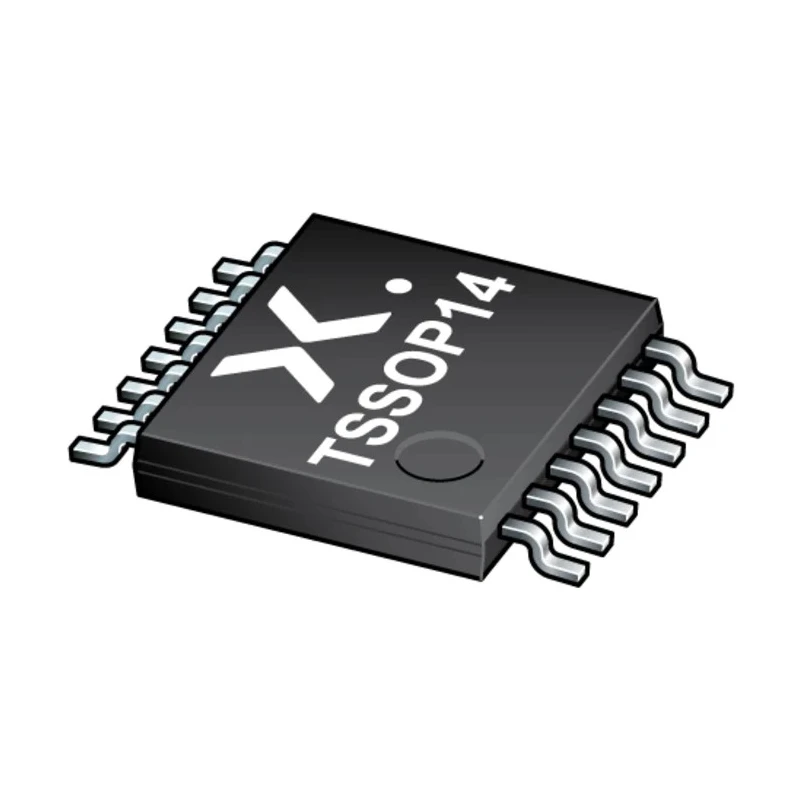

Nexperia 4 2-Input NAND Schmitt Trigger Input Logic Gate 14-Pin TSSOP 74LVC00APW,118
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 950μm |
| Length | 5.1mm |
| Model | 74LVC00APW,118 |
| Width | 4.5mm |
| Mount Type | Surface |
| Output type | Single Ended |
| Input Type | Schmitt Trigger |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 14 |
| Number of Elements | 4 |
| Maximum Supply Voltage | 3.6V |
| Logic Family | 74LVC |
| Logic Function | NAND |
| Minimum Supply Voltage | 1.2V |
| Maximum High Level Output Current | -24mA |
| Maximum Low Level Output Current | 24mA |
| Number of Inputs per Gate | 2 |
| Texas Instruments SN74LVC00APWR, Quad 2-Input NAND Logic Gate, 14-Pin TSSOPBrand | Texas Instruments |
Key Features
- Contains four 2-input NAND gates with Schmitt trigger input technology.
- Suitable for mixed 3.3 V and 5 V logic level applications.
- Surface mount device with a 14-pin TSSOP package ensures space-efficient PCB design.
- Operating temperature range from -40°C to 125°C supports robust industrial environments.
- Compatible with both 3.3 V and 5 V systems, enabling voltage translation capabilities.
- Maximum supply voltage of 3.6 V and minimum of 1.2 V for flexible power options.
- Maximum high-level output current of -24mA and low-level output current of 24mA for reliable signal integrity.
- Compact dimensions of 5.1 mm length, 4.5 mm width, and 950 μm height reduce board space use.
Product Description
Nexperia 74LVC00APW,118 4 2-Input NAND Schmitt Trigger Input Logic Gate is a high-performance semiconductor device designed to provide four NAND gates with Schmitt trigger inputs in a 14-pin TSSOP form factor. This device ensures stable operation with input tolerance to slower signal transitions, making it ideal for mixed voltage logic environments including 3.3 V and 5 V systems.
The 74LVC00APW,118 is surface mount packaged and is well-suited to demanding industrial and commercial applications such as electronic circuit design, embedded systems, and digital logic implementations in manufacturing equipment and communication devices. Its operating temperature range from -40°C to 125°C ensures reliability across various climatic conditions.
The logic family is 74LVC, optimized for low power consumption, fast switching times, and compatibility with TTL and CMOS input levels. The integrated Schmitt trigger inputs provide improved noise immunity and signal integrity, crucial for advanced electronic and embedded system designs.
Four 2-input NAND gates with Schmitt trigger inputs enhance noise immunity and signal stability. Supports mixed 5 V and 3.3 V logic operations, broadening usage across different voltage domains. Compact 14-pin TSSOP package aids in reducing PCB footprint and improving design density.
Wide supply voltage operation between 1.2 V and 3.6 V accommodates various power options. Industrial-grade temperature specs enable reliable application in harsh environments. Low propagation delay and improved signal integrity for complex layouts and high-speed circuits.
Single-ended output type optimizes interfacing with other digital components.
This device is excellently suited for industrial automation, instrumentation, telecommunications, and general-purpose digital electronic systems where reliable NAND Logic Gate functionality with enhanced input tolerance is required. With its robust design and versatile operating conditions, the Nexperia 74LVC00APW,118 is a fundamental building block for modern electronic assemblies.
Explore the full range of Nexperia semiconductor products and similar logic ICs to enhance your industrial electronic projects and designs with quality assured components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -40°C to 125°C, making it suitable for robust industrial environments.
The maximum supply voltage for the 74LVC00APW,118 is 3.6 V, allowing for flexible power options in various applications.
This model contains four 2-input NAND gates, providing multiple logic functions in a single package.
The dimensions of this unit are 5.1 mm in length, 4.5 mm in width, and 950 μm in height, ensuring a compact design for PCB layouts.
It features Schmitt trigger inputs, which enhance noise immunity and signal stability for reliable operation.
The output type of the 74LVC00APW,118 is single-ended, optimizing interfacing with other digital components.
This model belongs to the 74LVC logic family, which is optimized for low power consumption and fast switching times.
The maximum high-level output current is -24 mA, while the low-level output current is 24 mA, ensuring reliable signal integrity.
Yes, it is suitable for mixed 3.3 V and 5 V logic level applications, enabling voltage translation capabilities.
This model is packaged in a 14-pin TSSOP, which supports space-efficient PCB design.
The minimum supply voltage for this logic gate is 1.2 V, providing flexibility in power supply options.
This model is well-suited for electronic circuit design, embedded systems, and digital logic implementations in industrial automation and telecommunications.
