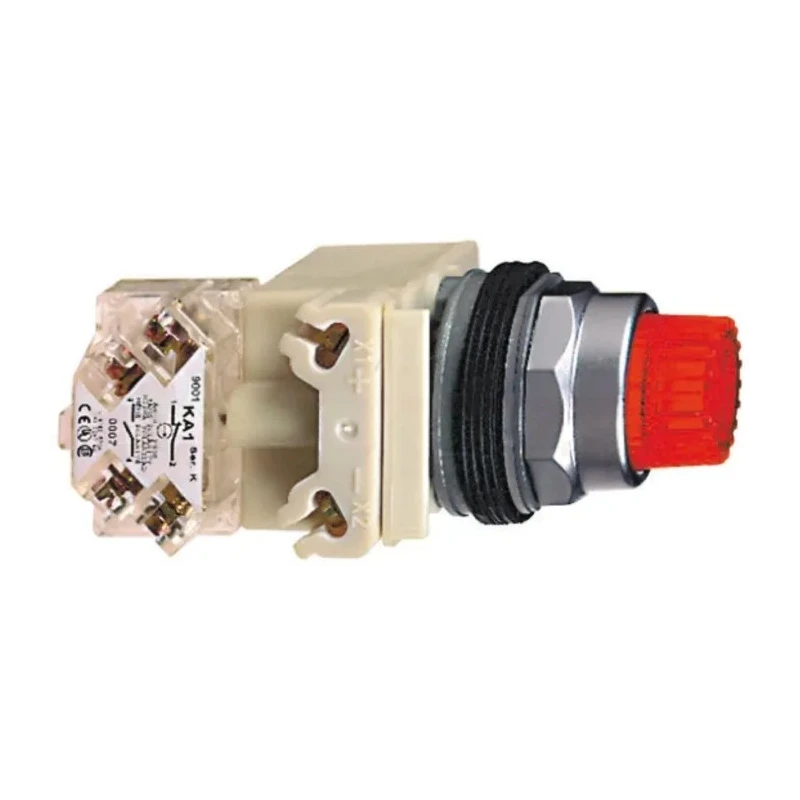

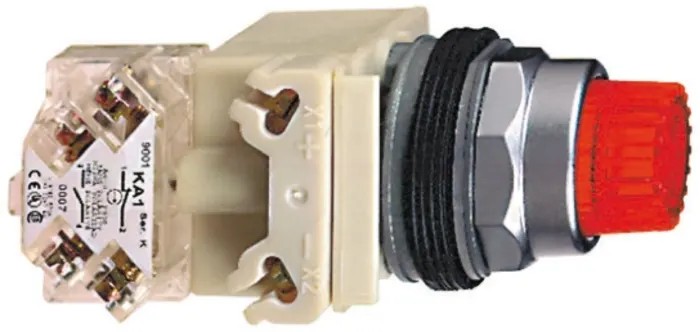

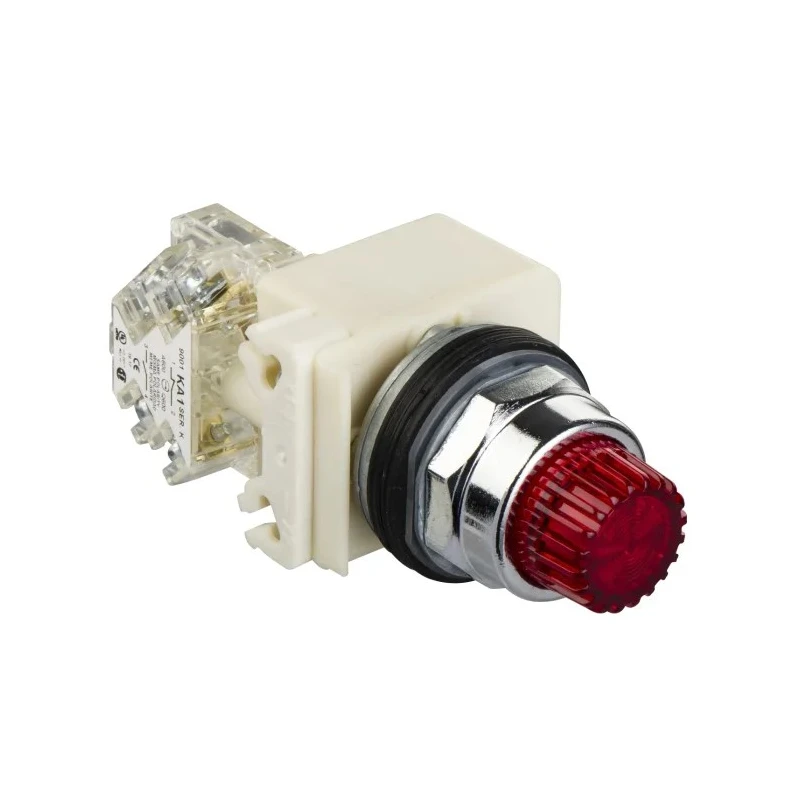

Schneider Electric Harmony 9001K Series Illuminated Push Button Switch Spring Return Panel Mount 30 mm 9001K2L38LRRH13
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 42mm |
| Length | 103mm |
| Model | 9001K2L38LRRH13 |
| IP Rating | IP66 |
| Width | 54mm |
| Mount Type | Panel |
| Series | Harmony 9001K |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Switch Configuration | 1 CO |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 30 mm |
| Terminal type | Screw |
| LED Colour | Red |
| Switch Operation | Spring Return |
| Actuator Colour | Red |
| Contact DC Voltage | 125V |
| Actuator Style | Octagonal |
| Switch Contact Current | 550mA |
| Contact AC Voltage | 600V ac |
| Legend | Unmarked |
Key Features
- The switch is illuminated with a red LED for clear visibility.
- It offers spring return operation ensuring momentary contact functionality.
- Designed to mount on panels with an octagonal actuator style for easy engagement.
- It has a robust IP66 rating, suitable for industrial environments.
- Operating temperature ranges from -25°C to 70°C for reliable performance.
- Contact configuration is 1 CO (SPDT) supporting up to 550mA current.
- The switch supports contact AC voltage up to 600V and DC voltage up to 125V.
- Screw terminal type ensures secure electrical connections.
Product Description
Schneider Electric 9001K2L38LRRH13 Harmony 9001K Series Illuminated Push Button Switch is engineered for industrial and commercial panel control applications. It features a red illuminated LED with spring return action, designed to fit a 30 mm panel cutout making it ideal for control station assemblies.
This push button switch comes with a single-pole, double-throw (SPDT) contact configuration offering reliable switching performance under various operating conditions. The octagonal actuator style and panel mount design provide ergonomic and secure installation.
Rated for a maximum AC voltage of 600 V and DC voltage of 125 V, it supports contact currents up to 550 mA, making it suitable for low power control circuits. The switch’s IP66 rating ensures excellent resistance against dust ingress and water jets, ideal for harsh industrial environments.
Operating temperature range from -25°C to 70°C enhances durability in diverse climates. The switch includes screw terminals for easy wiring, themed in red for operational clarity and compliance with safety standards.
Standards and approvals include EN/IEC 60947-5-1, CSA C22.2 No 14, EN/IEC 60947-5-4, JIS C 852, UL 508, JIS C 4520, EN/IEC 60947-1, and NEMA UL 508 ensuring international compliance and reliability.
The switch’s illuminated design enhances user visibility and operational status indication. Spring return mechanism enables momentary control functions to enhance machine safety. IP66 rating protects the switch against industrial contaminants and moisture ingress.
Compact dimensions facilitate easy integration into control panels of various sizes. Red screw terminals provide secure and durable electrical connections.
This Push Button Switch is widely used in industrial automation, manufacturing equipment panels, HVAC control systems, and laboratory instrumentation, ensuring robust and reliable control inputs.
Explore a wide range of Schneider Electric control products at EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a single-pole, double-throw (SPDT) contact configuration, allowing for versatile switching applications.
It supports a maximum AC voltage of 600V and a DC voltage of 125V, making it suitable for various low power control circuits.
The switch is rated for a contact current of up to 550mA, facilitating reliable operation in low power applications.
The switch has an IP66 rating, providing excellent protection against dust ingress and water jets, suitable for industrial environments.
This unit has dimensions of 42mm in height, 54mm in width, and 103mm in length, designed for easy panel mounting.
It operates effectively within a temperature range of -25°C to 70°C, ensuring reliable performance in various climates.
The switch features screw terminals, which ensure secure electrical connections during installation.
It has an octagonal actuator style, which is designed for ergonomic engagement and secure installation on panels.
This model is widely used in industrial automation, manufacturing equipment panels, HVAC control systems, and laboratory instrumentation.
The switch is illuminated with a red LED, enhancing visibility and operational status indication.
The required panel cutout size for this push button switch is 30 mm, facilitating straightforward integration into control panels.
It complies with several safety standards including EN/IEC 60947-5-1 and UL 508, ensuring reliability and international compliance.
