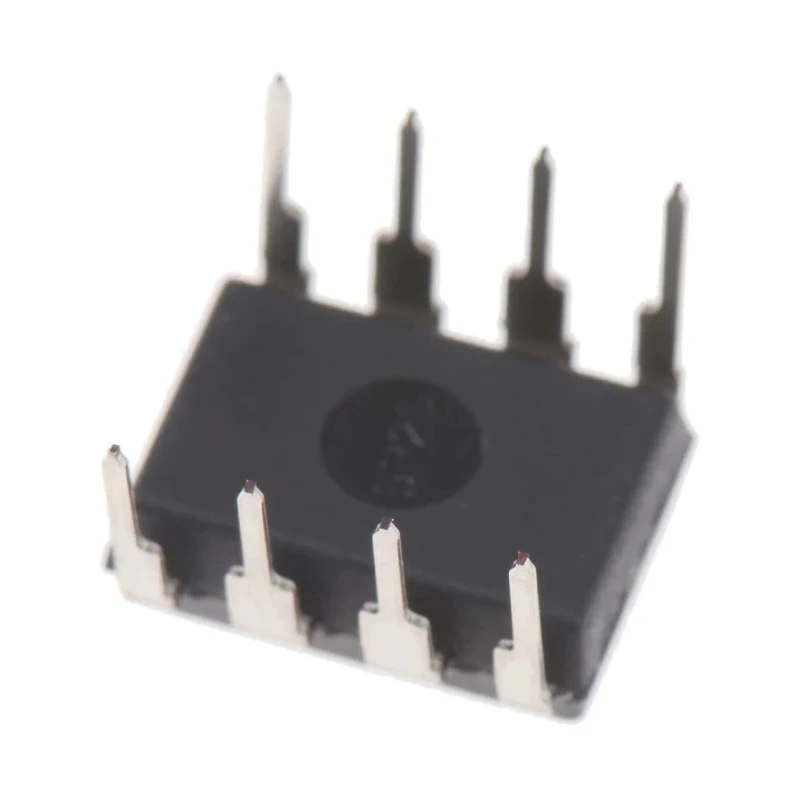

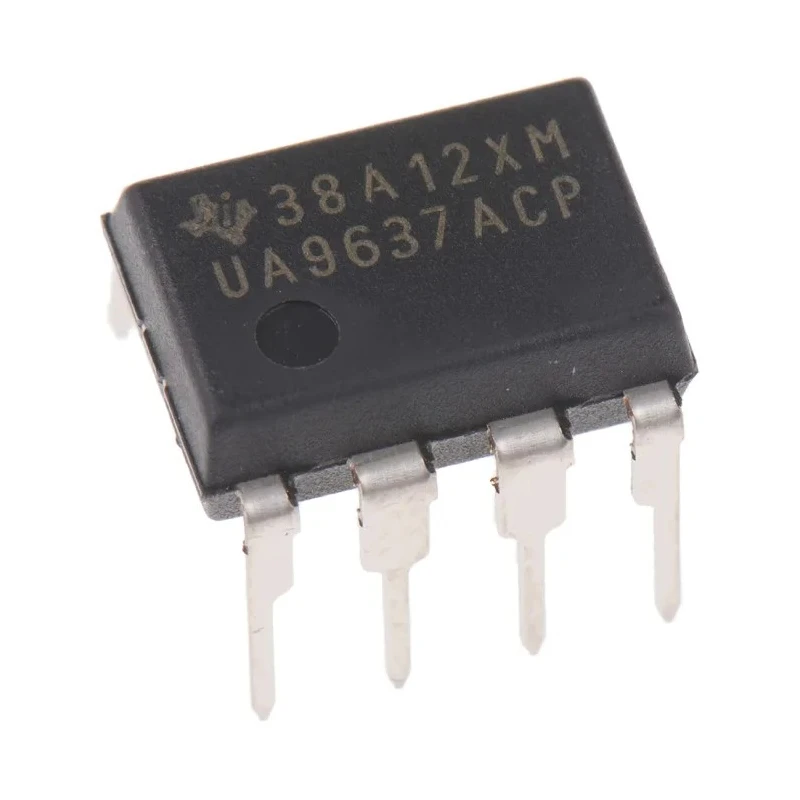

Texas Instruments TTL Logic Family Line Receiver, Differential Input, Through Hole Mount, PDIP 8-Pin UA9637ACP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 10.16mm |
| Model | UA9637ACP |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | UA9637AC |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| IC Type | Receiver |
| Pin Count | 8 |
| Maximum Supply Voltage | 5.25V |
| Logic Family | TTL |
| Logic Function | Line Receiver |
| Minimum Supply Voltage | 4.75V |
| Maximum Propagation Delay Time @ CL | 25ns |
| Supply Current | 50mA |
| Maximum Low Level Output Current | 50mA |
Key Features
- Operates with a minimum supply voltage of 4.75V and maximum up to 5.25V.
- Maximum propagation delay time of 25 nanoseconds ensures fast signal processing.
- Designed for operating temperatures ranging from 0°C to 70°C for standard industrial use.
- Low supply current of 50mA helps optimize power consumption.
- Compact dimensions of 10.16mm length, 6.6mm width, and 5.08mm height suitable for constrained PCB layouts.
- Through-hole mounting with PDIP package simplifies manual or automated assembly.
- Equipped with 8 pins supporting TTL logic family compatibility in line receiver functions.
- Non-automotive, non-certified general industrial semiconductor component.
Product Description
The Texas Instruments UA9637ACP is a TTL logic family line receiver IC designed for reliable electronic signal interfacing in industrial and commercial applications. It features a differential input type and is housed in an 8-pin PDIP package suitable for through-hole mounting, facilitating easy integration into printed circuit boards.
Operating over a supply voltage range of 4.75V to 5.25V, this line receiver delivers a maximum propagation delay time of 25ns at typical load conditions, supporting efficient data transmission and processing in communication and control circuits.
The component is rated for operation within 0°C to 70°C ambient temperature, making it suitable for standard environmental conditions prevalent in most manufacturing and industrial setups. Its supply current consumption of 50mA aids in maintaining power efficiency while providing consistent performance.
Physically, the UA9637ACP measures 10.16mm in length, 6.6mm in width, and 5.08mm in height, enabling compact PCB design especially where space is limited. The through-hole PDIP form factor offers robust mechanical stability and ease of installation.
Operates with supply voltages between 4.75V and 5.25V. Maximum propagation delay time of 25ns for fast switching. Temperature range suitable for industrial applications of 0°C to 70°C. Low supply current of 50mA aids power efficiency.
Compact 8-pin PDIP package with through-hole mounting. Differential input type supports RS-422 line receiver applications. TTL logic family compatible for broad electronic use. Non-automotive grade semiconductor device.
This line receiver IC is ideal for electronic systems involving data communications and signal conditioning, commonly deployed in industrial machines, laboratory instruments, and electronic interface circuits. Its mature packaging and electrical characteristics contribute to optimized production efficiency and circuit reliability.
Explore more advanced semiconductor and Line Interface ICs from Texas Instruments and related products within the EnvMart catalogue to fulfill diversified technical requirements efficiently.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of 4.75V to 5.25V.
The maximum propagation delay time is 25 nanoseconds, ensuring efficient signal processing.
It is designed to operate within a temperature range of 0°C to 70°C, suitable for standard industrial applications.
The supply current for this model is 50mA, helping to optimize power consumption.
This unit measures 10.16mm in length, 6.6mm in width, and 5.08mm in height, making it suitable for compact PCB layouts.
It features a differential input type, which is essential for line receiver applications.
The UA9637ACP is housed in an 8-pin PDIP package, designed for through-hole mounting.
This model has a pin count of 8, supporting TTL logic family compatibility.
It is suitable for electronic systems involving data communications and signal conditioning, commonly used in industrial machines and laboratory instruments.
Yes, it is compatible with the TTL logic family, making it versatile for various electronic applications.
The maximum low-level output current for this model is 50mA.
The country of origin for the UA9637ACP is India.
