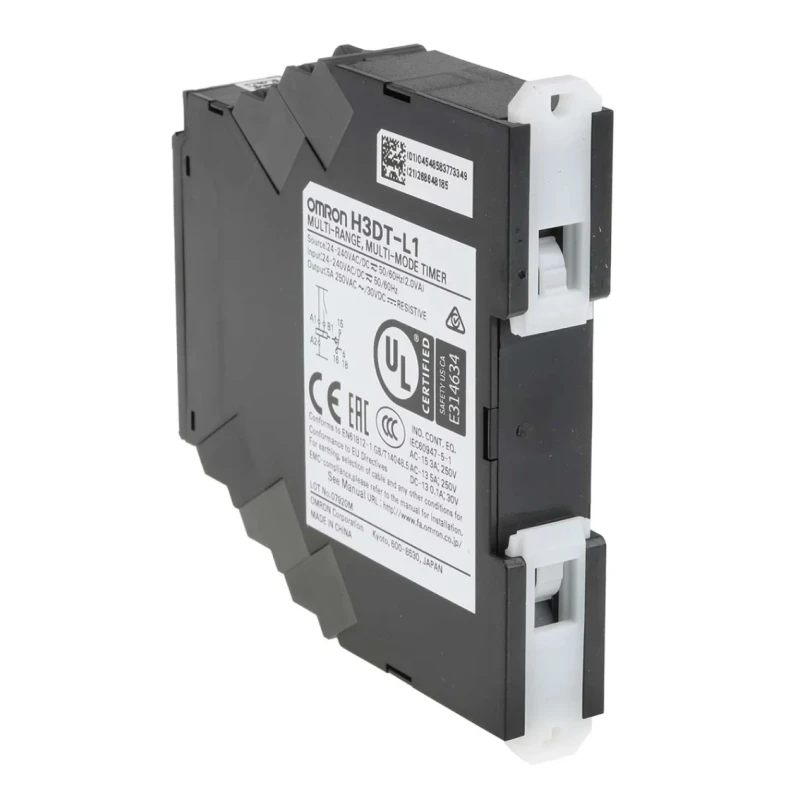

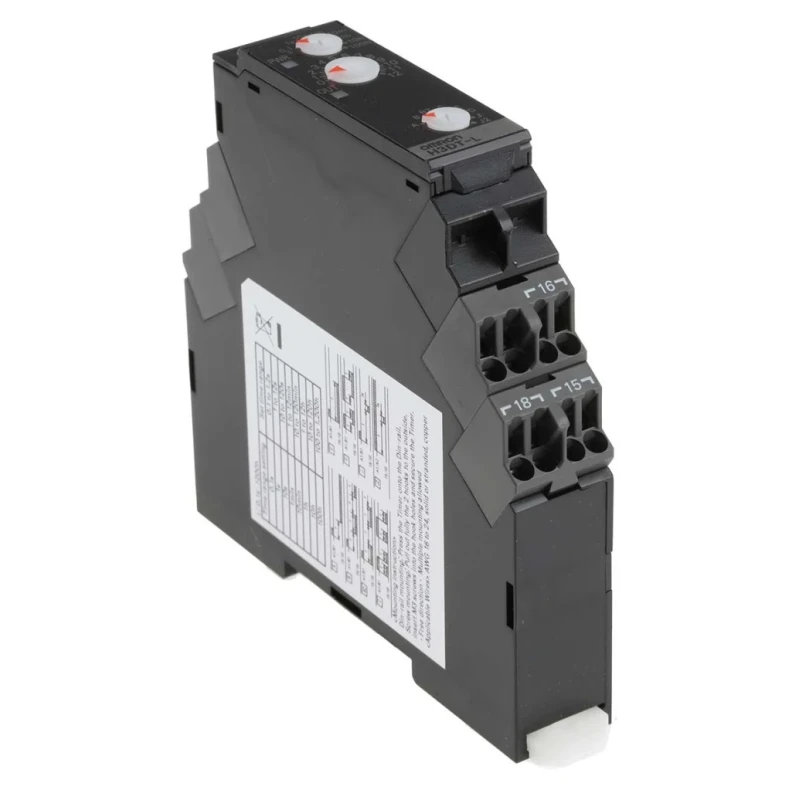

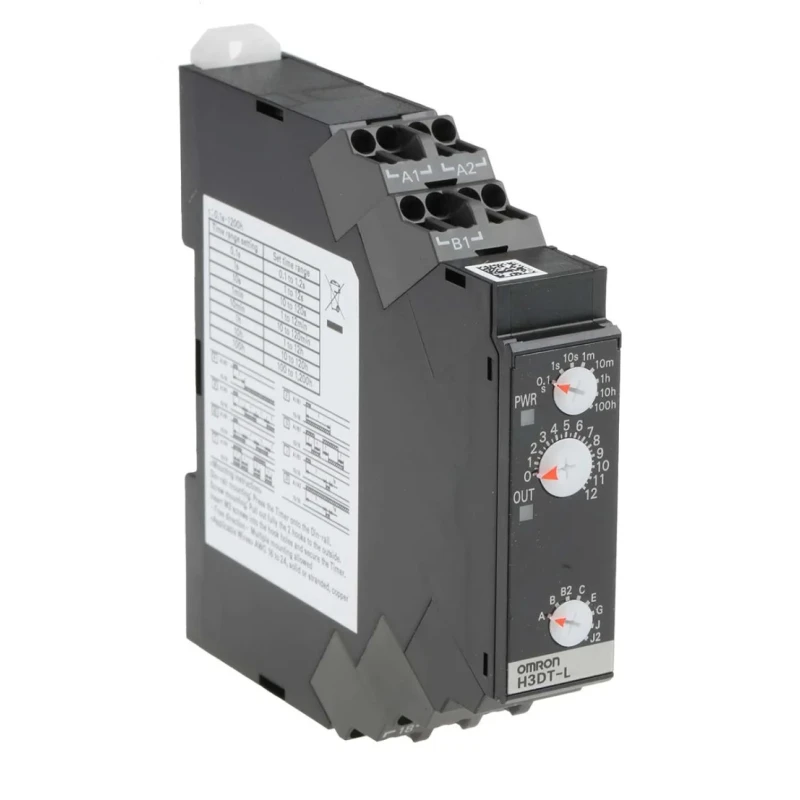

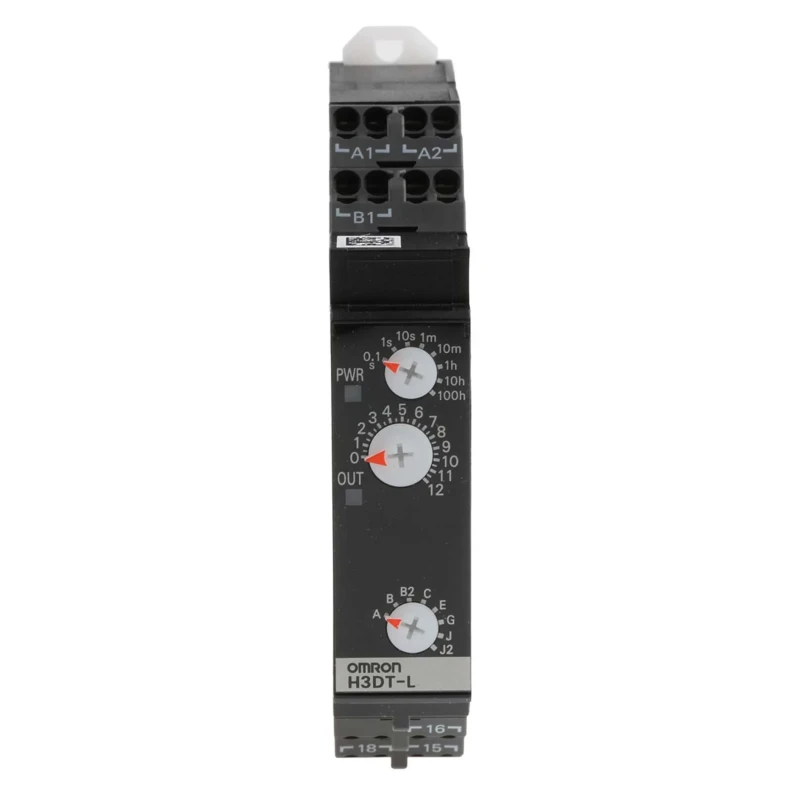

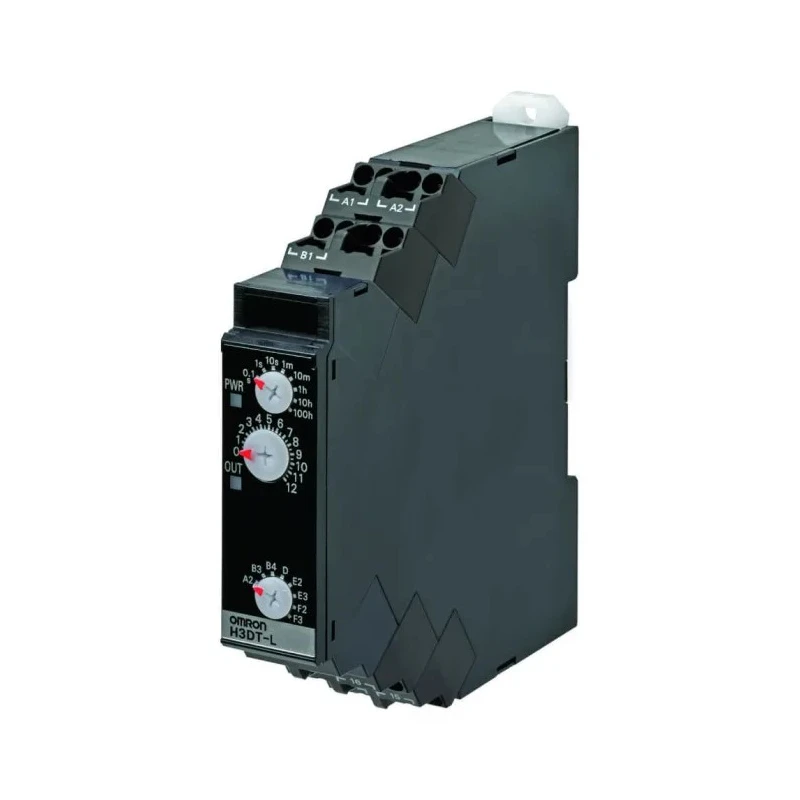

Omron DIN Rail Timer Relay Multifunction 24-240 V AC/DC 2-Contact SPDT 0.1s-1200h H3DT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 100mm |
| Function | Offset Double Ring End |
| Length | 17.5mm |
| Model | H3DT |
| IP Rating | IP20, IP30 |
| Mode | Multifunction |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | H3DT |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.1 s to 1200 h |
| Terminal type | Push-in |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V ac |
| Contact Current | 5A |
| Supply DC Voltage | 240 V dc |
| Timing Adjustment | Dial |
| Supply AC Voltage | 24, 240V ac |
Key Features
- Operates on a supply voltage ranging from 24 V to 240 V AC/DC.
- Features multifunction timing suitable for diverse industrial automation needs.
- Includes 2 contacts with SPDT configuration for versatile relay switching.
- Equipped with push-in terminal connections for easy installation.
- Compact DIN rail mount with dimensions 90mm width, 100mm height, and 17.5mm length.
- Supports switching voltage up to 250 V AC and contact current rated at 5 A.
- Operates in temperatures from -20°C to +60°C ensuring reliability in harsh environments.
- IP ratings of IP20 and IP30 provide protection against solid particle ingress.
Product Description
Omron H3DT-L1 24-240VAC/DC DIN Rail Timer Relay is a multifunctional timing device designed for industrial automation and control applications. It offers reliable timing control with a broad supply voltage range from 24 to 240 V AC/DC, making it adaptable to various power systems.
This timer relay features a 2-contact SPDT configuration enabling flexible switching operations and supports timing intervals from 0.1 seconds up to 1200 hours, catering to diverse operational requirements.
Its compact size (90mm width × 100mm height × 17.5mm length) and DIN rail mounting facilitate efficient panel integration and space saving. The relay uses push-in terminals for secure and fast wiring.
Designed to operate in environments with temperatures ranging between -20°C and +60°C, the H3DT series ensures stable performance under demanding conditions. Its IP20 and IP30 protection ratings shield against accidental contact and limited dust ingress.
The device complies with multiple international standards, including cULus (UL 508, CSA C22.2 No. 14), EN 61812-1, CCC, RDNV GL, IEC 60664-1 for overvoltage protection, and RoHS, assuring quality and safety.
Multi-function timing suitable for various industrial processes. Wide operating voltage range: 24 to 240 V AC/DC supply. 2 SPDT contacts rated for 5 A switching current at 250 V AC. Push-in terminal type for efficient installation.
Compact DIN rail mount design for control panels. Operating temperature from -20 °C to 60 °C. IP20 and IP30 rated protection. Certified to multiple global safety and quality standards.
Typical industrial applications of the Omron H3DT series include use in automation control systems, lighting control for delayed switching, machinery monitoring and control, and sequence control in processing equipment. Its multifunctionality and robust design make it suitable for various commercial and industrial electrical automation tasks.
Explore the vast range of DIN Rail Timer Relays and related control devices available to enhance your automation and control projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates on a supply voltage ranging from 24 V to 240 V AC/DC.
The relay supports a maximum switching voltage of 250 V AC and a contact current rated at 5 A.
This model has dimensions of 90mm in width, 100mm in height, and 17.5mm in length.
It offers a timing range from 0.1 seconds to 1200 hours, suitable for various operational requirements.
It is designed for DIN rail mounting, facilitating efficient integration into control panels.
It features push-in terminal connections for secure and fast wiring during installation.
It operates effectively in temperatures ranging from -20°C to +60°C.
This timer relay has IP20 and IP30 ratings, providing protection against solid particle ingress.
It features a 2-contact SPDT (Single Pole Double Throw) configuration for versatile relay switching.
It is suitable for industrial automation control systems, lighting control, machinery monitoring, and sequence control in processing equipment.
It complies with multiple international standards, including cULus, EN 61812-1, and RoHS, ensuring quality and safety.
It operates as a multifunction timer, allowing for diverse timing functions suitable for various industrial processes.
