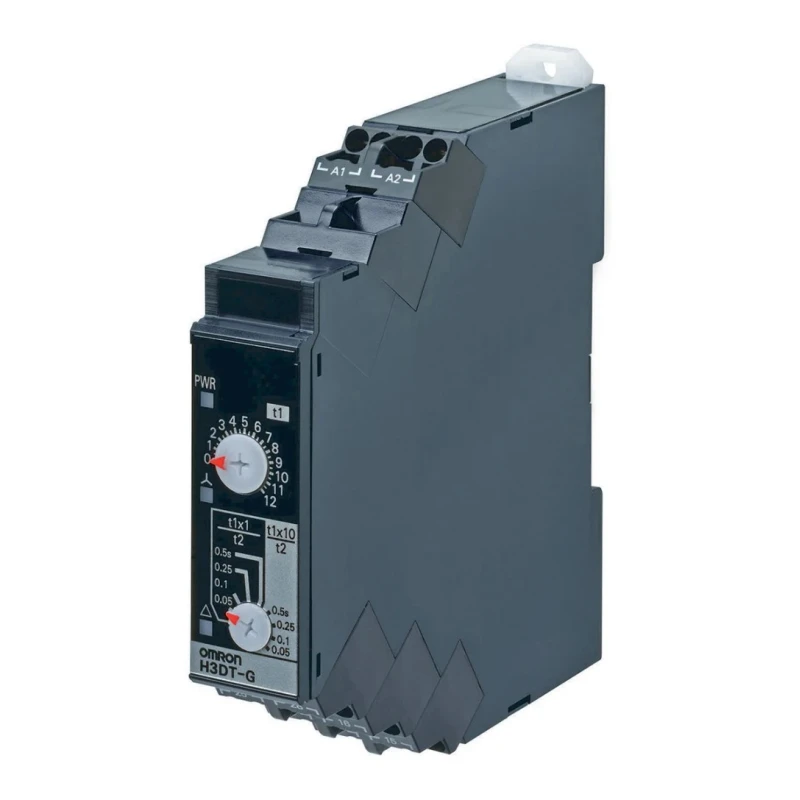

Omron DIN Rail Timer Relay 2-Contact SPDT Offset Double Ring End 24 to 240 V AC/DC 1 to 120 s Star-Delta H3DT

Omron H3DT DIN Rail Timer Relay model H3DT-G 24-240VAC/DC integrates a 2-contact SPDT switching mechanism designed for precise time-dependent control in industrial automation and electrical control panels. This timer relay uses offset double ring end functionality to provide an adjustable delay timing range from 1 to 120 seconds, making it adaptable for various process control requirements.

The device supports a wide operating voltage range of 24 to 240 volts, both AC and DC, ensuring compatibility with diverse power systems. It offers a robust contact current capacity of 5 amperes via a single changeover contact suitable for switching control circuits. The relay is mounted on standard DIN rails and incorporates screw terminals for secure and straightforward wiring connections.

The operating temperature spans from -20°C to 60°C, enabling dependable performance across typical industrial settings. IP20 and IP30 ingress protection ratings provide basic protection against solid objects and restricted access to live parts, suitable for enclosed panel installations. The compact form factor with dimensions 100 mm (height) x 90 mm (width) x 17.5 mm (length) supports efficient space utilization in control cabinets.

The product carries certifications and safety standards including CCC, LR, UL 508, CSA C22.2 No. 14, DNV GL, IEC 60664-1 4 kV/2, RoHS, and EN 61812-1, meeting stringent industrial quality and safety requirements. This timer relay is commonly applied for sequential motor start-up controls, timed lighting sequences in manufacturing or commercial facilities, pump cycling with delayed operation, and machine safety interlock delay functions.

Wide supply voltage range ensures flexible power compatibility. Reliable 5A single changeover contact for control operations. Precise delay control with adjustable 1 to 120 second timing. DIN rail mounting for secure and modular installation.

Robust operating temperature range suitable for industrial use. Ingress protection IP20 and IP30 for panel safety compliance. Certified to multiple international safety standards. Compact size ideal for space-constrained control panels.

Applications include motor control, lighting, pumps, and safety delays.

This Omron timer relay provides dependable control timing solutions for industrial, manufacturing, automation, HVAC, water treatment, and commercial electrical systems. Explore EnvMart's range of Timer Relays and control components for your automation needs.
