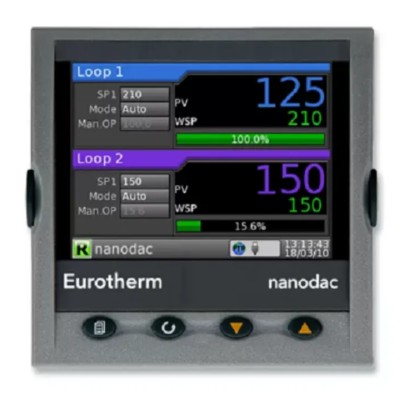

Eurotherm 3-Channel Graphical Graphic Recorder Resistance Current Temperature Millivolt Voltage NANODAC/VH/C/X/LRD/B

Eurotherm NANODAC/VH/C/X/LRD/B is a new 3-Channel Graphical Graphic Recorder designed for precise measurement of resistance, current, temperature, millivolt, and voltage. It operates at 100-230V AC ±15% with frequency range 48-62Hz, featuring 2 control loops plus multiple output options including logic, relay, and analog outputs.

This recorder is equipped with a 3.5-inch color TFT display offering exceptionally clear visualization of process parameters with diverse, configurable views such as horizontal and vertical trends, bar graphs, numeric displays, alarm panel, alarm status, and control loops. The unit supports tamper-resistant data recording trusted by auditors, ensuring data integrity and audit compliance.

It has a high accuracy universal input and sample data recording rate of 8Hz (125ms), storing up to 50 MB of data. The recorder supports USB removable data storage and offers multi-language support, fitting compactly into industrial installations with dimensions 96 mm height, 90 mm width, and 96 mm length, weighing 440 grams.

The product complies with international standards including CE, BS EN 61326, UL, and EU directives. It is suitable for a wide range of applications across industrial, laboratory, HVAC, manufacturing, and water treatment sectors where accurate process logging and control are critical.

3.5-inch TFT display for detailed process visualization. Multiple configurable views for optimal application fit. Tamper-resistant data recording methodology. USB removable data storage capability. High accuracy universal inputs with 8Hz sample rate.

Compact size and lightweight design. Compliance with CE, BS EN 61326, UL, and EU standards.

This Eurotherm graphical recorder is a reliable instrument for precise data acquisition and logging of electrical and temperature parameters in demanding industrial environments. For more industrial measurement and test instruments from Eurotherm and other brands, explore EnvMart's extensive catalog.
