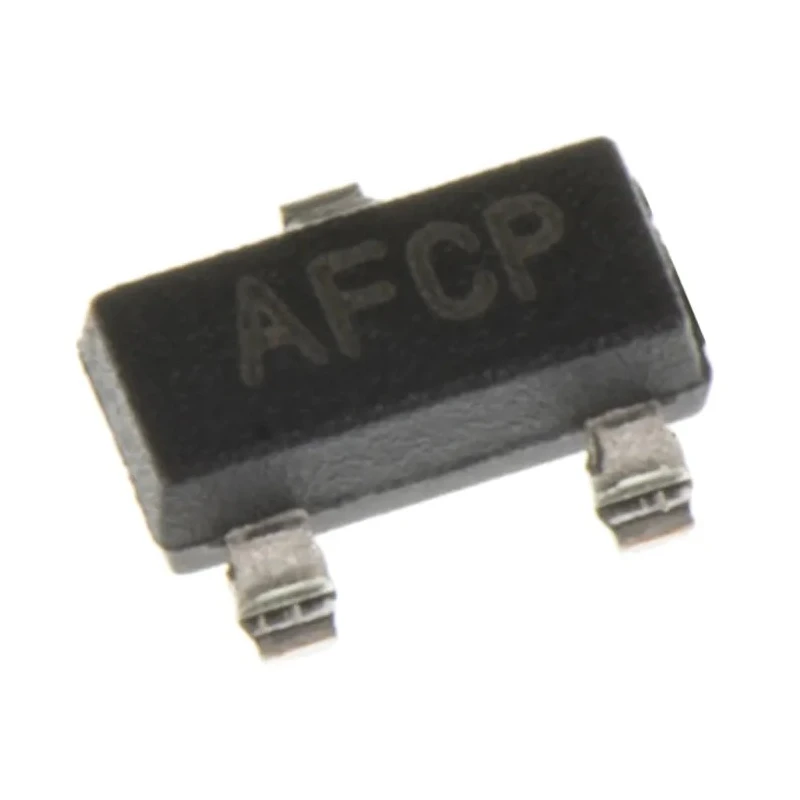

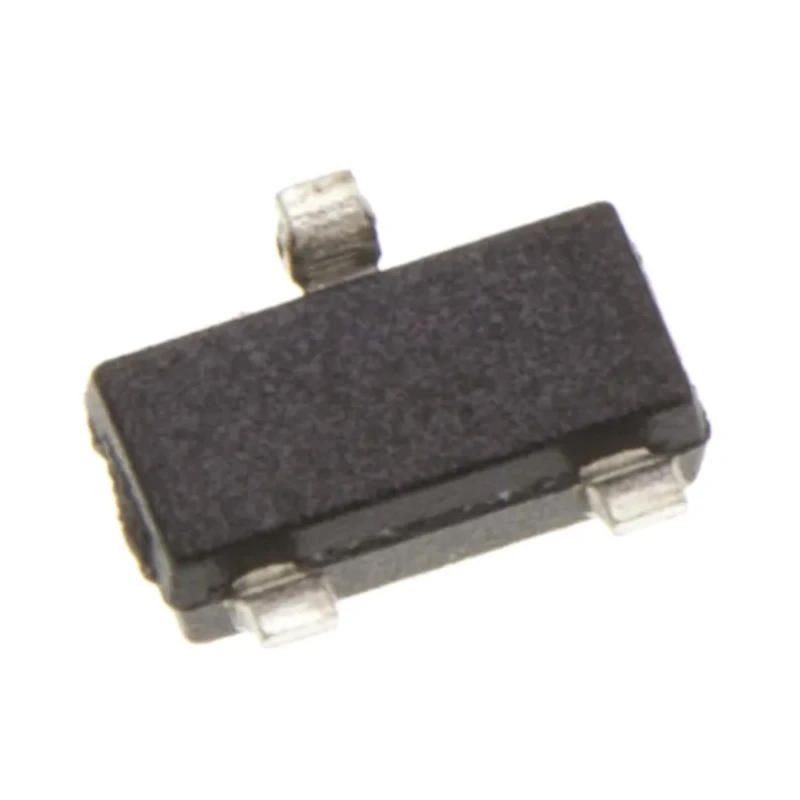

Microchip Voltage Output Voltage Temperature Sensor Surface Mount Analogue ±2°C 3-Pin SOT-23 MCP9700AT
Specifications
| Country of Origin | Thailand |
|---|---|
| Accuracy | ±2°C |
| Brand | Microchip |
| Height | 1.02mm |
| Length | 3.05mm |
| Model | MCP9700AT |
| Width | 1.4mm |
| Mount Type | Surface |
| Output type | Voltage |
| Series | MCP9700AT |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.3V |
| Sensor Gain | 10mV/°C |
Key Features
- Operates reliably between -40°C and 125°C temperature range.
- Minimum supply voltage of 2.3V and maximum supply voltage of 5.5V ensures wide compatibility.
- Sensor gain is 10mV per degree Celsius for direct proportional output voltage.
- Compact dimensions of 3.05mm length, 1.4mm width, and 1.02mm height fit space-constrained PCB designs.
- Resistant to parasitic capacitance and capable of driving large capacitive loads for stable readings.
- Ideal for temperature monitoring in office equipment, home appliances, and battery packs.
- Provides analogue output voltage representing temperature allowing simple interface with microcontrollers and data acquisition systems.
Product Description
Microchip MCP9700AT Series voltage output voltage temperature sensor is designed for surface mount applications, providing accurate analogue temperature sensing suitable for industrial and consumer electronics.
This Temperature Sensor operates within a broad temperature range of -40°C to 125°C, delivering an accuracy of ±2°C. It utilizes a 3-Pin SOT-23 package that is compact and ideal for space-sensitive PCB layouts, measuring 3.05mm in length, 1.4mm in width, and 1.02mm in height.
The MCP9700AT sensor offers a voltage output proportional to temperature changes, featuring a sensor gain of 10mV/°C. The device operates on supply voltages from 2.3V up to a maximum of 5.5V, making it versatile for various power environments.
Key advantages include resistance to parasitic capacitance and capability to drive large capacitive loads, which ensures stable and reliable temperature measurement in diverse applications.
Common industrial and commercial applications include temperature monitoring in office equipment, home appliances, entertainment systems, hard disk drives, and battery pack management systems.
Operates over temperature range from -40°C to 125°C with precision accuracy. Analogue voltage output enables straightforward integration with electronic control and measurement systems. Compact surface mount SOT-23 package facilitates dense PCB layouts.
Wide supply voltage range enhances compatibility across multiple platforms. Robust against parasitic capacitance and suitable for driving capacitive loads.
Microchip's MCP9700AT sensor series provides a reliable and precise temperature sensing solution suitable for both industrial and consumer electronic manufacturing. Explore EnvMart's comprehensive selection of temperature and humidity sensor ICs for all your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably between -40°C and 125°C, providing a wide temperature monitoring range.
The sensor delivers an accuracy of ±2°C, ensuring reliable temperature readings within its specified range.
It operates on a minimum supply voltage of 2.3V and a maximum of 5.5V, making it compatible with various power environments.
This unit provides an analogue voltage output that is proportional to temperature changes, with a sensor gain of 10mV per degree Celsius.
The sensor has compact dimensions of 3.05mm in length, 1.4mm in width, and 1.02mm in height, suitable for space-constrained PCB designs.
It is available in a 3-Pin SOT-23 surface mount package, which is ideal for dense PCB layouts.
Common applications include temperature monitoring in office equipment, home appliances, entertainment systems, and battery pack management systems.
Yes, it is designed to be resistant to parasitic capacitance and can drive large capacitive loads, ensuring stable readings.
This model utilizes an analogue interface type, allowing for straightforward integration with microcontrollers and data acquisition systems.
The sensor features a pin count of 3, which is standard for its SOT-23 package configuration.
The sensor gain of 10mV/°C allows for a direct proportional output voltage to temperature changes, facilitating easy interpretation of temperature data.
The country of origin for this model is Thailand.
