Surface Module Temperature Sensor MSPT-100
Specifications
| Accuracy | + - 0.5 degree C |
|---|---|
| Temperature range | 0 to 100 degree C |
| Cable Length | 3m |
| Cable | PTFE insulated| twisted pair lead |
| Sensor Type | RTD PT100 |
| Supply | 12-24Vdc |
| Cable diameter | 7/0.1mm |
| Number of core | 3 core |
| Sensor housing | Silicon Rubber Patch |
Key Features
- Fast, Stable and accurate
- IP65 enclosure Excellent long term stabilit
Product Description

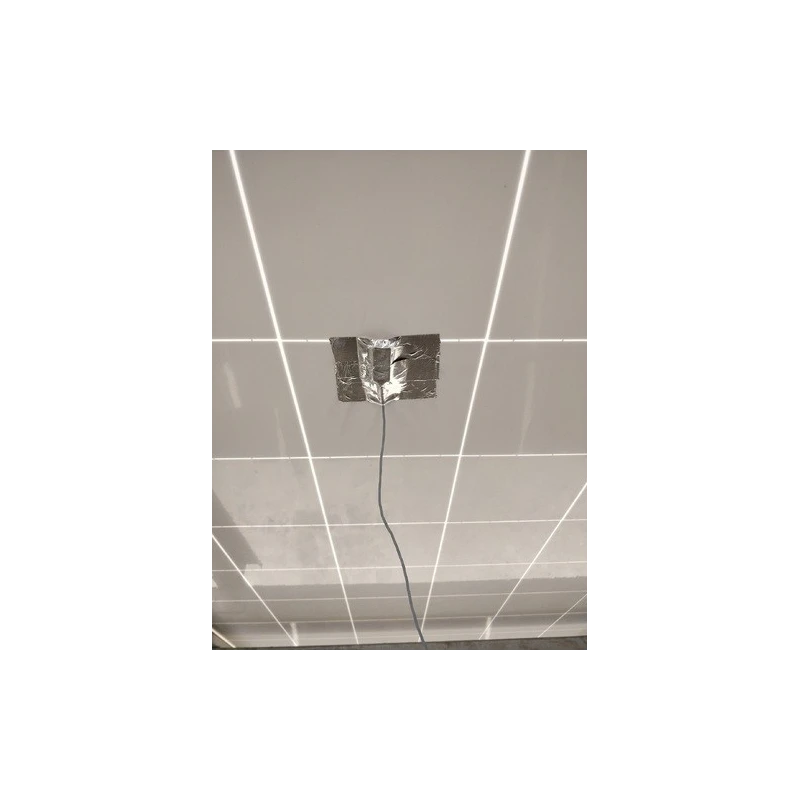

This sensor is designed to attach directly to any solar panel. When placed on the center back side of the panel, it accurately measures the temperature of the panel.Select a PV module that remains un-shaded throughout the day. Prior to installation of the PV temperature sensor onto the PV panel, the installation area of the panel back should be thoroughly cleaned until it is greaseless, dry, and dust-free. This cleaning will ensure a good bond between sensor and panel and allow for accurate panel temperature readings. Affix the module temperature sensor to the panel back using the thermally conductive adhesive provided. Press the sensor firmly against the surface. Do not attempt to extend or shorten the pre-assembled 2m cable. Tie the sensor cable off in a way that does not pull on the sensor.
- Onsite two point calibration
- Loop powered
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a temperature measurement range of 0 to 100 degrees Celsius.
The sensor provides an accuracy of ± 0.5 degrees Celsius.
It utilizes an RTD PT100 sensor type for temperature measurement.
The required supply voltage for this model is between 12 to 24 Vdc.
It comes with a 3-meter long cable.
The sensor housing is made from a silicon rubber patch.
The cable is PTFE insulated with a twisted pair lead.
The sensor should be affixed to the center back side of the panel using the provided thermally conductive adhesive after cleaning the surface thoroughly.
The pre-assembled 2-meter cable should not be extended or shortened.
The cable diameter is 7/0.1mm.
It features onsite two-point calibration for accurate readings.
The installation area of the panel back should be cleaned until it is greaseless, dry, and dust-free to ensure a good bond.
