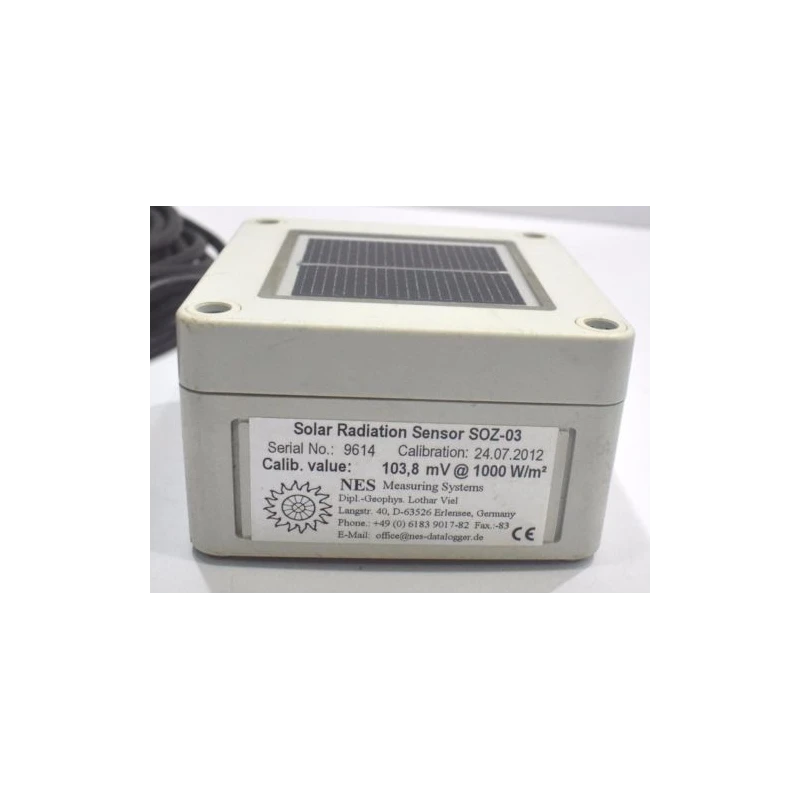

Solar Radiation Sensor Silicon Pyranometer SOZ 03
Specifications
| Range | 0 to 1500 W/m2 |
|---|---|
| Brand | NES |
| Material | Silicon Sensor |
| Color | White |
| Storage Temperature | -45 to +70 C |
| Cell Type | Mono Crystalline Silicon Cell |
| Housing Material | UV-resistant PVC plastic |
Key Features
- Mono Crystalline or polycrystalline Silicon Solar Cell (50 x 50 mm²) laminated under special Solar Glass with excellent UV resistance and long-term stability
- Plain integration into the top cover of the box
- Advanced weatherproof junction box made of UV resistant material with cable gland and screw-less terminal for the connection of the measuring cable
- High precision shunt resistor directly soldered to the terminals of the cell
- Linear output signal in the range 0…1500 W/m²
Product Description

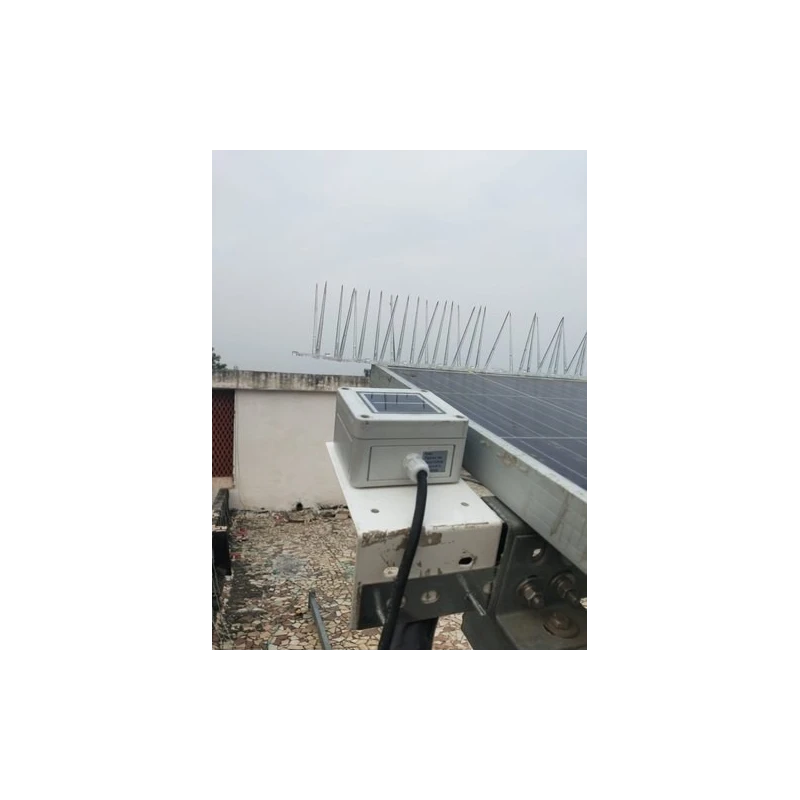

Pyranometers are devices used to measure the amount of light energy that reaches the ground surface. They can be used to determine how much sunlight is reaching the earth's surface. This information can then be used to help growers understand what kind of lighting they need to provide their plants. A pyranometer measures the amount of radiation that passes through the atmosphere and reaches the ground.
- Individual calibration of each sensors in the natural sunlight close to AM 1,5 spectrum by means of a compatible calibrated reference cell
- Accuracy of monthly sums compared to a W.M.O. class 1 Pyranometer (e.g. CMP 11) according to ISO 9060: better ±5 %
- Very small drift of <0.3 / year (experience since 1989)
- Integrated signal amplifier with output signal 4…20 mA Loop powered 2wire or 0-5v
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement range of this pyranometer is from 0 to 1500 W/m².
It utilizes a Mono Crystalline Silicon Cell as its sensor type.
The pyranometer has an integrated signal amplifier that provides an output signal of 4 to 20 mA, or 0-5V.
The sensor is made of silicon, while the housing is constructed from UV-resistant PVC plastic.
The accuracy of monthly sums is better than ±5% compared to a W.M.O. class 1 Pyranometer according to ISO 9060.
The storage temperature range for this pyranometer is -45 to +70 °C.
It features a weatherproof junction box with a cable gland and screw-less terminal for easy connection of the measuring cable.
The drift rate is very small, at less than 0.3% per year, based on experience since 1989.
Yes, each sensor is individually calibrated in natural sunlight close to the AM 1.5 spectrum using a compatible calibrated reference cell.
The housing of this pyranometer is white in color.
