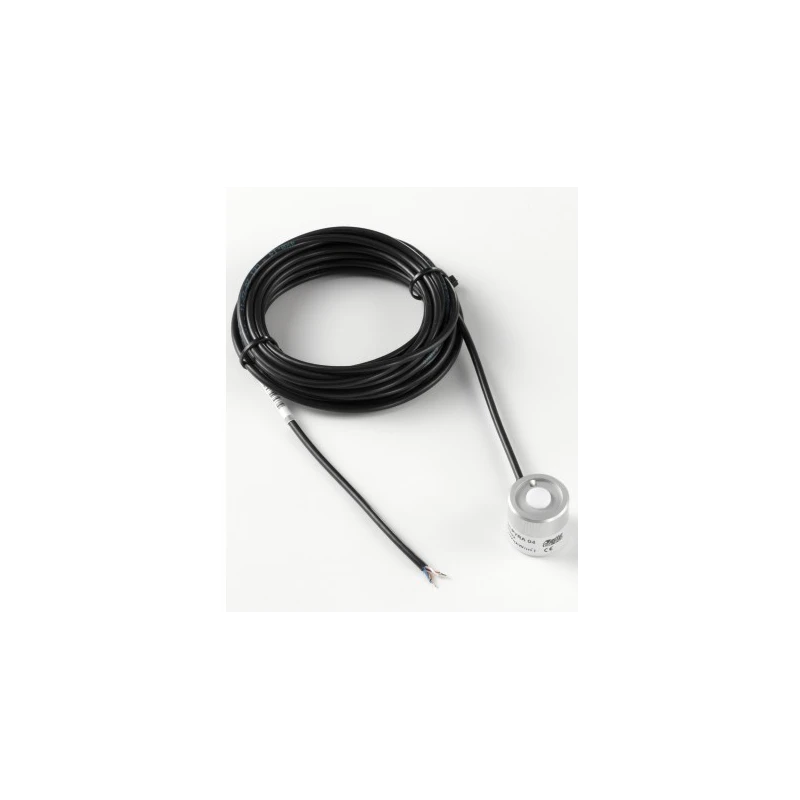

Silicon Pyranometer With Protection Degree IP67 LPSILICON-PYRA04

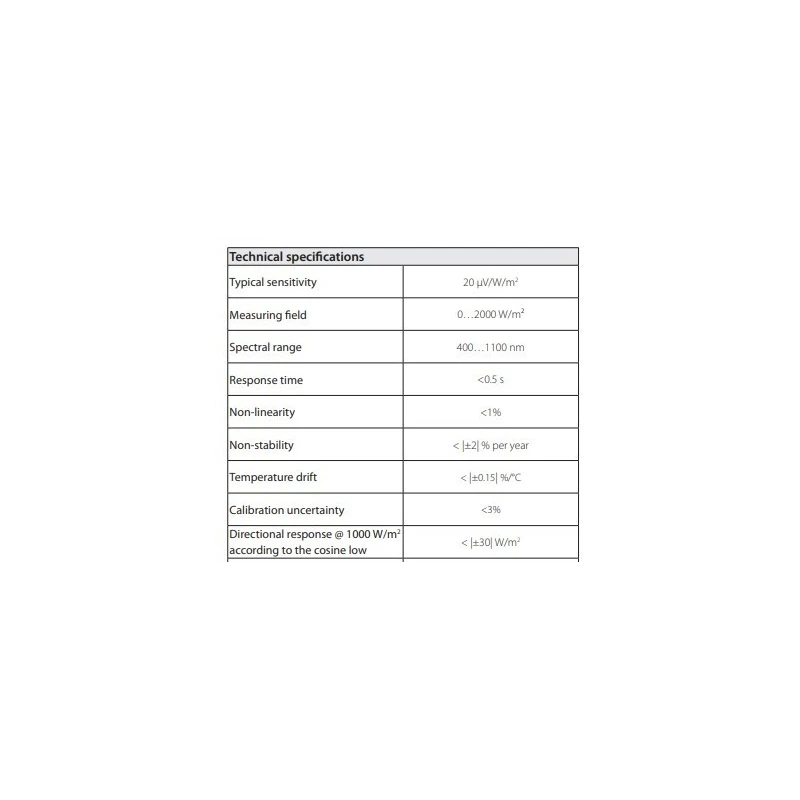

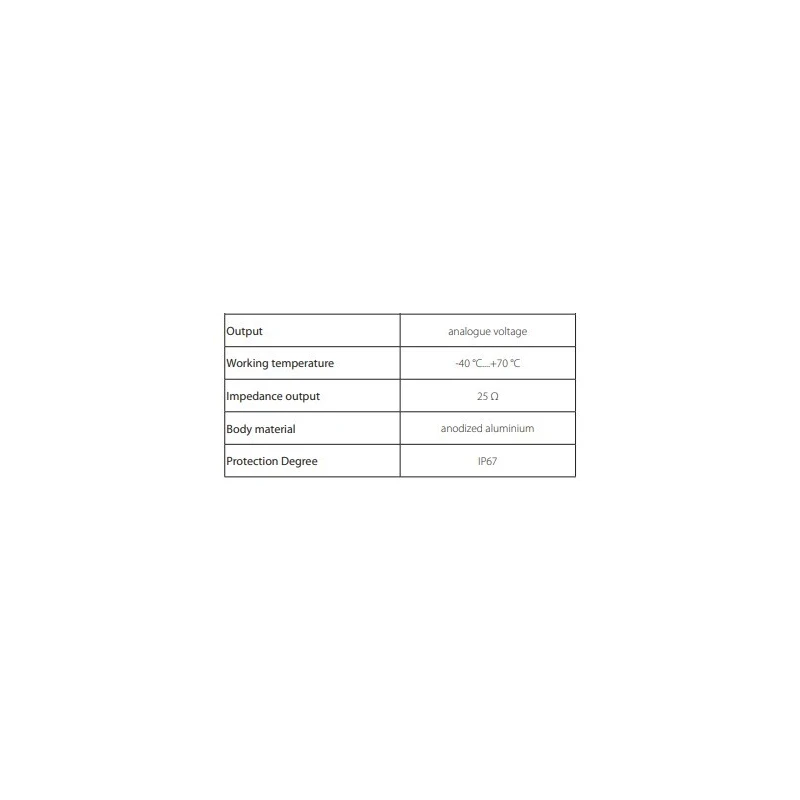

Specifications
| Body Material | Anodized aluminium |
|---|---|
| Response time | Less than 0.5 s |
| Protection Degree | IP67 |
| Typical Sensitivity | 20 V/W/m2 |
| Measuring field | 0 To 2000 W/m2 |
Key Features
- Easy to Set Up And Quick To Install
- Accurate And Reliable System
Product Description
Silicon Pyranometer With Protection Degree IP67, LPSILICON-PYRA04 measures the global solar irradiance(W/m2) by using a Class C ISO 9060:2018 silicon photodiode.The special geometry and the diffuser allow to have a pyranometer field ofview of 180 degrees according to cosine law.The pyranometer is suitable for the measurement of natural sunlight. Underconditions of overcast sky or measures of reflected light is recommendedto use a thermopile pyranometer (model LPPYRA03 or LPPYRA02). it can be used in measurements ofGLOBAL SOLAR IRRADIANCE in the field of renewable energies such assolar thermal and solar photovoltaic.
- Great Flexibility
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures global solar irradiance in the range of 0 to 2000 W/m².
The LPSILICON-PYRA04 has a protection degree of IP67, making it suitable for outdoor use.
The typical sensitivity of this pyranometer is 20 V/W/m².
The response time of this silicon pyranometer is less than 0.5 seconds.
The body of this model is made from anodized aluminium.
It is suitable for measuring global solar irradiance in the fields of solar thermal and solar photovoltaic applications.
This pyranometer has a field of view of 180 degrees according to cosine law.
Under conditions of overcast sky or for measurements of reflected light, it is recommended to use a thermopile pyranometer instead.
Yes, the silicon pyranometer is designed to be easy to set up and quick to install.
The primary function of this model is to measure global solar irradiance using a Class C ISO 9060:2018 silicon photodiode.
It is recommended for use in renewable energy applications, particularly in solar energy measurement.
The product description does not specify any unique installation requirements beyond general setup instructions.
