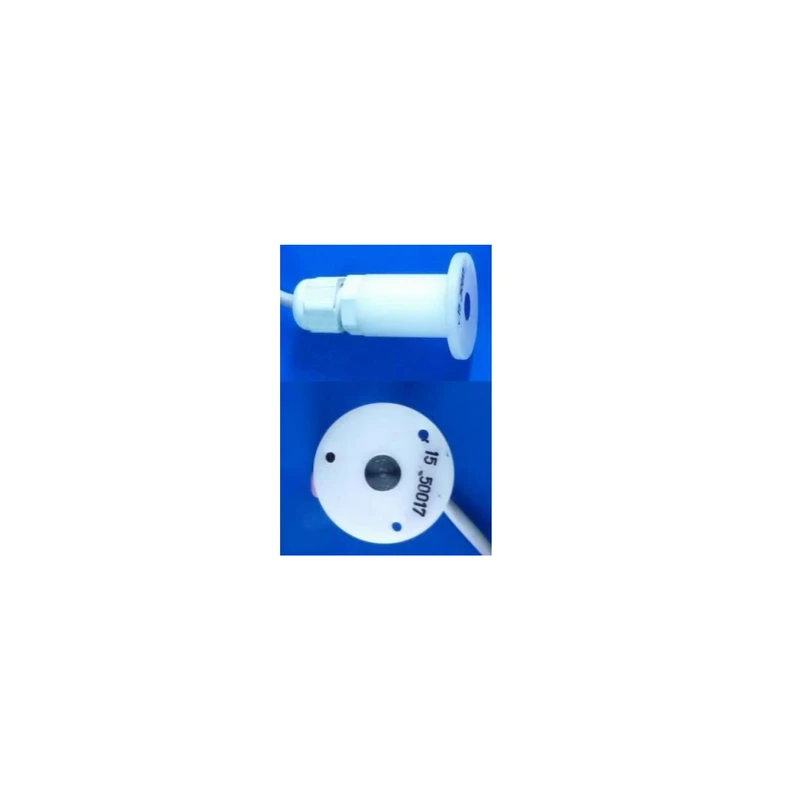

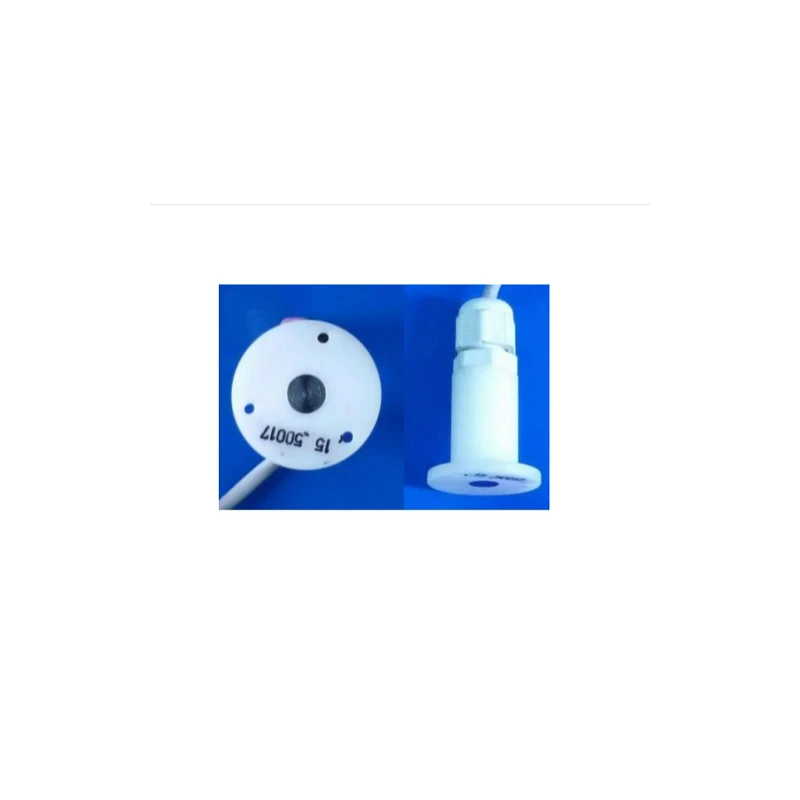

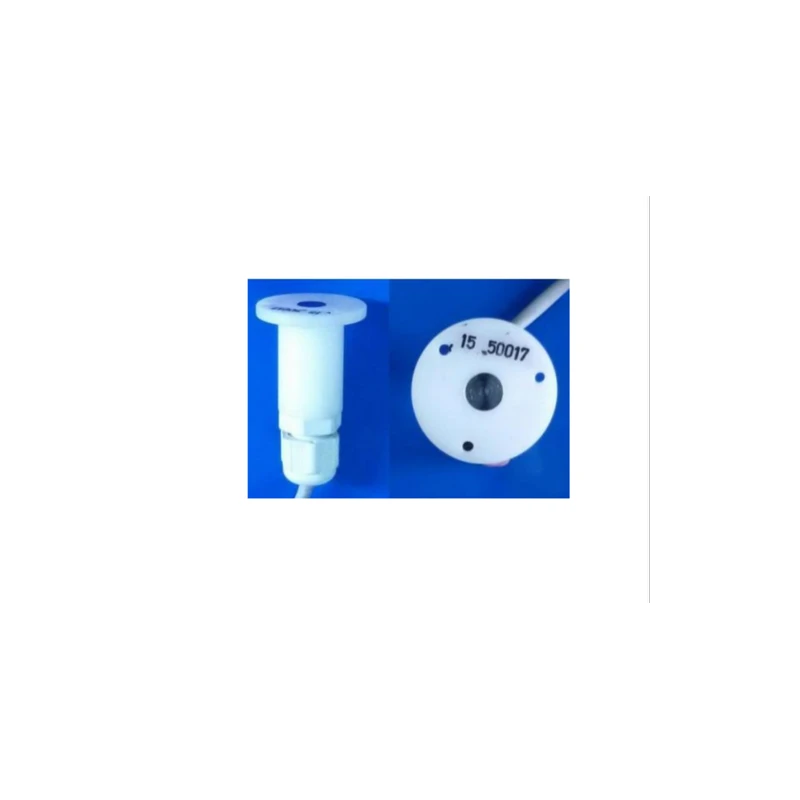

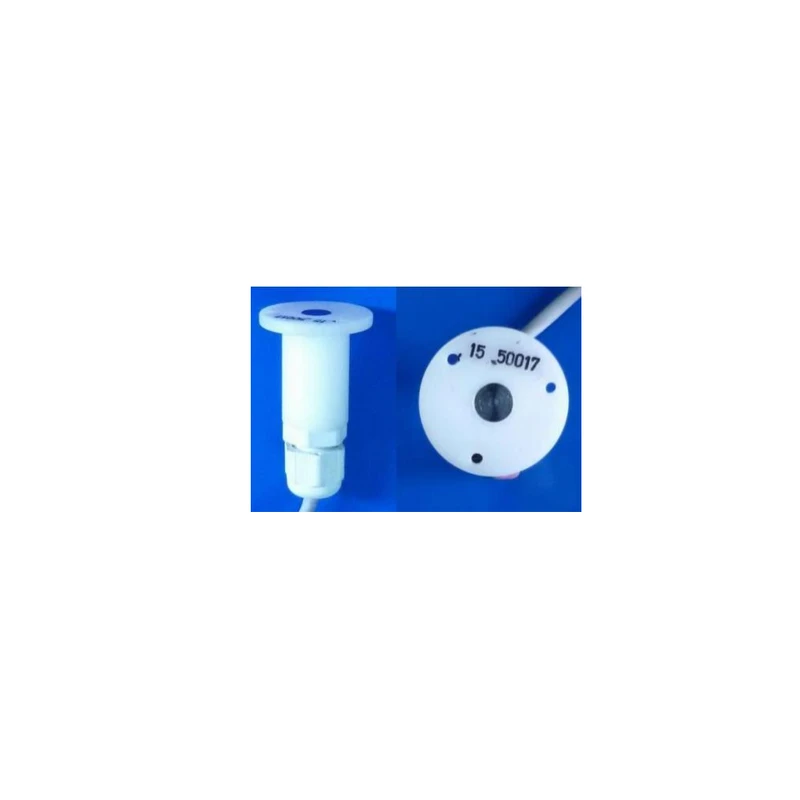

Dynalabs Module Surface Temperature Sensor DWMT8104
Specifications
| Accuracy | + 0.3 Deg C |
|---|---|
| Measuring range | - 40 to 100 deg C |
| Output | - 0 to 5 VDC |
| Brand | Dynalabs |
| Model | DWMT 8104 |
| Sensing element | PT1000 RTD |
| Mount | Flanged plastic weather proof plastic enclosure |
Key Features
- Fast, Stable and accurate
- IP65 enclosure Excellent long term stability Onsite two point calibration
- Loop powered Calibration
- If using Modbus sensor then the PV Module Temperature Sensor is factory calibrated
- If using analog output senor then use the following info to calibrate: o Output - 0 to 5 VDC (-40 to 100 deg C)
Product Description
The module temperature sensor is used by PV plant operators to know the temperature of the modules installed in the array. The module temperature sensor converts this reading into a voltage signal. This signal is sent back to the monitoring device. As the system operator its important to know the systems performance. The module temperature sensor will help to enhance kWh performance by ensuring reliable access to the all necessary data.
- If the cable length is insufficient for the installation, additional cable can be added to the existing cable. If this is done, an accuracy de-rating factor must be added to the overall temperature accuracy of this sensor.
- Output: A: Resistance B: 0-5V C: 4-20ma D: Modbus RTU
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measuring range of this model is from -40 to 100 degrees Celsius.
It provides several output options, including 0 to 5 VDC, 4-20 mA, and Modbus RTU.
The accuracy of this sensor is ±0.3 degrees Celsius.
The sensing element used in the DWMT8104 is a PT1000 RTD.
This model features an IP65 enclosure, making it suitable for various environmental conditions.
It is designed with a flanged plastic weatherproof enclosure for mounting.
Yes, additional cable can be added if the existing cable length is insufficient, but this may affect the overall temperature accuracy.
The available output configurations include resistance, 0-5 VDC, 4-20 mA, and Modbus RTU.
The accuracy de-rating factor must be considered when additional cable is added to the installation, as it can impact the sensor's overall temperature accuracy.
The sensor is designed for excellent long-term stability, ensuring reliable performance over time.
